10 Structure, function and maintenance standard SEN03770-01
PC130-8
5

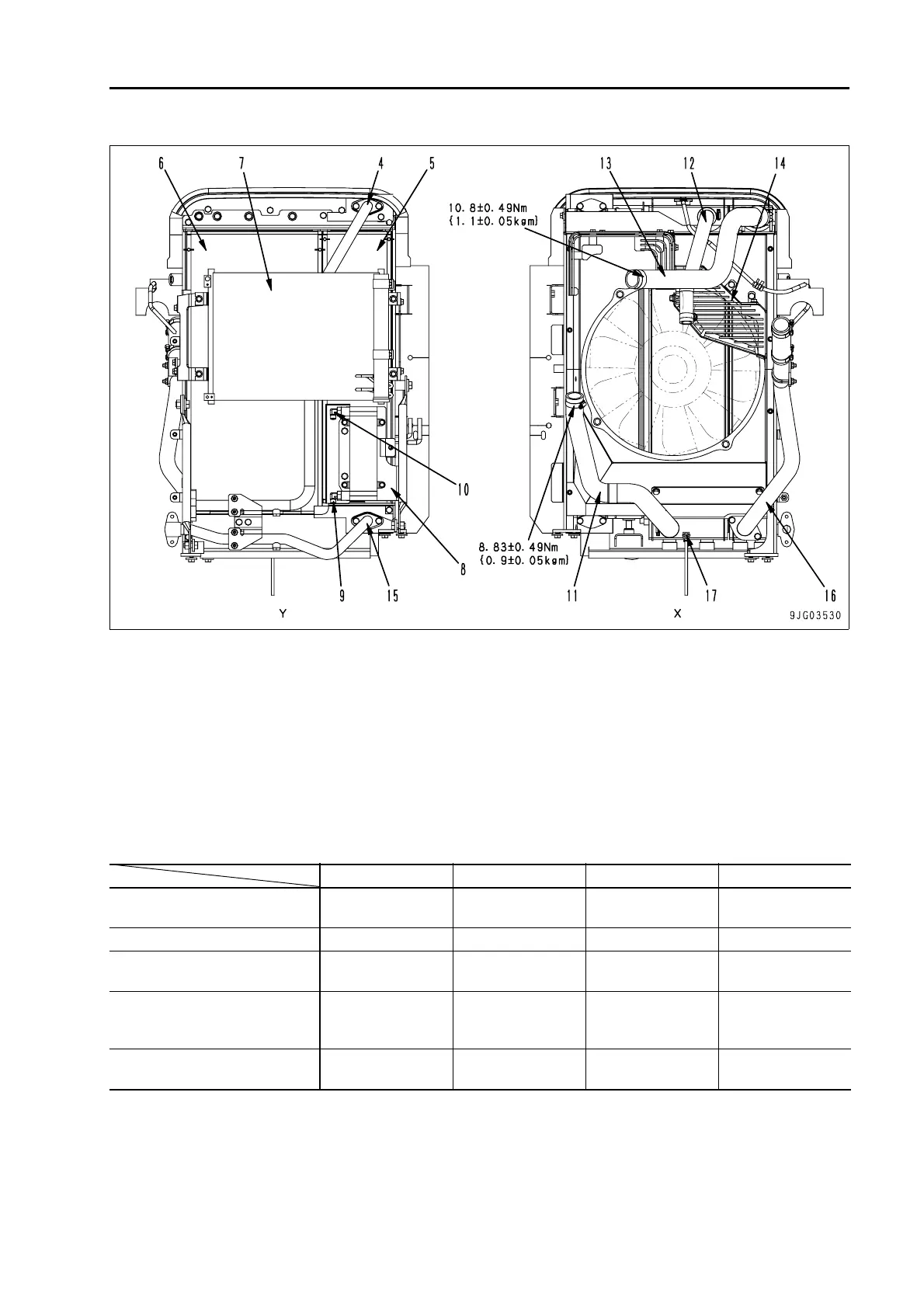

1. Radiator cap
2. Shroud
3. Reservoir tank
4. Oil cooler outlet
5. Oil cooler
6. Aftercooler
7. Radiator
8. Fuel cooler
9. Fuel cooler outlet
10. Fuel cooler inlet
11. Radiator outlet hose
12. Radiator inlet hose
13. Aftercooler outlet hose
14. Fan guard
15. Oil cooler inlet
16. Aftercooler inlet hose
17. Drain cock
Specifications
Radiator Oil cooler Aftercooler Fuel cooler
Core type
4-array aluminum
mesh core
CF40
Aluminum mesh
core
Drawn cup
Fine pitch (mm) 3.5/2 3.5/2 4.0/2 4.0/2
Total heat dissipation surface
(m²)
27.82
12.96
(6.48 x 2)
8.79 0.59
Pressure valve cracking
pressure
(kPa{kg/cm²})
49.0 ± 14.7
{0.5 ± 0.15}
———
Vacuum valve cracking pressure
(kPa{kg/cm²})
-4.9 – 0
{-0.05 – 0}
———
