Komatsu PC130-8 User Manual

SEN04127-02 50 Disassembly and assembly
30 PC130-8

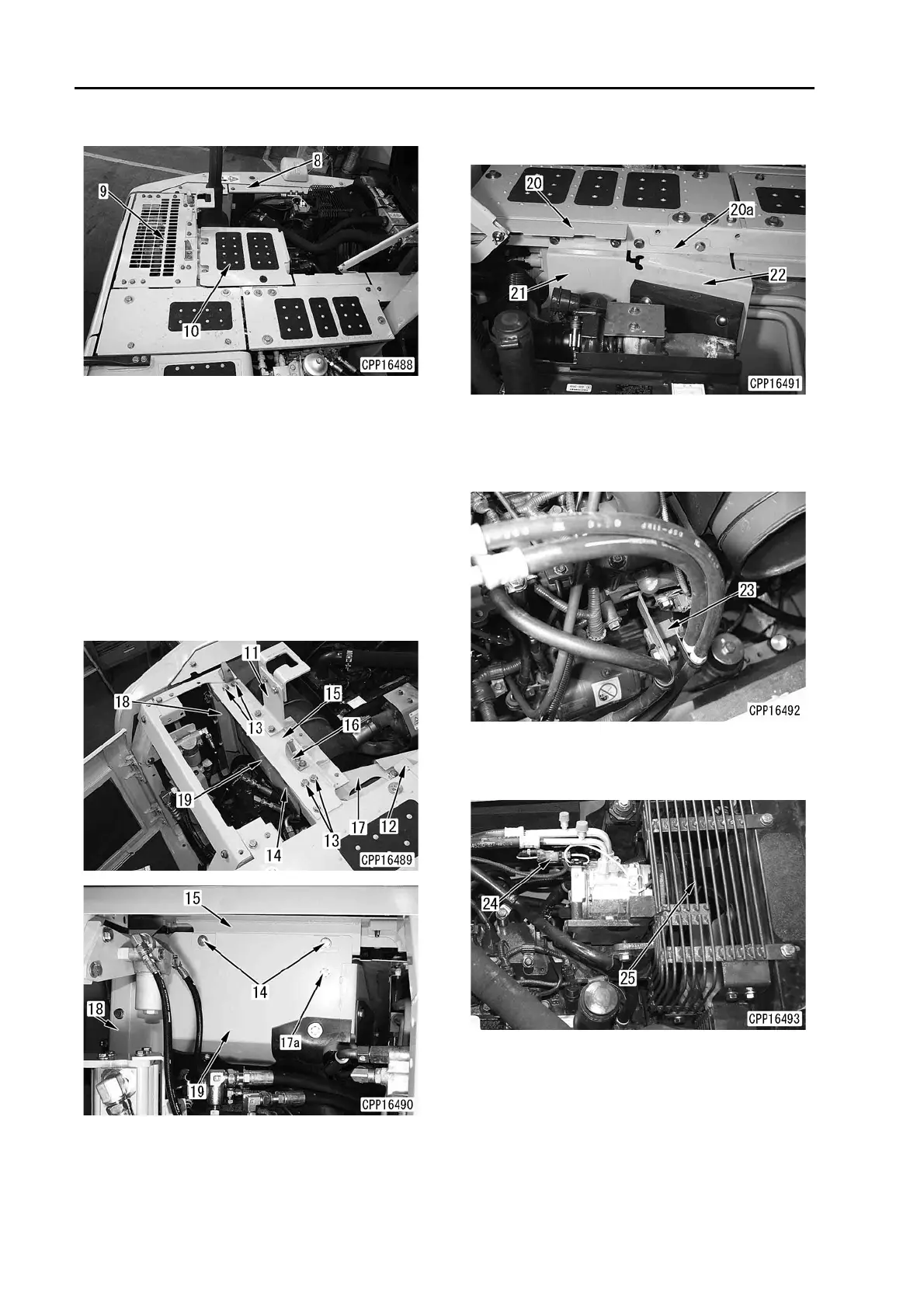

4. Remove covers (8) – (10).
5. Remove bracket assembly (11).
6. Remove bracket (12).
7. Remove 4 upper mounting bolts (13) and 2
partition plate mounting bolts (14) and remove
frame (15) and bracket (16) together.
8. Remove side covers (17) and (18).
a Remove mounting bolt (17a) of side cover
(17), too.
9. Remove partition plate (19).
10. Remove brackets (20) and (20a) and partition
plates (21) and (22).
11. Disconnect the air conditioner compressor
according to the following procedure.
1) Disconnect air conditioner hose clamp
(23).
2) Disconnect wiring connector AC02 (24).
3) Remove air conditioner compressor belt
protective cover (25).
