2.

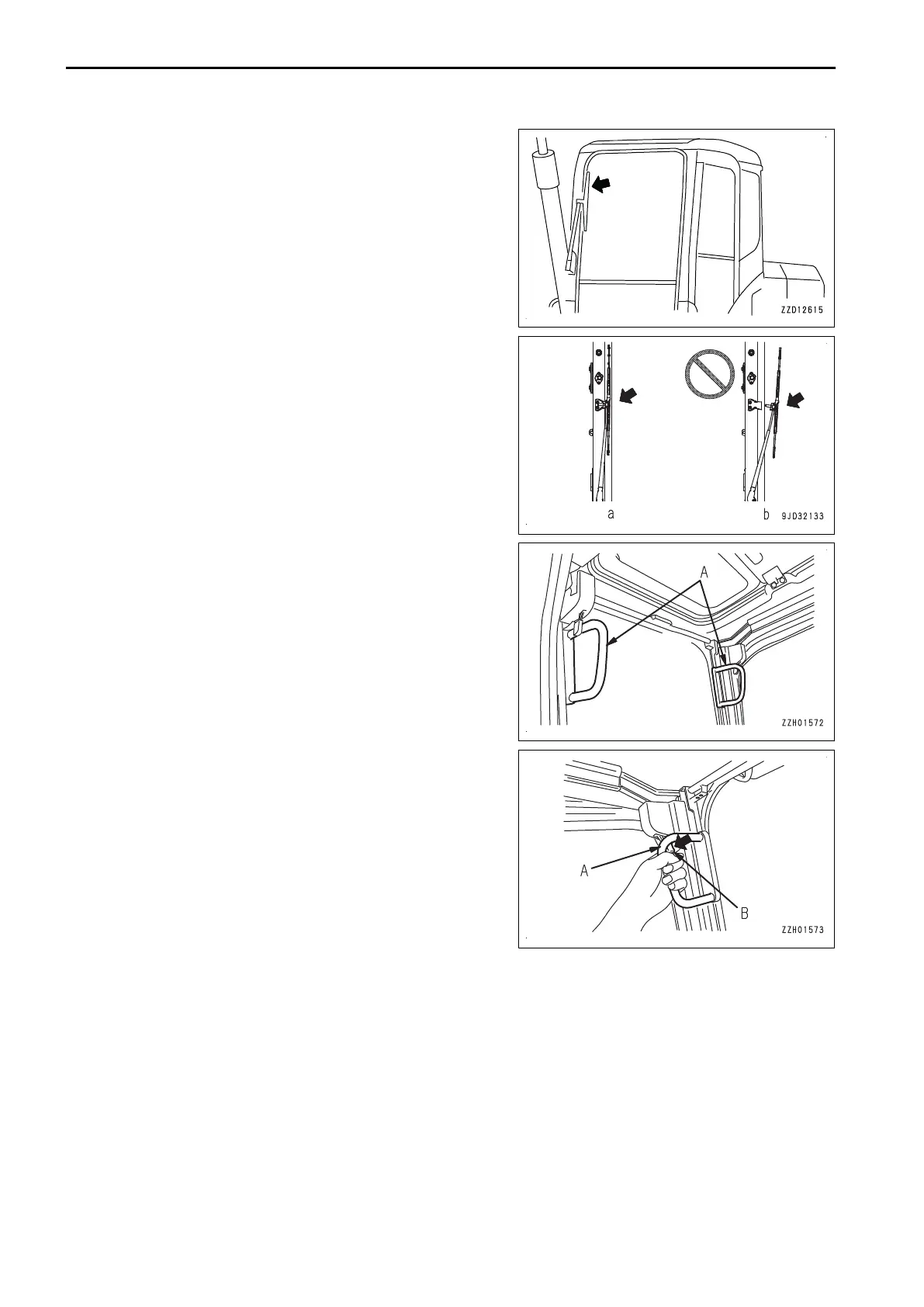

Check that the wiper blade is stowed in the right stay.
If the wiper blade is stowed in wrong stowing position (b),
lift it to move to the correct stowing position (a), or ask
your Komatsu distributor for repair.
(a) Correct stowing position
The wiper blade is on the cab.
(b) Wrong stowing position
The wiper blade is on the glass.
3.
Hold handles (A) (2 places) on the right and left top sides
of the front window, and pull levers (B) (2 places) to re-
lease the locks at the top of the front window. The top of
the front window will come out.
EXPLANATION OF COMPONENTS OPERATION
3-100
