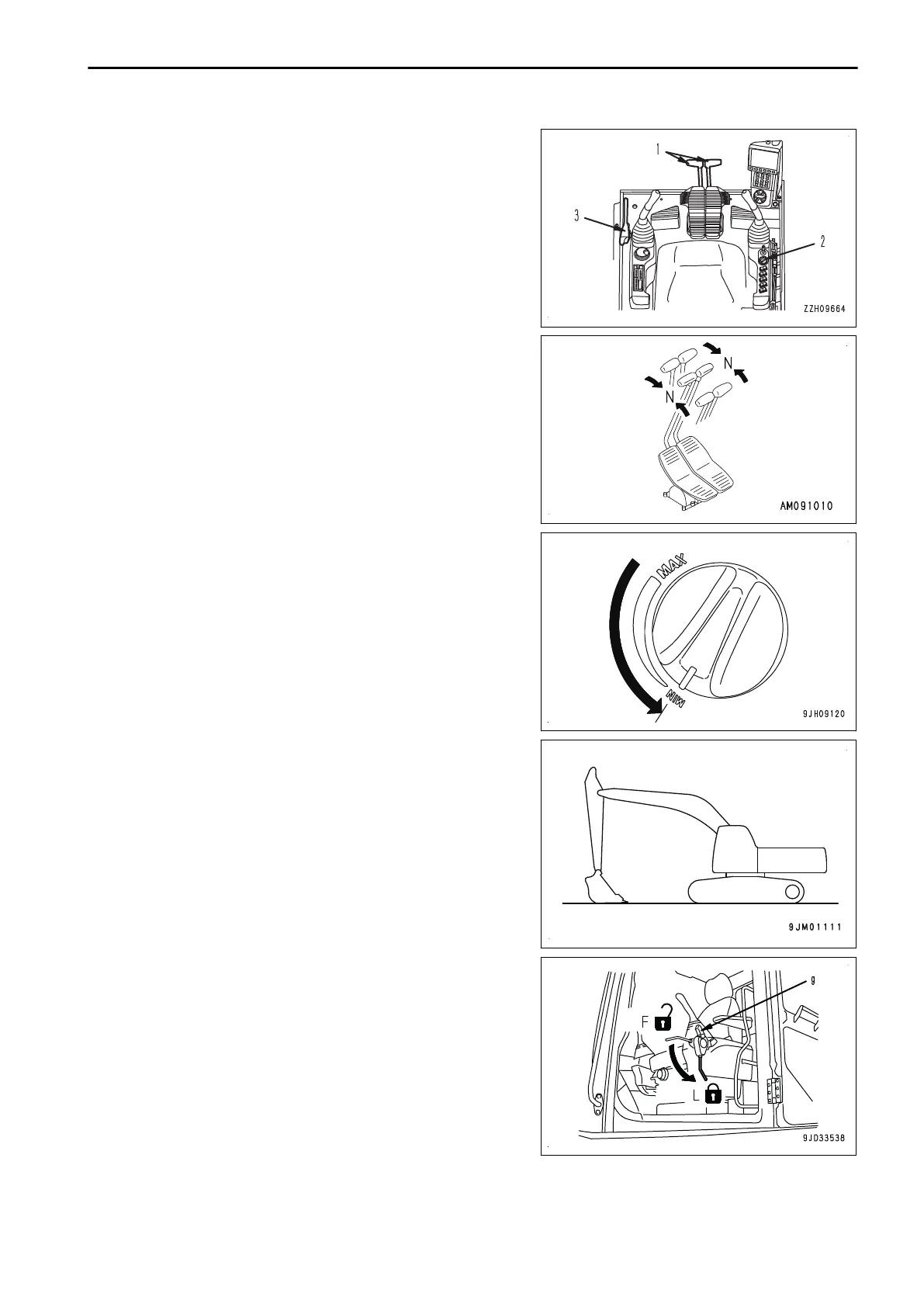

1.
Put right and left travel levers (1) in NEUTRAL position.
The machine stops.
2.
T
urn
fuel
control
dial
(2)
to
Low
idle
(MIN)
position
and
lower the engine speed.
3.
Make
the
undercarriage
and
upper
structure
point
to
the
same
direction,
and
lower
the
bucket
to
the
ground
with
its
bottom face horizontal.
4.
Operate the
control grip
(g) of
the lock
lever (3)
to set
it se-
curely to LOCK position (L).
