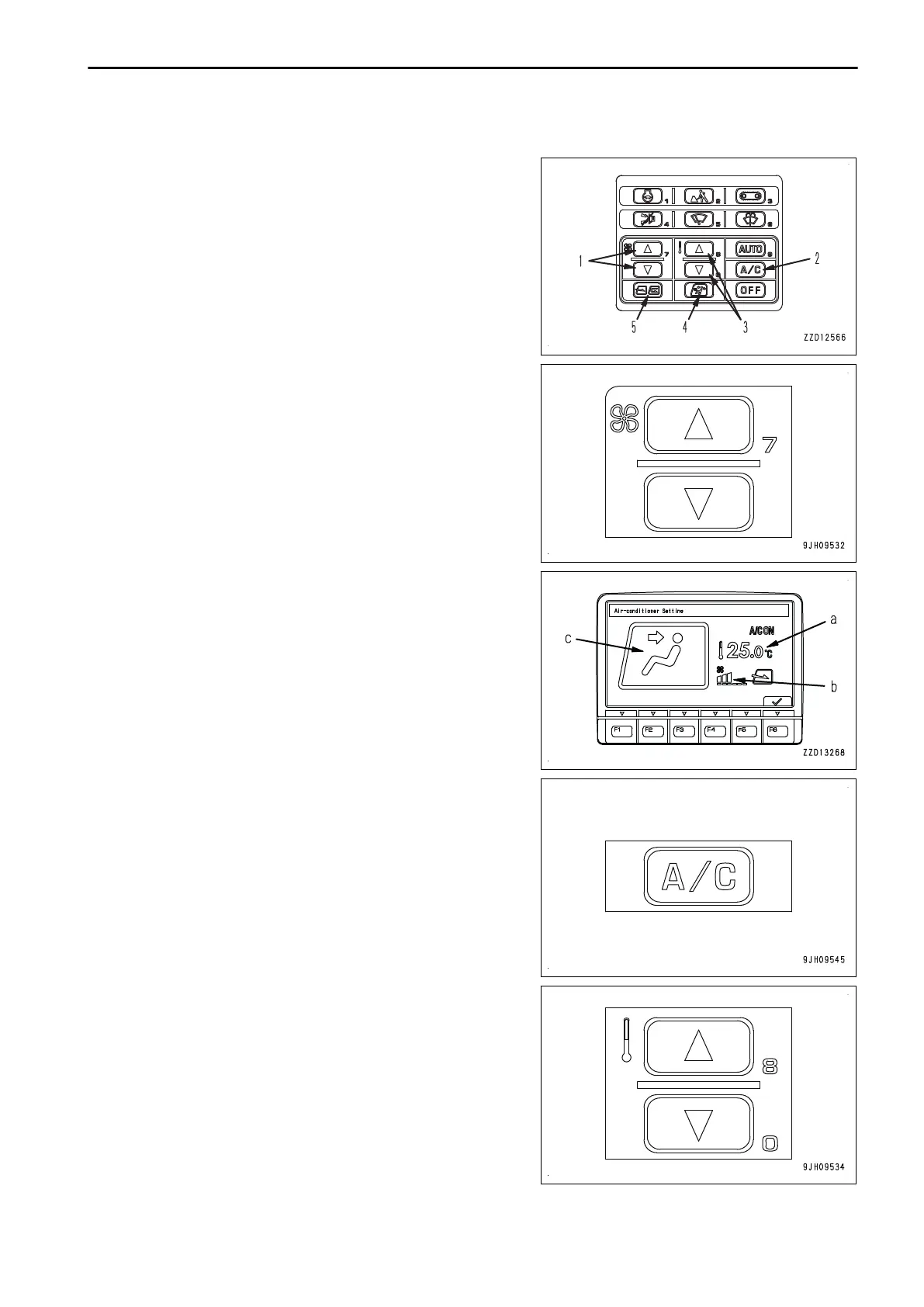

METHOD FOR MANUAL OPERA
TION
1.
Press fan switch (1) and adjust the air flow
.
When doing this,
check that
temperature setting
(a) and
air
flow (b) are displayed on the monitor
.
2.
T
urn air conditioner switch (2) ON.
3.
Use
temperature
control
switch
(3)
to
set
to
the
desired
temperature.
OPERA
TION
HANDLE AIR CONDITIONER
3-229
302
304
