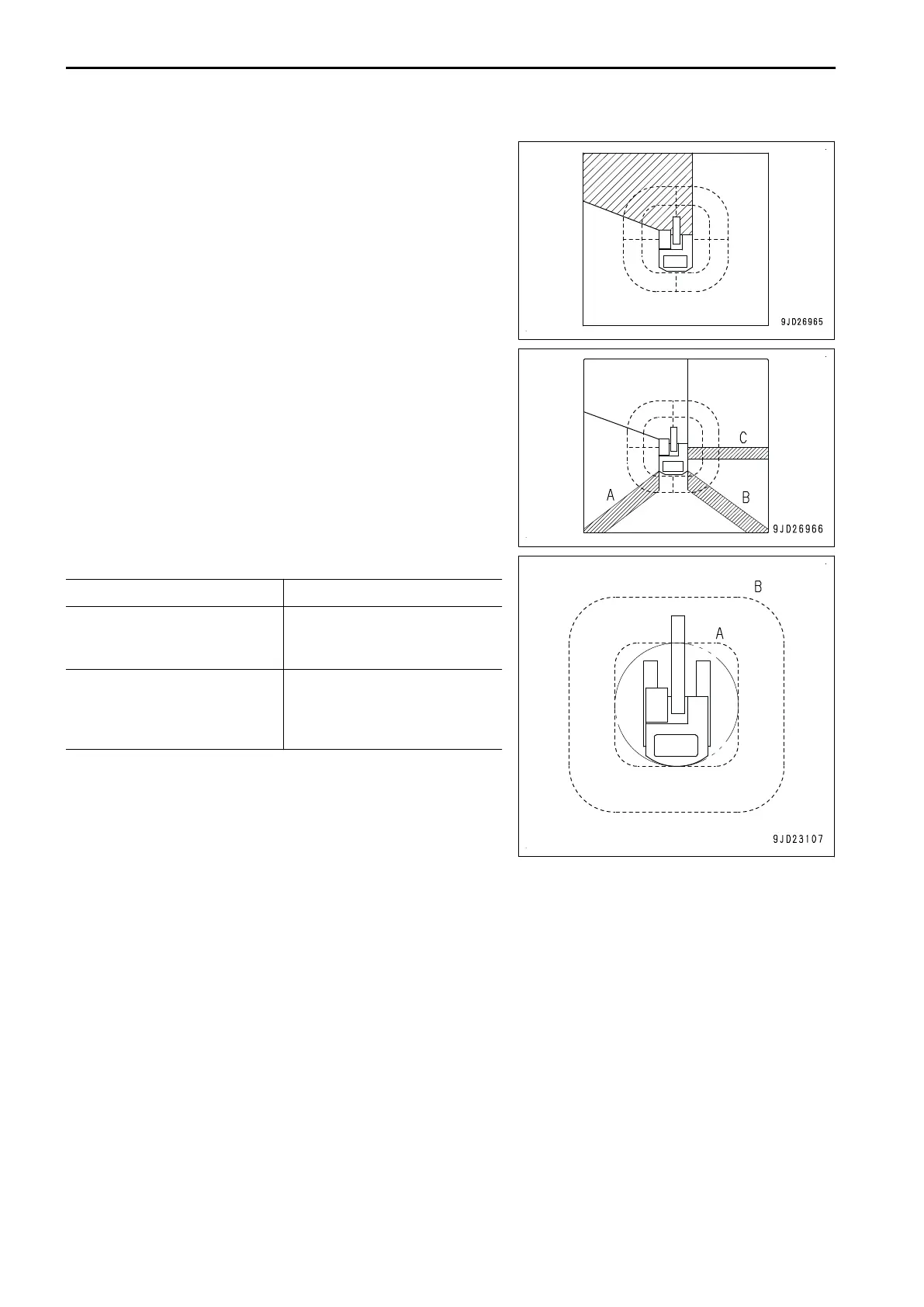

KomVision synthesizes the images of 4 cameras. The bird's
eye view display covers the view of 300 °.
The shaded area in the figure is not displayed on the monitor
screen even if the camera images are synthesized.
Since this image is electronically synthesized, the objects in the
image may be displayed double or distortions or misalignment
may occur in the shaded areas of the back of the machine (A)
and (B) and the right of the machine (C).
For the camera image, the image shot by each of the loaded
cameras is displayed.
Reference line is displayed as follows:
Display area
Display colour
Quadrangle (A) in which the
rear of the machine is inscribed
when the machine swings
Red
Quadrangle + 2 m (B) in which
the rear of the machine is in-
scribed when the machine
swings
Yellow
KomVision OPERATION
3-242
