B: Bucket hook height
OF: Lifting capacity (rating overfront)
OS: Lifting capacity (rating overside)

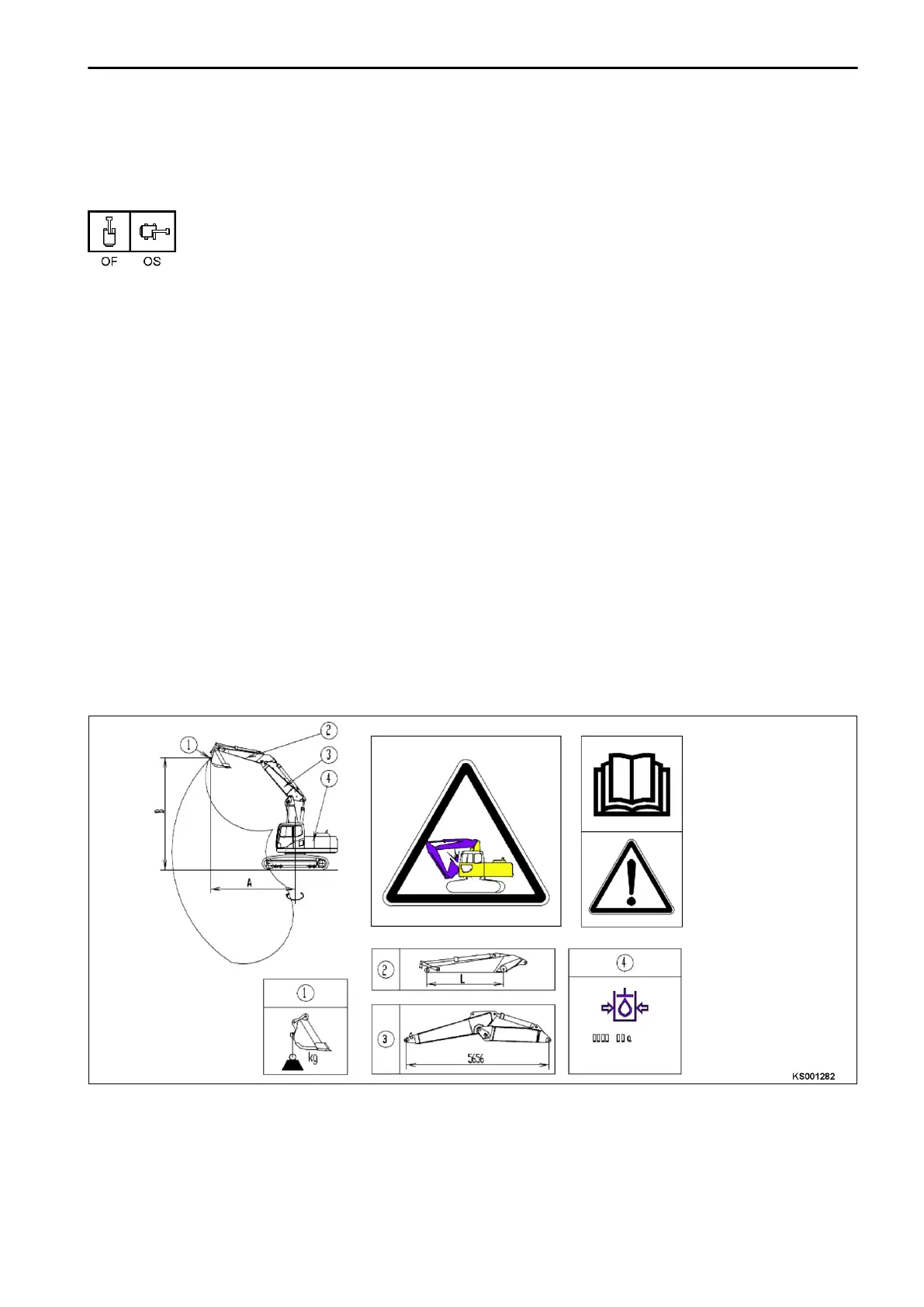

LEGEND
(1) Position of lifting point
(2) Arm length
(3) Boom length
(4) Hydraulic pressure
WORKING CONDITIONS:
• WITH BUCKET 650 kg
• IF OBJECT HANDLING IS PERFORMED WITH OTHER TOOL INSTALLED, THE WEIGHT DIFFERENCE
OF THE TOOL SHALL BE DEDUCTED FROM THE VALUES OF THIS TABLE.
• WITH FULLY EXTENDED BUCKET CYLINDER.
• ON A COMPACT HORIZONTAL LEVEL GROUND
PC210-11 WITH 600 mm WIDTH SHOE
PC210LC-11 WITH 700 mm WIDTH SHOE
PC210NLC-11 WITH 500 mm WIDE SHOE
PC230NHD-11 WITH 550 mm WIDE SHOE
Loads do not exceed 87% of hydraulic capacity or 75% of tipping capacity (* load limited by hydraulic capacity
rather than tipping).
ATTACHMENTS AND OPTIONS 2-PIECE BOOM
6-21
