EXPLANATION OF COMPONENTS

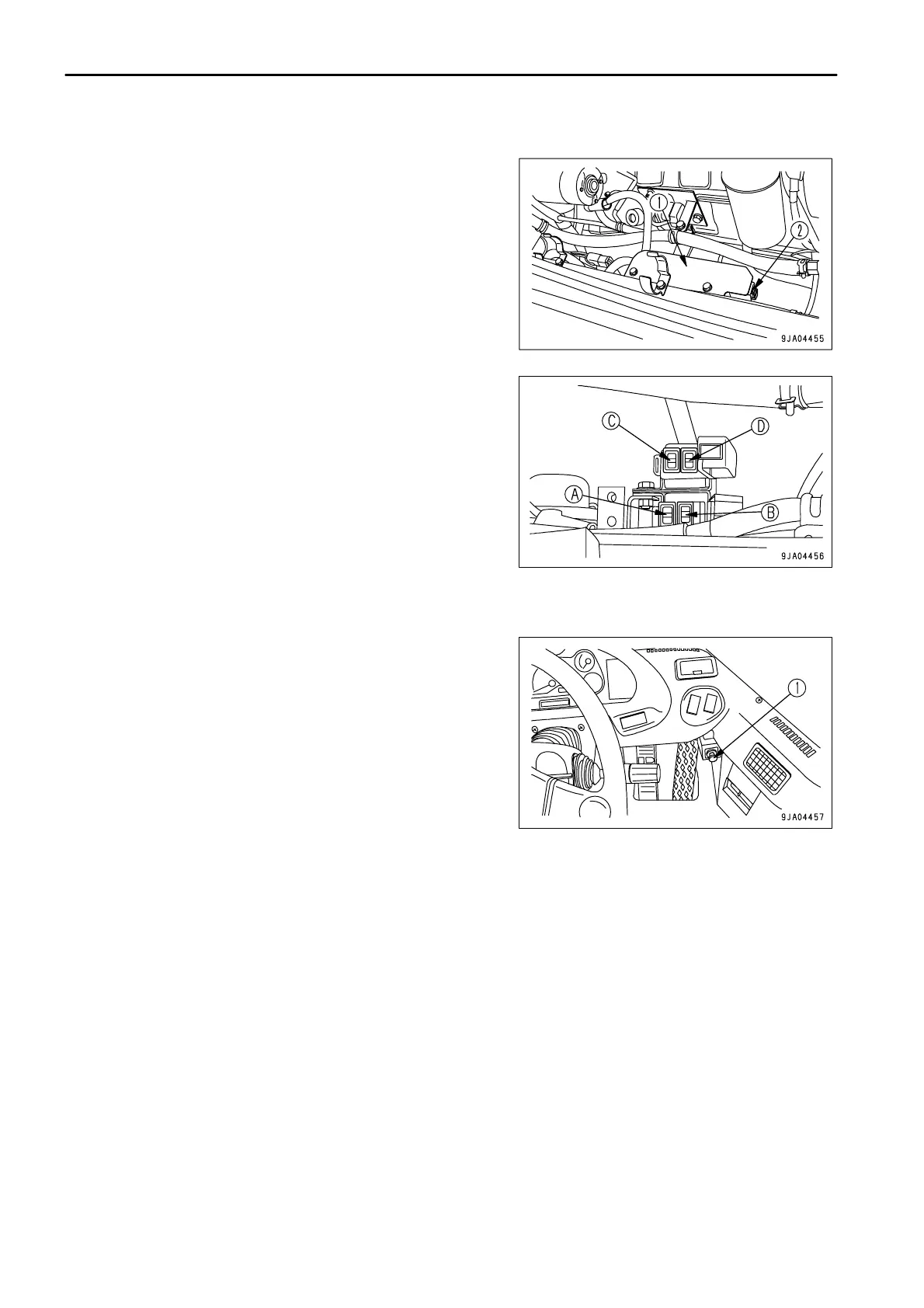

If the power does not come on when the starting switch is turned
ON, the slow blow fuse may be blown, so check and replace it.
The slow blow fuse is beside the engine on the left side of the
machine.
1.
Open the cover (1).
2. Open the cover of slow blow fuse box (2) and inspect.
For details of the method of replacing the slow blow fuse, see
Section "REPLACE SLOW BLOW FUSE (PAGE 4-30)".
(A)80A: Chassis power source
(B)120A: Engine preheating power source
(C)30A Battery power (starting switch, hazard)
(D)30A: Fuel solenoid power source
Removing the cigarette lighter (1) allows use of its power. The
maximum electric current is 7 A (168 W).
