EXPLANATION OF COMPONENTS
1.

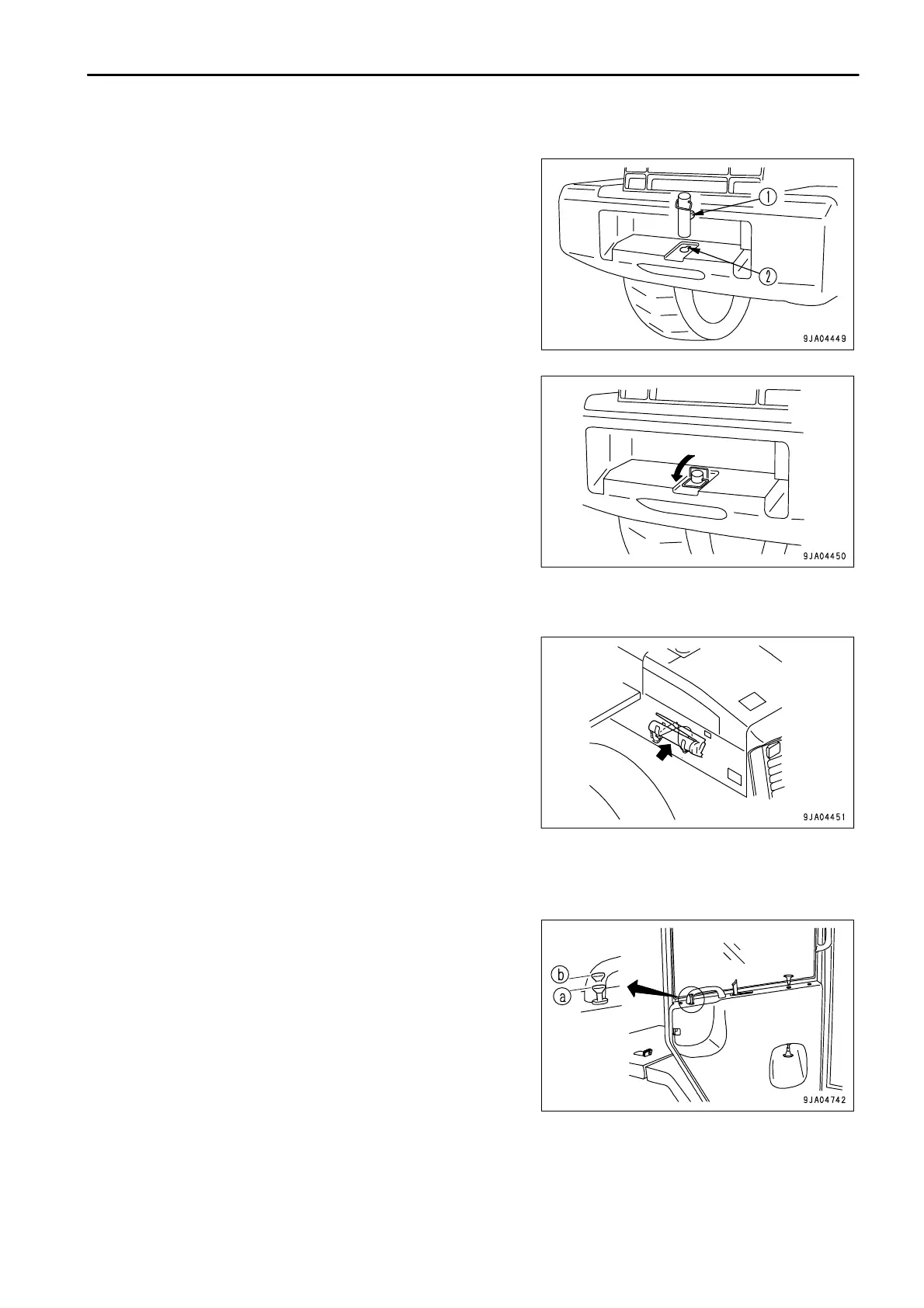

Align protrusion (1) in the towing pin with groove (2) in the
counterweight, then insert the pin and turn it 180°.
2.
To prevent the towing pin from turning, fold the handle of the
towing pin and set it in position.
Reverse this operation to remove the pin.
The grease pump is stowed inside the left engine side cover at the
rear of the machine.
After using the pump, wipe off all the grease stuck to the pump, set
it in the clamp inside the cover, then fit the chain to the clamp to
prevent the pump from moving.
In addition, form the rubber ring into a figure of 8 as shown in the
diagram on the right, and secure in position.
(Right door)
Press cab door inner lock to lock the door.
Position (a): Lock
Position (b): Release
