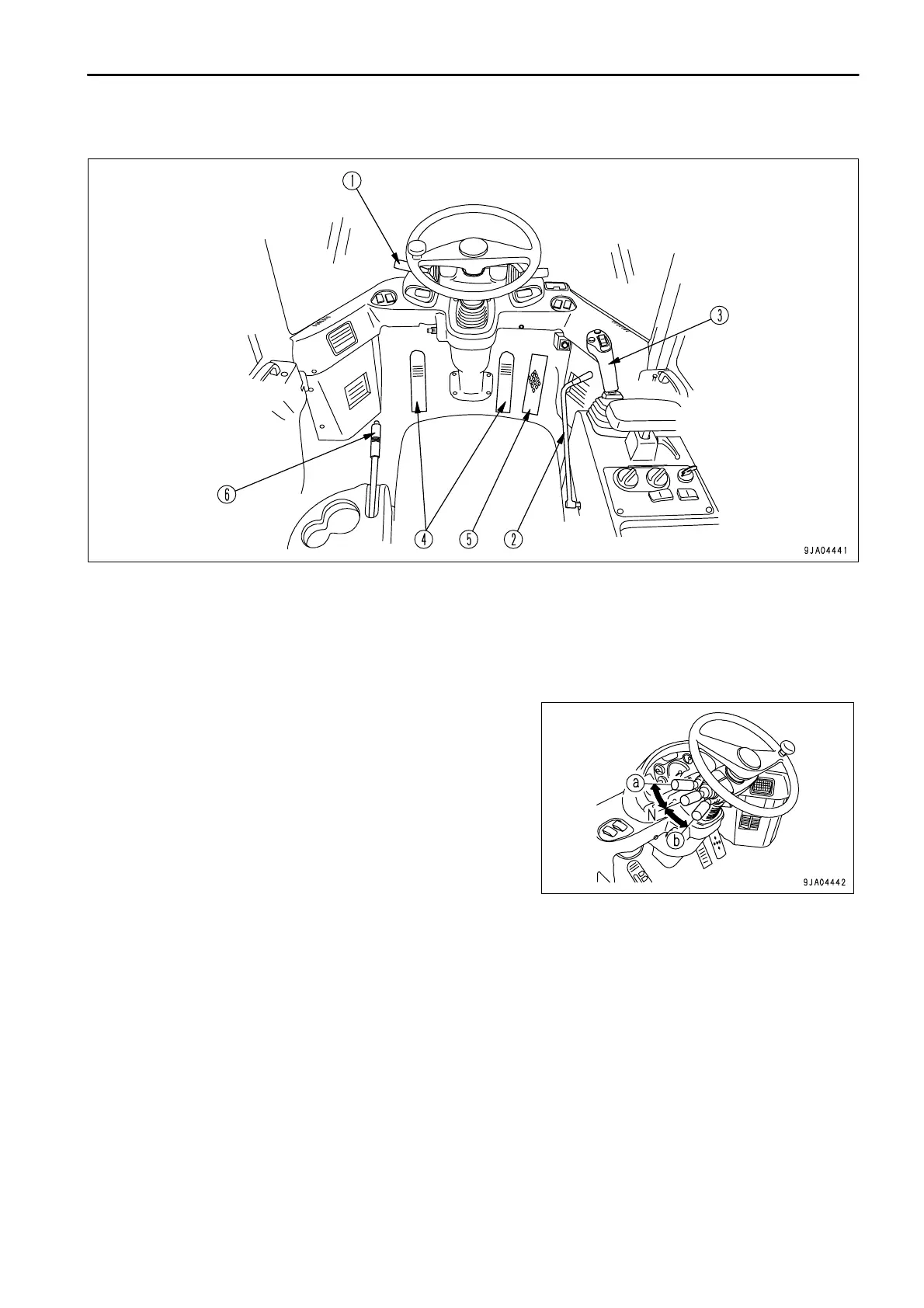

EXPLANATION OF COMPONENTS
(1) Directional lever
(2) Safety lock lever (for work equipment lever)
(3) Work equipment lever
(4) Brake pedal
(5) Accelerator pedal
(6) Parking brake lever
This lever (1) is used to switch the direction of travel of the machine
between forward and reverse.
When starting the engine, if the directional lever is not at the N
position, the engine will not start.
Position (a): FORWARD
Position N: NEUTRAL
Position (b): REVERSE
When the starting switch is turned to the ON position, if the
directional lever is not at the N position, the central warning lamp
lights up and the alarm buzzer sounds intermittently.
When the directional lever is set to the N position, the central
warning lamp goes out and the alarm buzzer stops.
