Komatsu WA250-5 Service Manual

.
OPERATION
EXPLANATION OF COMPONENTS

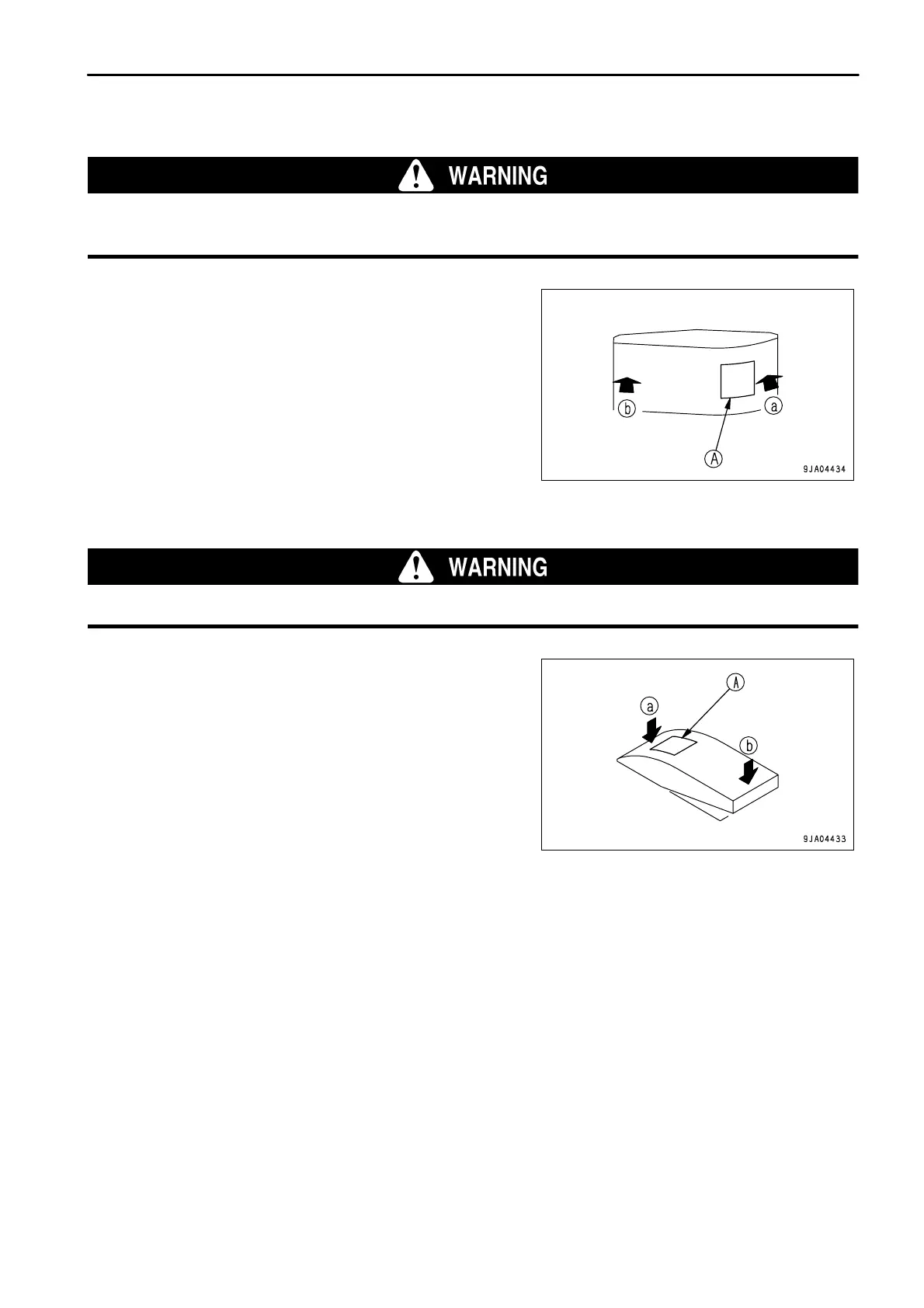

HAZARD LAMP SWITCH
Use
the
hazard
lamp
only
in
emergencies.
Using
the
hazard
lamp
when
traveling
may
cause
confusion
for
other
machine
operators.
This switch (9) is used in emergencies, such as when the machine
breaks down and has to be parked on the road.
Position (a): Direction indicator lamp and directional indicator pilot
lamp flash, and pilot lamp (A) lights up at the same
time.
Position (b): Lamps go out
FRONT WORKING LAMP SWITCH
Always
turn
the
working
lamp
off
before
traveling
on
public
roads.
This switch (10) is used to light up the front working lamp.
Position (a): Working lamp and pilot lamp (A) light up
Position (b): Working lamp goes out
REMARK
If the lamp switch is not at the ON position for the side clearance
lamp or head lamp, the working lamp will not light up.
3 - 35
