STANDARD TIGHTENING TORQUES FOR BOLTS AND NUTS
STANDARD TIGHTENING TORQUES FOR BOLTS AND NUTS

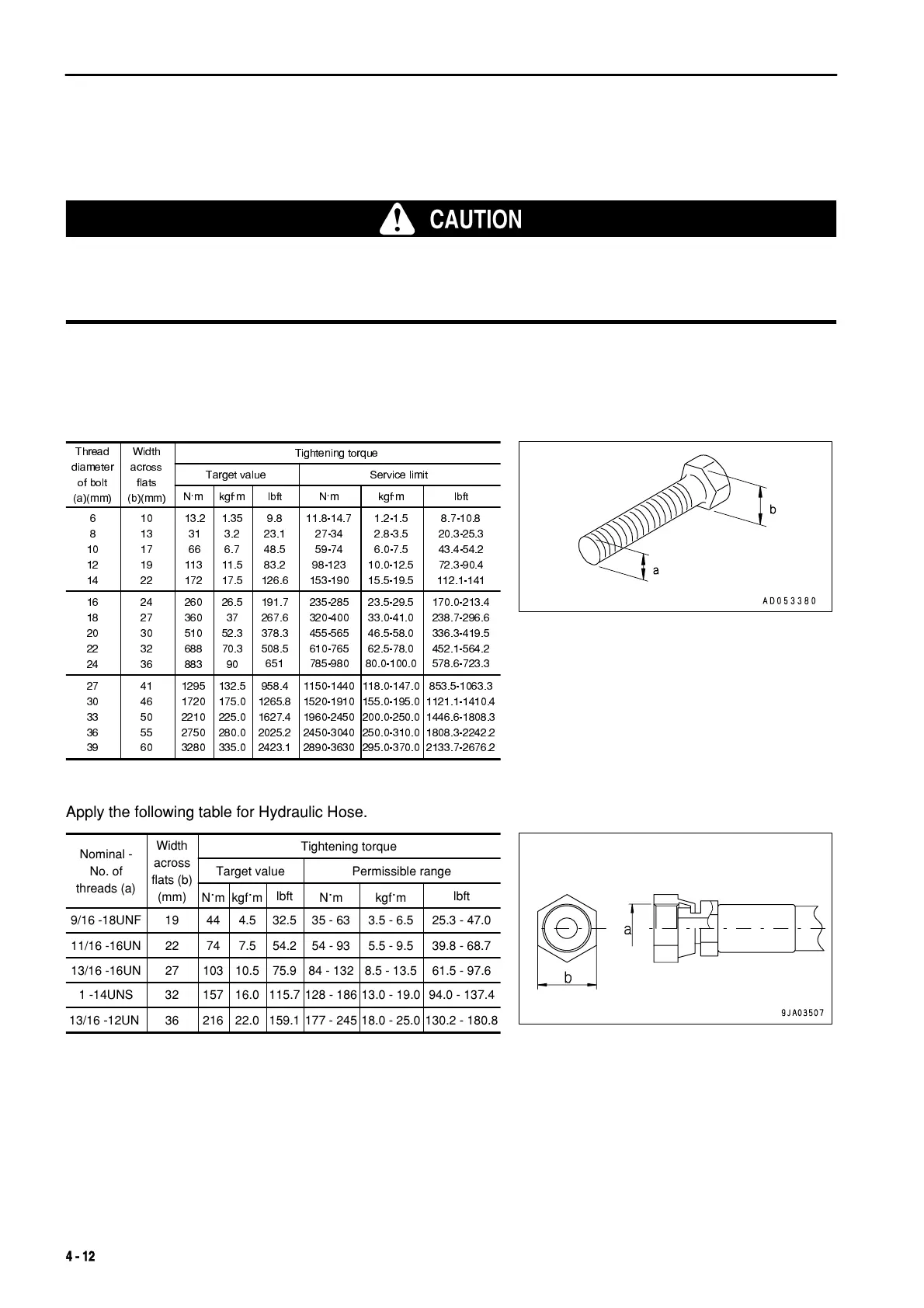

Unless otherwise specified, tighten the metric nuts and bolts to the torque shown in the table below.
If it is necessary to replace any nut or bolt, always use a Komatsu genuine part of the same size as the part that was
replaced.
Thread
diameter
of bolt
(a)(mm)
Width
across
flats
(b)(mm)
Tightening torque
Target value Service limit
N
·
m kgf
·
m lbft N
·
m kgf
·
m lbft
6
8
10
12
14
10
13
17
19
22
13.2
31
66
113
172
1.35
3.2
6.7
11.5
17.5
9.8
23.1
48.5
83.2
126.6
11.8-14.7
27-34
59-74
98-123
153-190
1.2-1.5
2.8-3.5
6.0-7.5
10.0-12.5
15.5-19.5
8.7-10.8
20.3-25.3
43.4-54.2
72.3-90.4
112.1-141
16
18
20
22
24
24
27
30
32
36
260
360
510
688
883
26.5
37
52.3
70.3
90
191.7
267.6
378.3
508.5
651
235-285
320-400
455-565
610-765
785-980
23.5-29.5
33.0-41.0
46.5-58.0
62.5-78.0
80.0-100.0
170.0-213.4
238.7-296.6
336.3-419.5
452.1-564.2
578.6-723.3
27
30
33
36
39
41
46
50
55
60
1295
1720
2210
2750
3280
132.5
175.0
225.0
280.0
335.0
958.4
1265.8
1627.4
2025.2
2423.1
1150-1440
1520-1910
1960-2450
2450-3040
2890-3630
118.0-147.0
155.0-195.0
200.0-250.0
250.0-310.0
295.0-370.0
853.5-1063.3
1121.1-1410.4
1446.6-1808.3
1808.3-2242.2
2133.7-2676.2
Apply the following table for Hydraulic Hose.
Nominal -
No. of
threads (a)
Width
across
flats (b)
(mm)
Tightening torque
Target value Permissible range
N
·
mkgf
·
m
lbft
N
·
mkgf
·
m
lbft
9/16 -18UNF 19 44 4.5 32.5 35 - 63 3.5 - 6.5 25.3 - 47.0
11/16 -16UN 22 74 7.5 54.2 54- 93 5.5- 9.5 39.8 - 68.7
13/16 -16UN 27 103 10.5 75.9 84- 132 8.5- 13.5 61.5 - 97.6
1 -14UNS 32 157 16.0 115.7 128- 186 13.0- 19.0 94.0 - 137.4
13/16 -12UN 36 216 22.0 159.1 177- 245 18.0- 25.0 130.2 - 180.8
