OPERATION
EXPLANATION OF COMPONENTS
EXPLANATION OF COMPONENTS
The following is an explanation of the devices needed for operating the machine.
To carry out suitable operations correctly and safely, it is important to understand fully the methods of operating the
equipment and the meanings of the displays.

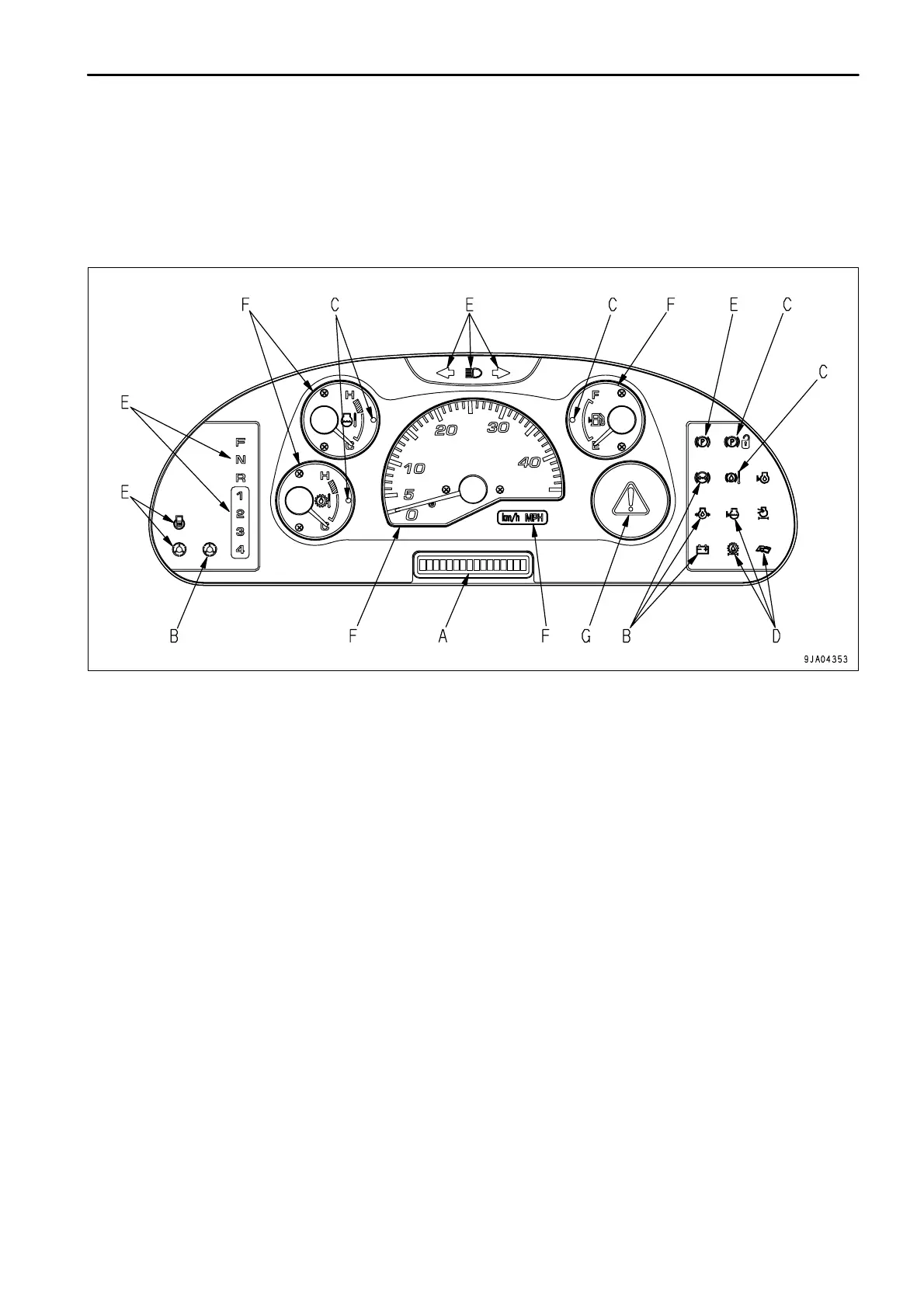

MACHINE MONITOR
A: Character display
B: Emergency stop items
C: Caution items
D: Inspection and maintenance items
E: Pilot display
F: Meter display
G: Central warning lamp
3 - 5
