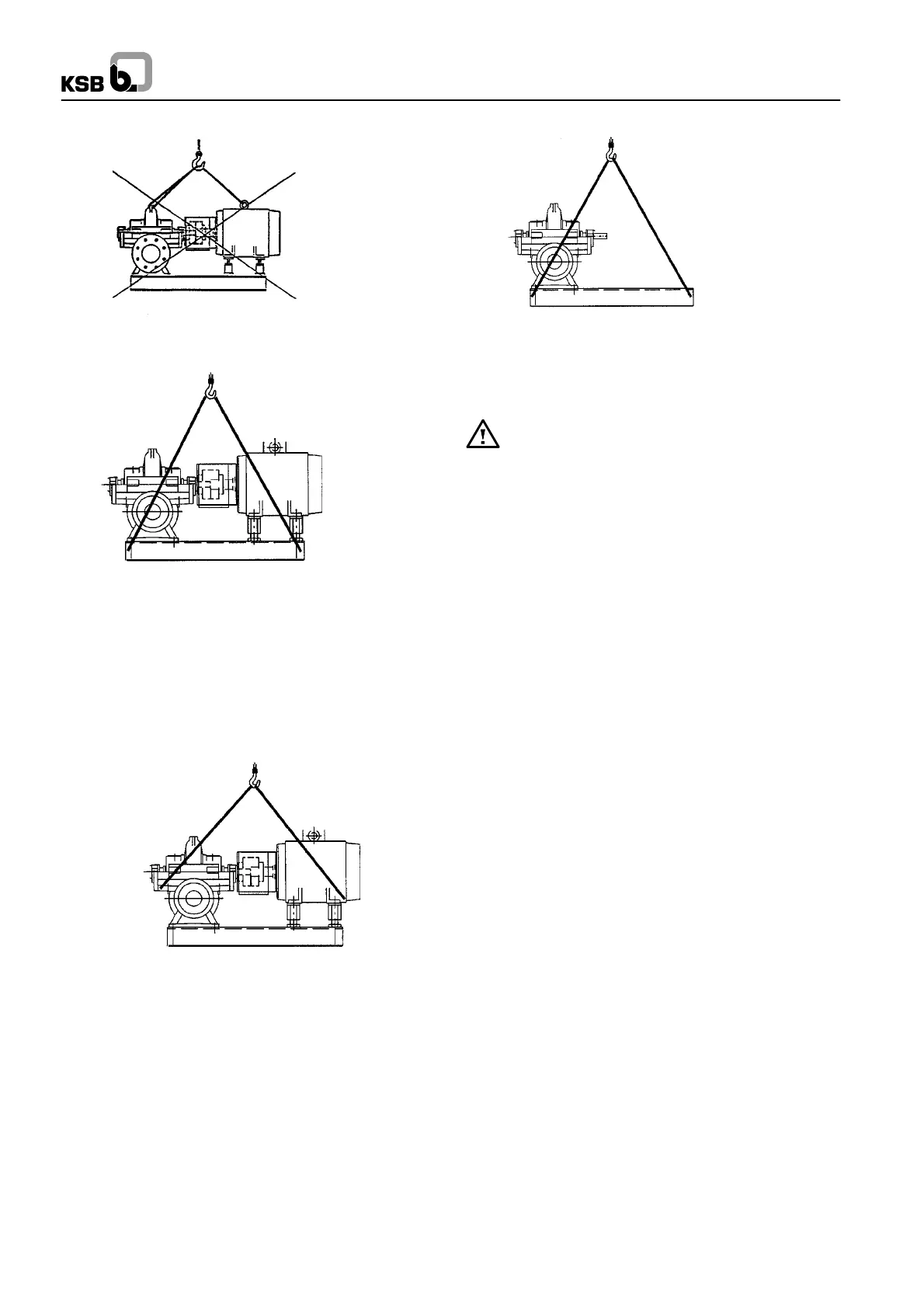

Fig.3: Never transport the unit as s hown above!
Fig.4a: Transport of c omplete unit
(horizontal installation type 3E)
-- up to motor size 280 (IEC standard)
-- or up to a total weight of 1500 kg
Observe angles of pull when lifting.
Angle of pull > 90_ not permitted.
Use two separate sets of lifting slings!
Fig.4b: Transport of c omplete unit
-- up to motor size 280 (IEC standard)
-- or up to a total weight of 1500 kg
Fig.4c: Transport of unit (without motor)
-- motor sizes 315 and above
-- or total weight (unit) of 1500 kg and above
Safe transport in horizontal position must be ensured by
suitable transport facilities. Make sure the pump cannot
slip out of the transport arrangement.
3.2 Interim Storage / Preservation
When the unit is temporarily put into storage, only the wetted
low alloy components, e.g. JL1040 (GG--25) must be preser-
ved. Commercially available preservatives can be used for this
purpose. Please observe the manufacturer ’s instructions for
application / removal.
4 Description of the Product and
Accesories
4.1 Technical Specification
Design
The KSB pump of the Omega series is a horizontally installed,
single--stage, axially split volute casing pump with double--en-
try radial impeller. Connection flanges are manufactured accor-
ding to EN, DIN, ISO, BS or ASME, as preferred.
Fields of application
In waterworks, irrigation and drainage pumping stations, power
stations, for industrial water supply, dock installations, fire ex-
tinguishing systems, refineries, pipelines and tank farms, also
for handling crude oil and refinery intermediates
