Omega
74

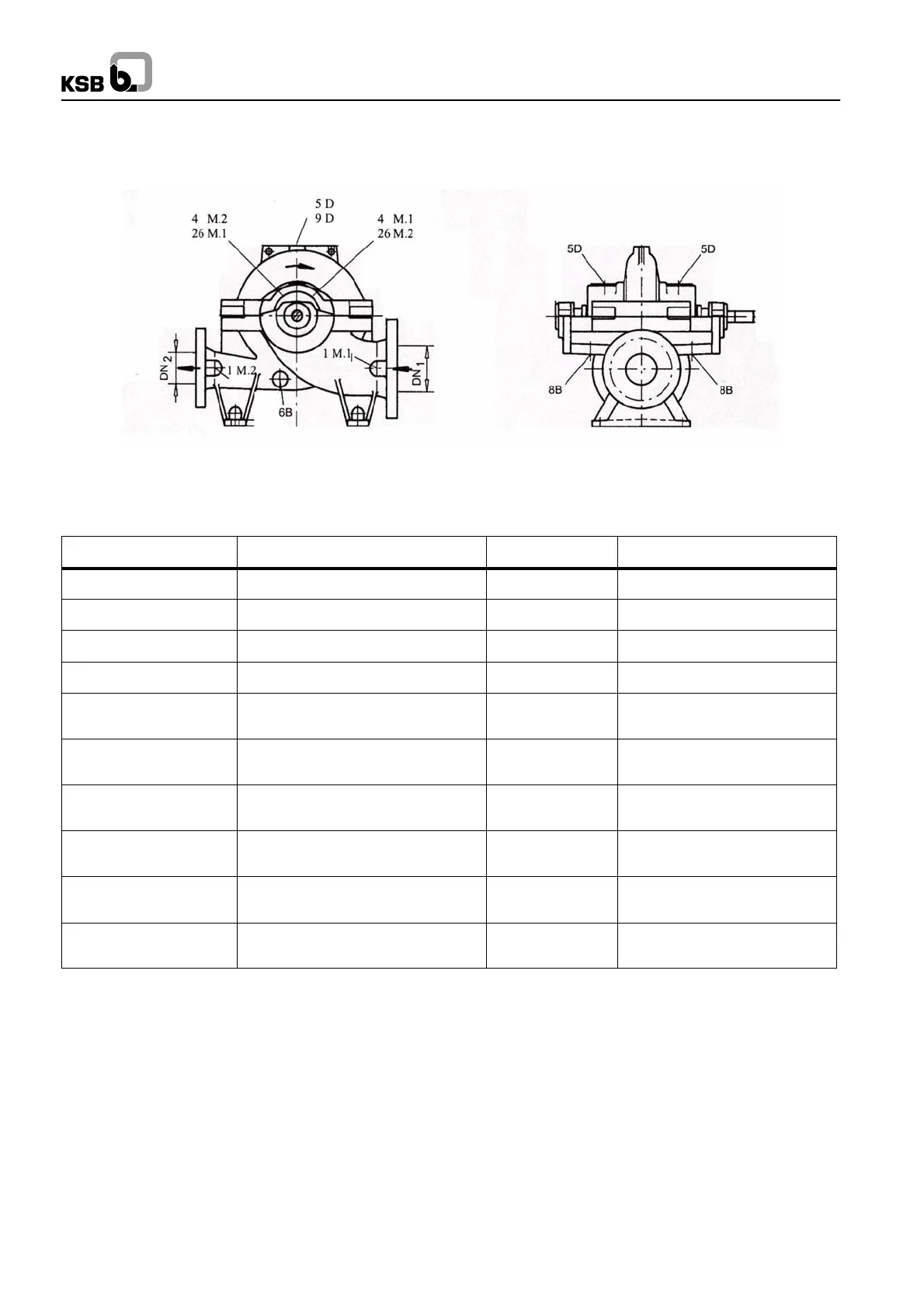

Table of Connections and Measuring Points
Item No. Description Connections Value required
5D Venting G1/2
9 D (if applicable) Venting of barrier liquid G1/2
6B Casing drain G1/2
8B Leakage drain G3/4 Enter order--specific data !
1 M.1 (if applicable) Pressure gauge connection, suction
side
G1/2 Enter order--specific data !
1M.2 Pressure gauge connection,
discharge side
G1/2 Enter order--specific data !
4 M.1 (if applicable) Temperature measuring point, bearing
Drive end
G3/8 See section 7.2
4 M.2 (if applicable) Temperature measuring point,
non--drive end
G3/8 See section 7.2
26 M.1 (if applicable) Thread for SPM measurement,
drive end
M8 Enter order --specific data !
26 M.2 Thread for SPM measurement,
non--drive end
M8 Enter order --specific data !
