KTM 1290 SUPER ADVENTURE R 2017 User Manual

13 SERVICE WORK ON THE CHASSIS 146
00
0
401665-10

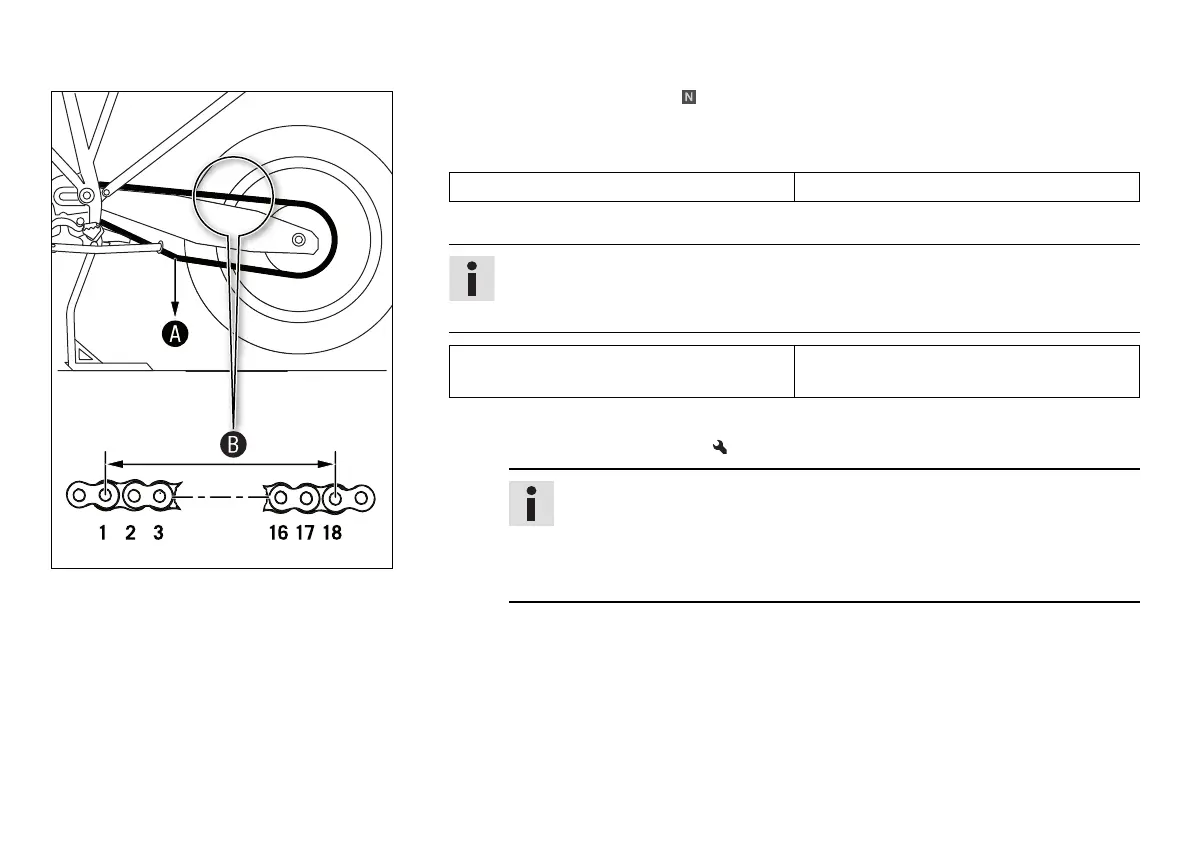

– Shift the transmission to idle .
–
Pull the lower chain section with specified weight
A
.
Guideline
Weight, chain wear measurement 15 kg (33 lb.)
–
Measure the distance
B
of 18 chain rollers on the upper part of the chain.
Info
Chain wear is not always even, so you should repeat this measurement at differ-
ent chain positions.
Maximum distance
B
at the longest
chain section
272 mm (10.71 in)
»
If distance
B
is greater than the specified measurement:
– Change the drivetrain kit.
Info
When a new chain is mounted, the rear sprocket and engine sprocket
should also be changed.
New chains wear out faster on old, worn sprockets.
For safety reasons, the chain has no chain joint.

KTM 1290 SUPER ADVENTURE R 2017 Specifications

General

Engine Type	2-cylinder, 4-stroke, V 75°
Displacement	1301 cc
Bore x Stroke	108 mm x 71 mm
Compression Ratio	13.1:1
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP USD Ø 48 mm
Front Wheel	2.50 x 21"
Rear Wheel	4.50 x 18"
Front Tire	90/90-21
Rear Tire	150/70-18
Seat Height	890 mm
Ground Clearance	250 mm
Fuel Capacity	23 liters
Dry Weight	217 kg
Power	118 kW (160 hp) @ 8, 750 rpm
Torque	140 Nm @ 6750 rpm
Fuel System	Keihin EFI
Frame	Chromoly steel trellis frame, powder coated
Rear Suspension	WP monoshock
Front Brake	2 x 320 mm discs, 4-piston radial fixed caliper
Rear Brake	Brembo two-piston caliper, 267 mm disc
ABS	Bosch 9ME Combined-ABS
Wheelbase	1580 mm
