13 SERVICE WORK ON THE CHASSIS 147
K00820-10

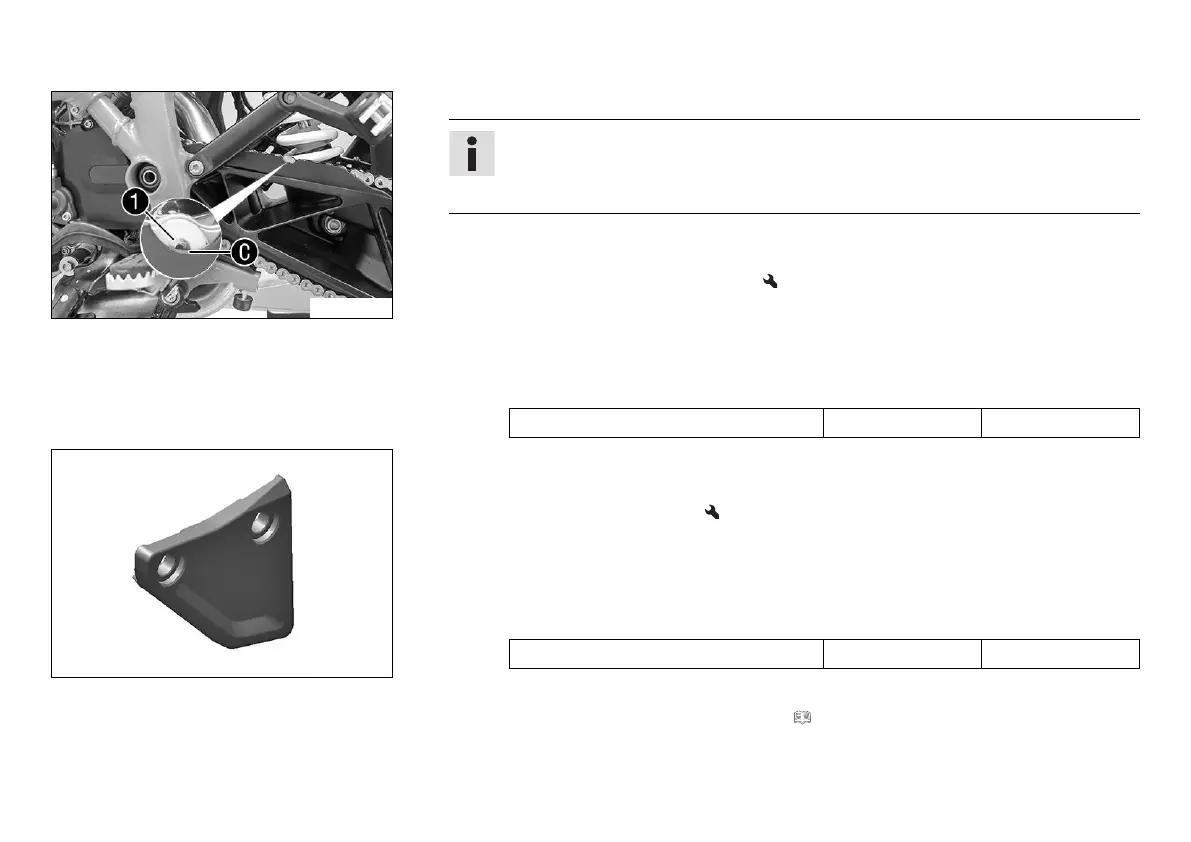

– Check the chain sliding guard for wear at the recess.
Info
When the chain sliding guard is new, the rivets
1
are half visible at the bottom
edge
C
of the recess.
» When the rivets of the chain are no longer visible at the bottom edge of the recess
of the chain sliding guard:
– Change the chain sliding guard.
– Check that the chain sliding guard is firmly seated.
» If the chain sliding guard is loose:
– Tighten the screws on the chain sliding guard.
Guideline
Screw, chain sliding guard M5 5 Nm (3.7 lbf ft)
401670-01
– Check the chain guide for wear.
» If the chain guide is worn:
– Change the chain guide.
– Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the screws on the chain guide.
Guideline
Screw, chain guide M6 5 Nm (3.7 lbf ft)
Finishing work
– Remove the vehicle from the center stand. ( p. 138)

KTM 1290 SUPER ADVENTURE R 2017 Specifications

General

Engine Type	2-cylinder, 4-stroke, V 75°
Displacement	1301 cc
Bore x Stroke	108 mm x 71 mm
Compression Ratio	13.1:1
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP USD Ø 48 mm
Front Wheel	2.50 x 21"
Rear Wheel	4.50 x 18"
Front Tire	90/90-21
Rear Tire	150/70-18
Seat Height	890 mm
Ground Clearance	250 mm
Fuel Capacity	23 liters
Dry Weight	217 kg
Power	118 kW (160 hp) @ 8, 750 rpm
Torque	140 Nm @ 6750 rpm
Fuel System	Keihin EFI
Frame	Chromoly steel trellis frame, powder coated
Rear Suspension	WP monoshock
Front Brake	2 x 320 mm discs, 4-piston radial fixed caliper
Rear Brake	Brembo two-piston caliper, 267 mm disc
ABS	Bosch 9ME Combined-ABS
Wheelbase	1580 mm
