15 WHEELS, TIRES
236
V00768-11

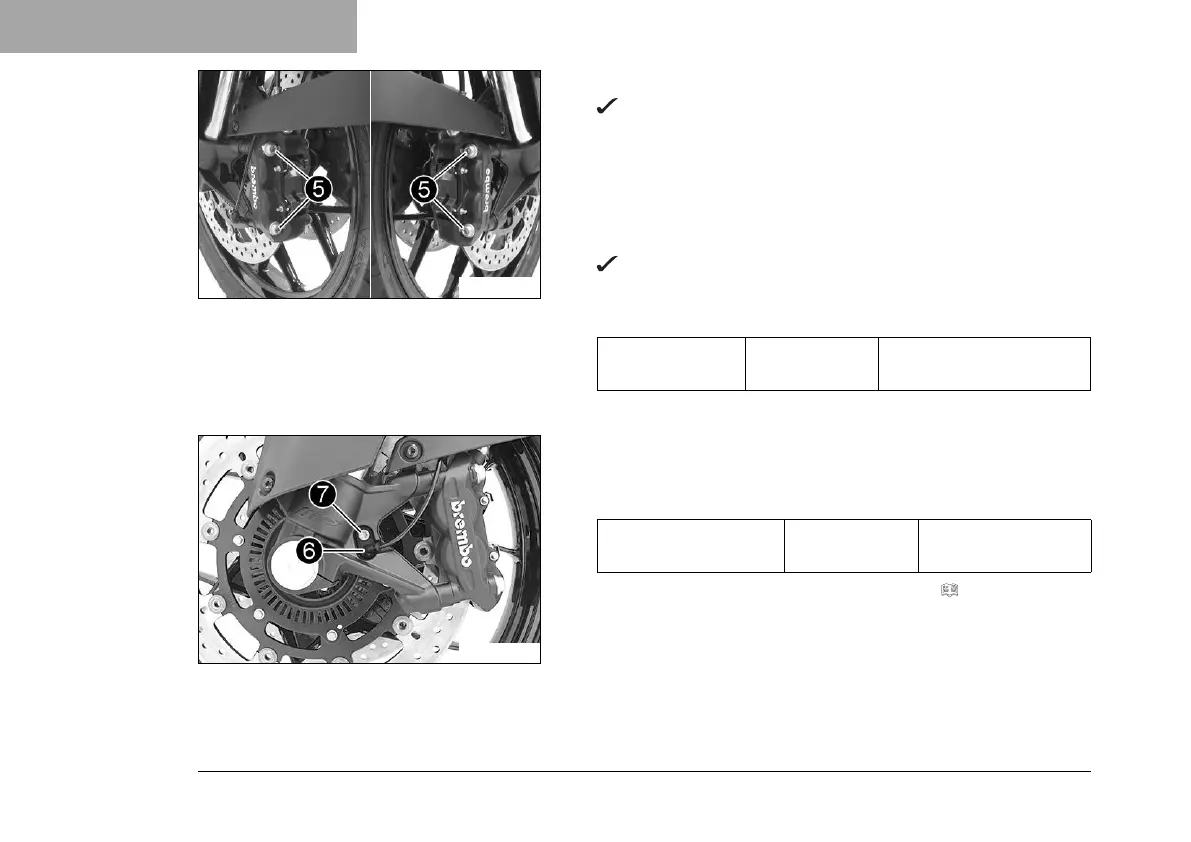

– Position the brake calipers.
The brake linings are correctly positioned.
–
Mount screws
5
on both brake calipers but do not tighten
yet.
– Operate the hand brake lever repeatedly until the brake lin-
ings are in contact with the brake disc and there is a pressure
point. Fix the hand brake lever in the activated position.
The brake calipers straighten.
–
Tighten screws
5
on both brake calipers.
Guideline
Screw, front
brake caliper
M10 45 Nm (33.2 lbf ft)
Loctite
®
243â„¢
– Remove the locking piece of the hand brake lever.
V00767-11
–
Position wheel speed sensor
6
in the drill hole.
–
Mount and tighten screw
7
.
Guideline
Remaining chassis
screws
M6 10 Nm (7.4 lbf ft)
– Remove the vehicle from the center stand. ( p. 182)
