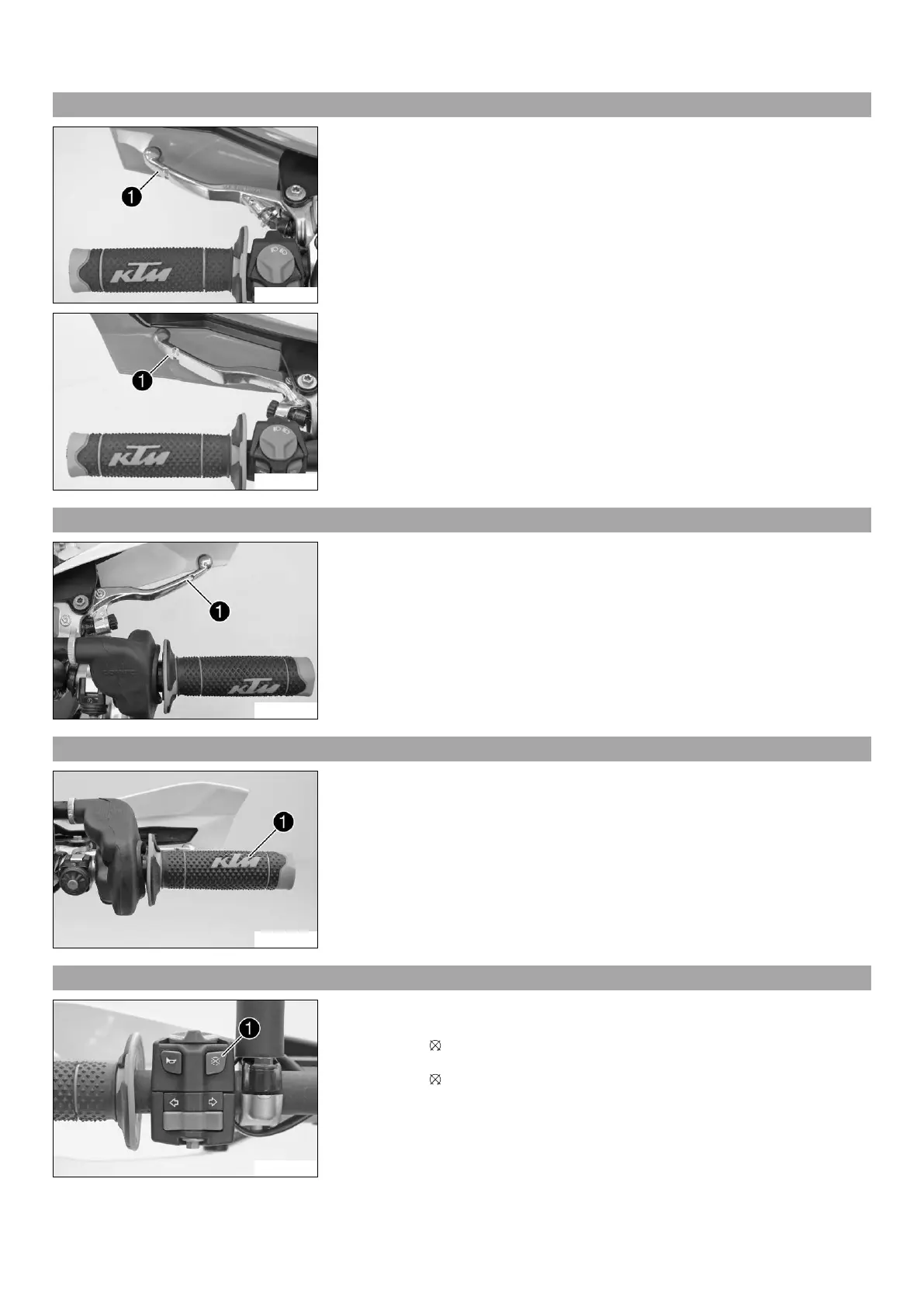

6 CONTROLS 13
6.1 Clutch lever
102251-10
(All 125/200 models)
The clutch lever
is fitted on the left side of the handlebar.
The clutch is hydraulically operated and self-adjusting.
102265-10
(All 250/300 models)
The clutch lever
is fitted on the left side of the handlebar.
The clutch is hydraulically operated and self-adjusting.
6.2 Hand brake lever
602697-10
Hand brake lever
is fitted on the right side of the handlebar.
The front brake is engaged using the hand brake lever.
6.3 Throttle grip
602698-10
Throttle grip
is fitted on the right side of the handlebar.
6.4 Kill switch (All EXC models)
102044-10
The kill switch
is fitted on the left side of the handlebar.
Possible states
• Kill switch in the basic position – In this position, the ignition circuit is closed
and the engine can be started.
• Kill switch is pressed – In this position, the ignition circuit is interrupted, a run-
ning engine stops, and a non-running engine will not start.
