12 SERVICE WORK ON THE CHASSIS 54

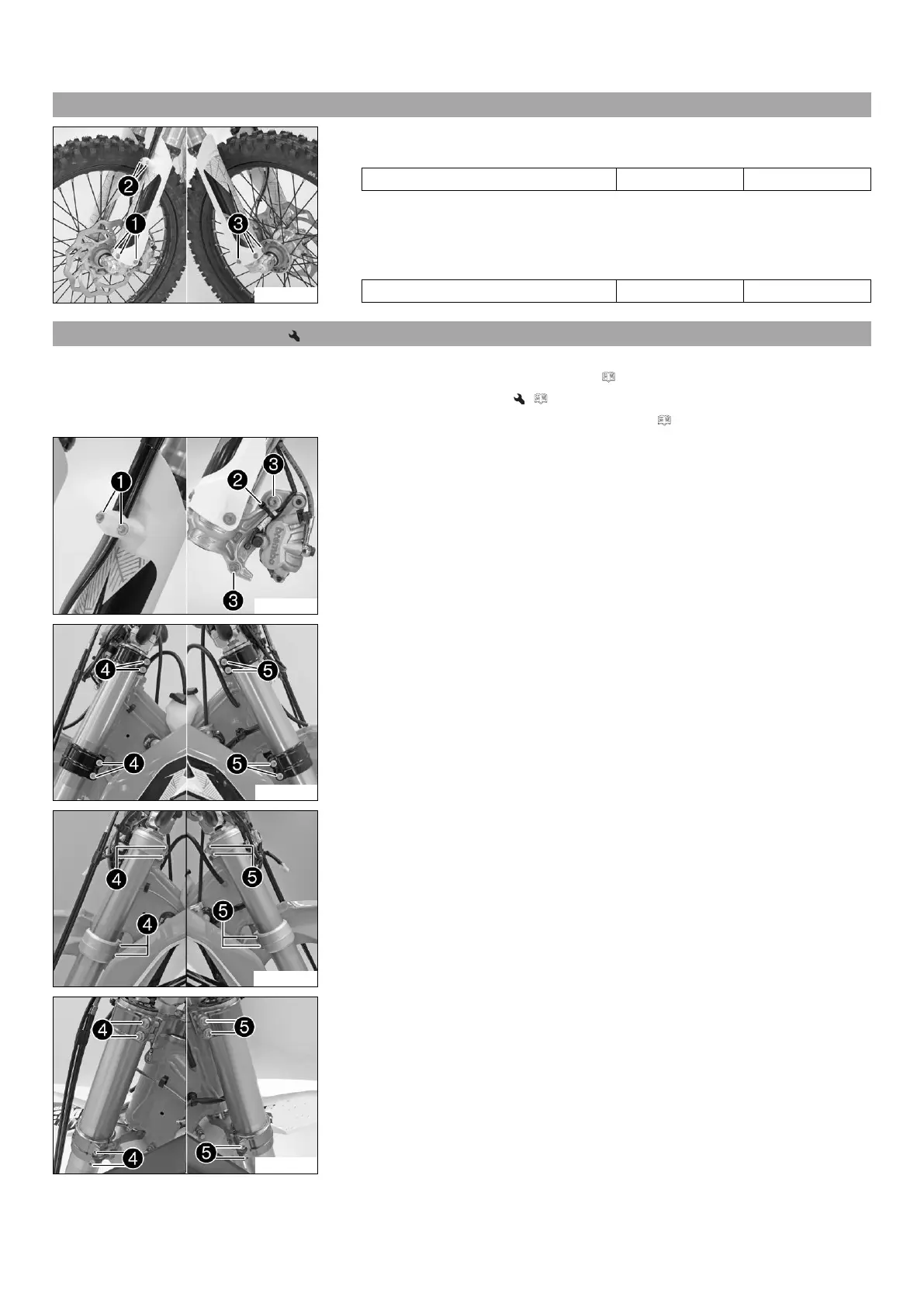

12.6 Installing the fork protector
102264-11
–
Position the fork protector on the left fork leg. Mount and tighten screws
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Position the brake line and wiring harness. Put on the clamp and mount and
tighten screws
.
–
Position the fork protector on the right fork leg. Mount and tighten screws
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
12.7 Removing the fork legs
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 52)
– Remove the front wheel. ( p. 90)
– Remove the headlight mask with the headlight. ( p. 98)
102261-10
Main work
–
Remove screws
and take off the clamp.
–
Remove cable tie(s)
.
–
Remove screws
with the washers and take off the brake caliper.
– Allow the brake caliper and brake line to hang loosely to the side.
V00038-10
(EXC EU/AU)
–
Loosen screws
. Take out the left fork leg.
–
Loosen screws
. Take out the right fork leg.
B02146-10
(200 XC‑W US, 250 XC‑W US, 300 EXC BR, 300 XC‑W US)
–
Loosen screws
. Take out the left fork leg.
–
Loosen screws
. Take out the right fork leg.
V00039-10
(Six Days)
–
Loosen screws
. Take out the left fork leg.
–
Loosen screws
. Take out the right fork leg.
