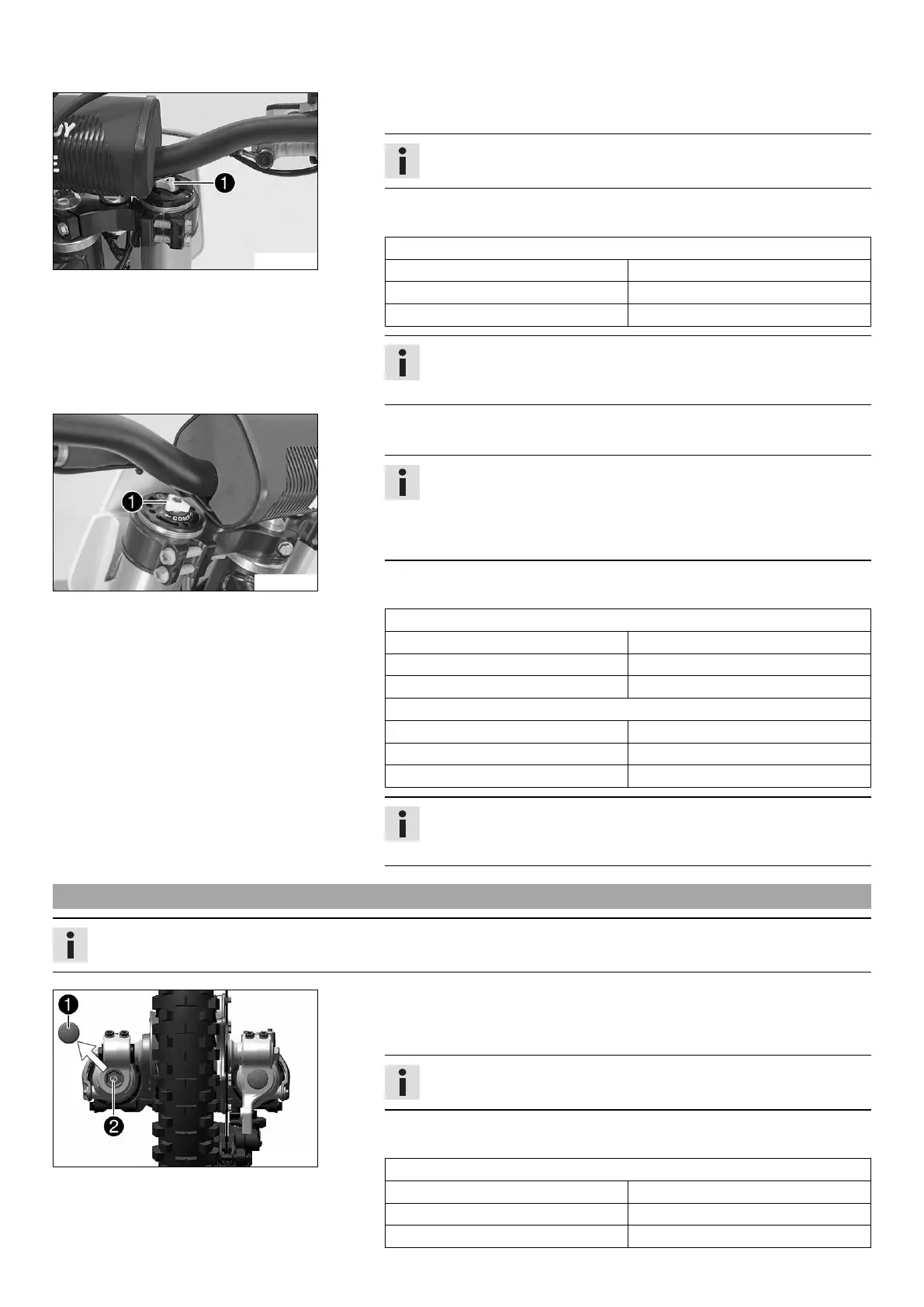

10 TUNING THE CHASSIS 36
S00860-10
(SX‑F EU)
–
Turn adjusting screw
clockwise all the way.
Info
The adjusting screw
is located at the upper end of the right fork leg.
– Turn counterclockwise by the number of clicks corresponding to the fork type.
Guideline
Compression damping
Comfort 20 clicks
Standard 17 clicks
Sport 12 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce
damping.
102142-11
(SX‑F US, XC‑F US)
–
Turn the white adjusting screw
all the way clockwise.
Info
The adjusting screw
is located at the upper end of the left fork leg.
The compression damping is located in the left fork leg COMP (white
adjusting screw). The rebound damping is located in the right fork
leg REB (red adjusting screw).
– Turn counterclockwise by the number of clicks corresponding to the fork type.
Guideline
Compression damping (SX‑F US)
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks
Compression damping (XC‑F US)
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce
damping.
10.15 Adjusting the rebound damping of the fork
Info
The hydraulic rebound damping determines the fork suspension behavior.
M01100-10
(SX‑F EU)
–
Remove protection cap
.
–
Turn adjusting screw
clockwise all the way.
Info
The adjusting screw
is located at the lower end of the right fork leg.
– Turn counterclockwise by the number of clicks corresponding to the fork type.
Guideline
Rebound damping
Comfort 20 clicks
Standard 17 clicks
Sport 12 clicks
