KTM 250 SX-F 2016 User Manual

11 SERVICE WORK ON THE CHASSIS 50
102174-01

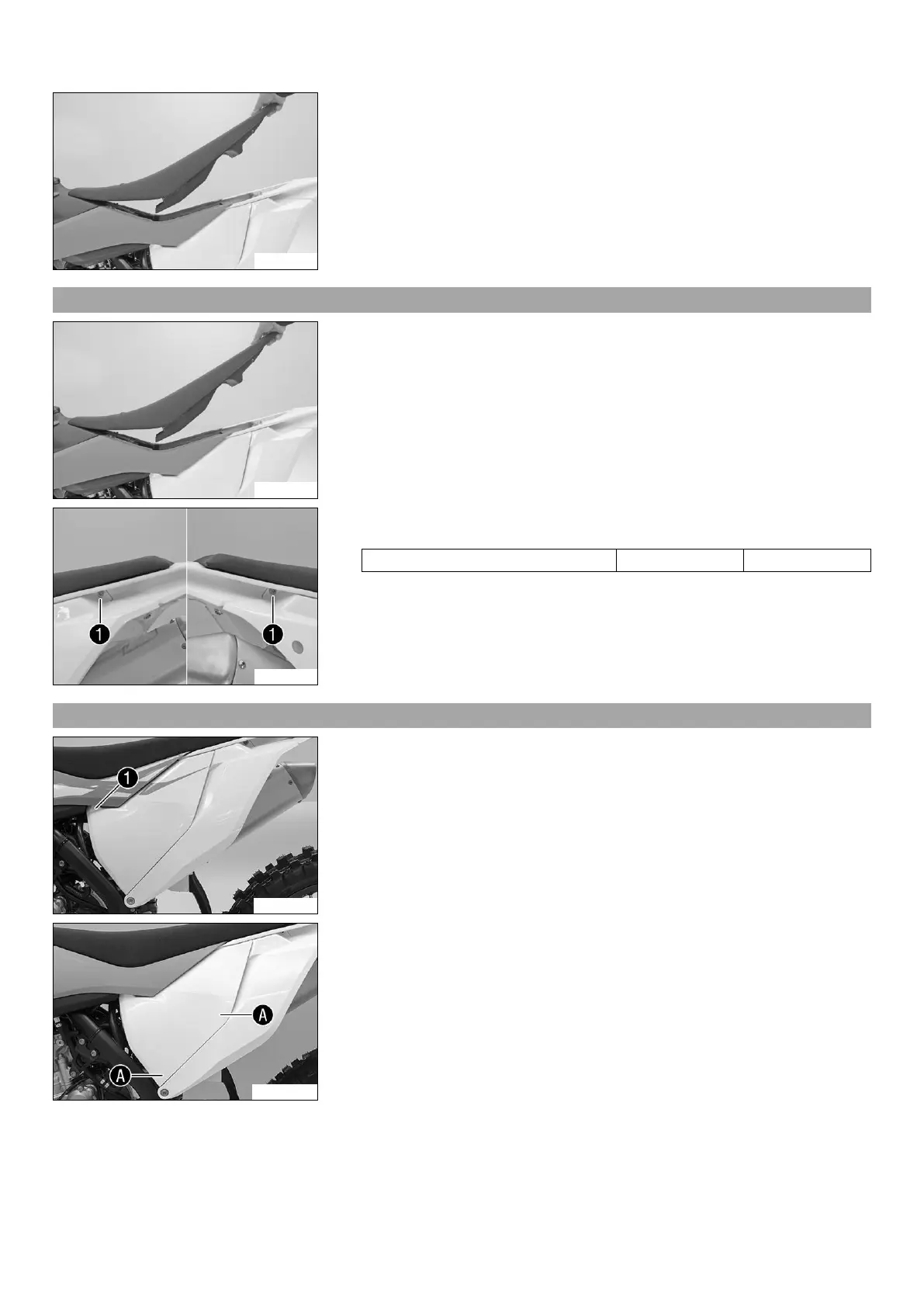

– Raise the rear of the seat, push the seat back, and lift it off.
11.21 Mounting the seat
102174-01
– Mount the front of the seat on the collar bushing of the fuel tank, lower the seat at
the rear, and push the seat forward.
102173-10
–
Mount and tighten screws

.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
11.22 Removing the air filter box cover
K00188-10
Condition
The air filter box cover is secured.
–
Remove screw

.
M00779-10
–
Pull off the air filter box cover in area

sideways and remove it toward the front.

KTM 250 SX-F 2016 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	249.9 cc
Starter	Electric starter
Fuel System	Keihin EFI, 44 mm throttle body
Ignition	Keihin EMS
Transmission	5-speed
Front Tire	80/100-21
Rear Tire	100/90-19
Seat Height	960 mm
Ground Clearance	370 mm
Bore x Stroke	78 mm x 52.3 mm
Final Drive	Chain
Front Suspension	WP USD, 48 mm
Rear Suspension	WP monoshock
Front Brake	Disc brake, 260 mm
Rear Brake	Disc brake, 220 mm
Wheelbase	1485 mm
Fuel Capacity	7 liters
Frame	Central double-cradle-type 25CrMo4 steel
