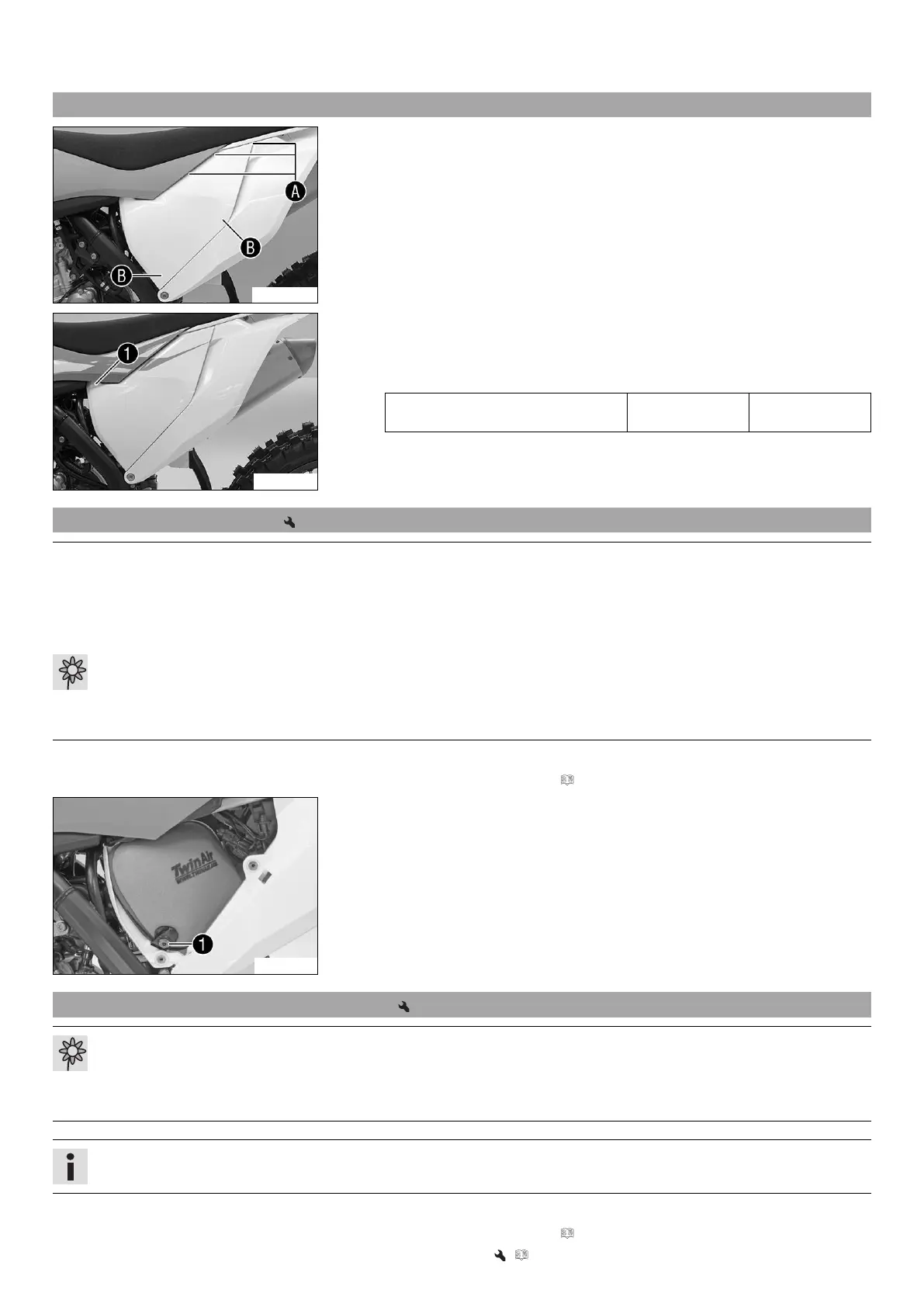

11 SERVICE WORK ON THE CHASSIS 51
11.23 Installing the air filter box cover
M01370-10
Insert the air filter box cover in area
and clip it into area
.
K00188-10
Condition
The air filter box cover is secured.
Mount and tighten screw
.
Guideline
Screw, air filter box cover EJOT PT
®
K60x20-Z
3 Nm (2.2 lbf ft)
11.24 Removing the air filter
Note
Engine damageUnfiltered intake air has a negative effect on the service life of the engine.
Dust and dirt will enter the engine without an air filter.
Never start to use the vehicle without an air filter.
Warning
Environmental hazardHazardous substances cause environmental damage.
Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with the applicable regu-
lations.
Preparatory work
Remove the air filter box cover. ( p. 50)
102177-10
Main work
Detach
retaining tab. Remove air filter with air filter support.
Take off air filter from air filter support.
11.25 Cleaning the air filter and air filter box
Warning
Environmental hazardHazardous substances cause environmental damage.
Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with the applicable regu-
lations.
Info
Do not clean the air filter with fuel or petroleum since these substances attack the foam.
Preparatory work
Remove the air filter box cover. ( p. 50)
Remove the air filter. ( p. 51)
