KTM 250 XC TPI User Manual

ELECTRICAL SYSTEM 14
99
Info

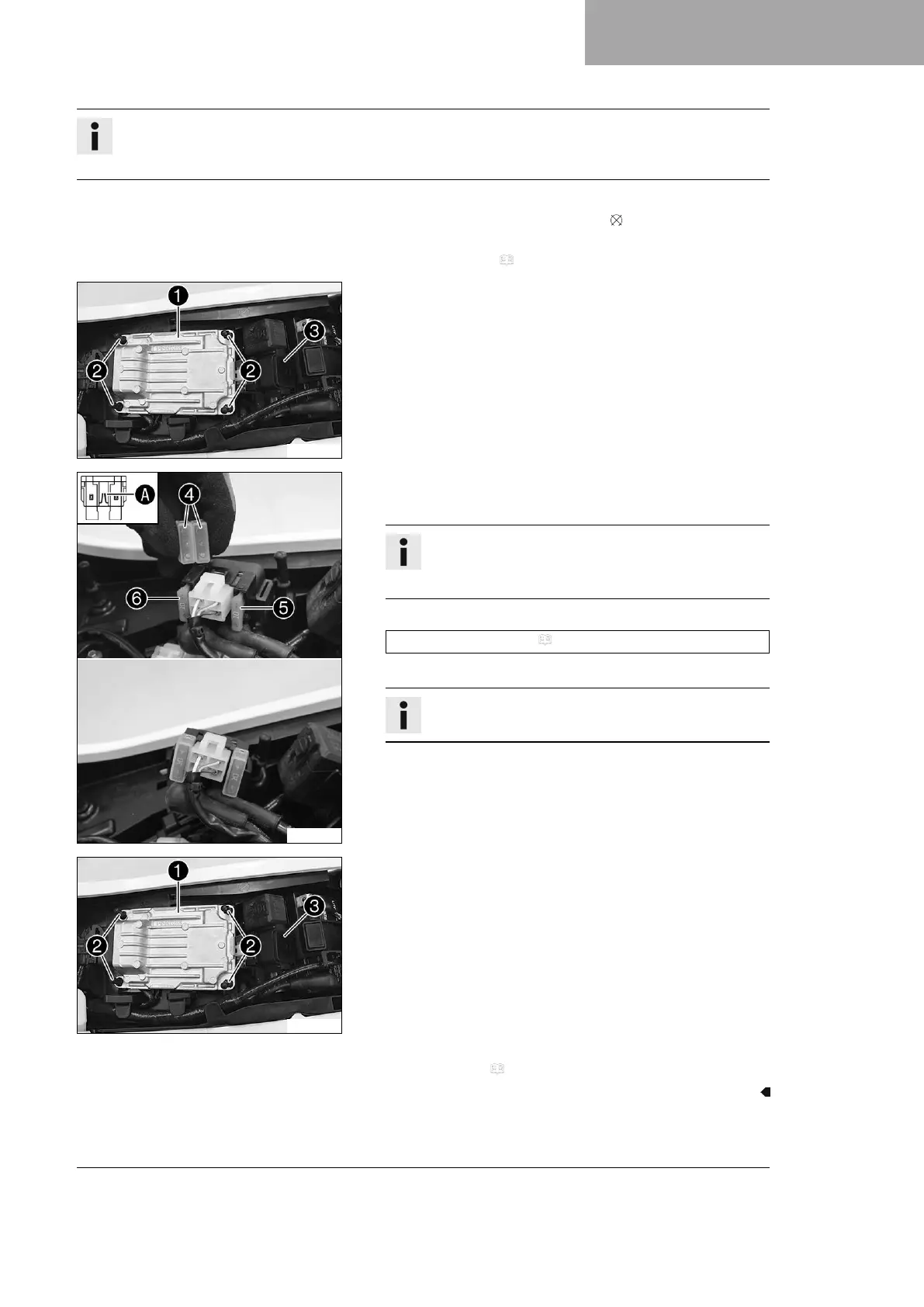

The main fuse protects all power consumers of the vehicle. It is located in the starter relay housing under
the seat.
Preparatory work
– Press and hold the switch-off button while the engine is
idling until the engine stops.
– Remove the seat. ( p. 59)
V01677-10
Main work
–
Pull EFI control unit
1
upward off rubber lugs
2
and hang
to the side.
–
Pull starter relay
3
from the holder.
V01678-10
–
Take off protection caps
4
.
–
Remove faulty main fuse
5
.
Info
A faulty fuse has a burned-out fuse wire
A
.
A spare fuse
6
is located in the starter relay.
– Insert a new main fuse.
Fuse (58011109110) ( p. 130)
– Check that the electrical system is functioning properly.
Tip
Insert a spare fuse so that it is available if needed.
– Mount the protection caps.
V01677-10
–
Mount starter relay
3
onto the holder and route the cable.
–
Mount the EFI control unit
1
on the rubber lugs
2
.
Finishing work
– Mount the seat. ( p. 59)

KTM 250 XC TPI Specifications

General

Displacement	249 cc
Bore x Stroke	66.4 mm x 72 mm
Transmission	6-speed
Starter	Electric starter
Front Brake	Disc brake, 260 mm
Rear Brake	Disc brake, 220 mm
Engine Type	2-stroke
Fuel System	TPI (Transfer Port Injection)
Frame	Central Tube Frame, Made of Chrome Molybdenum Steel
Front Suspension	WP Xplor 48, USD fork
Rear Suspension	WP XPLOR Shock with Linkage
Fuel Capacity	8.5 liters
