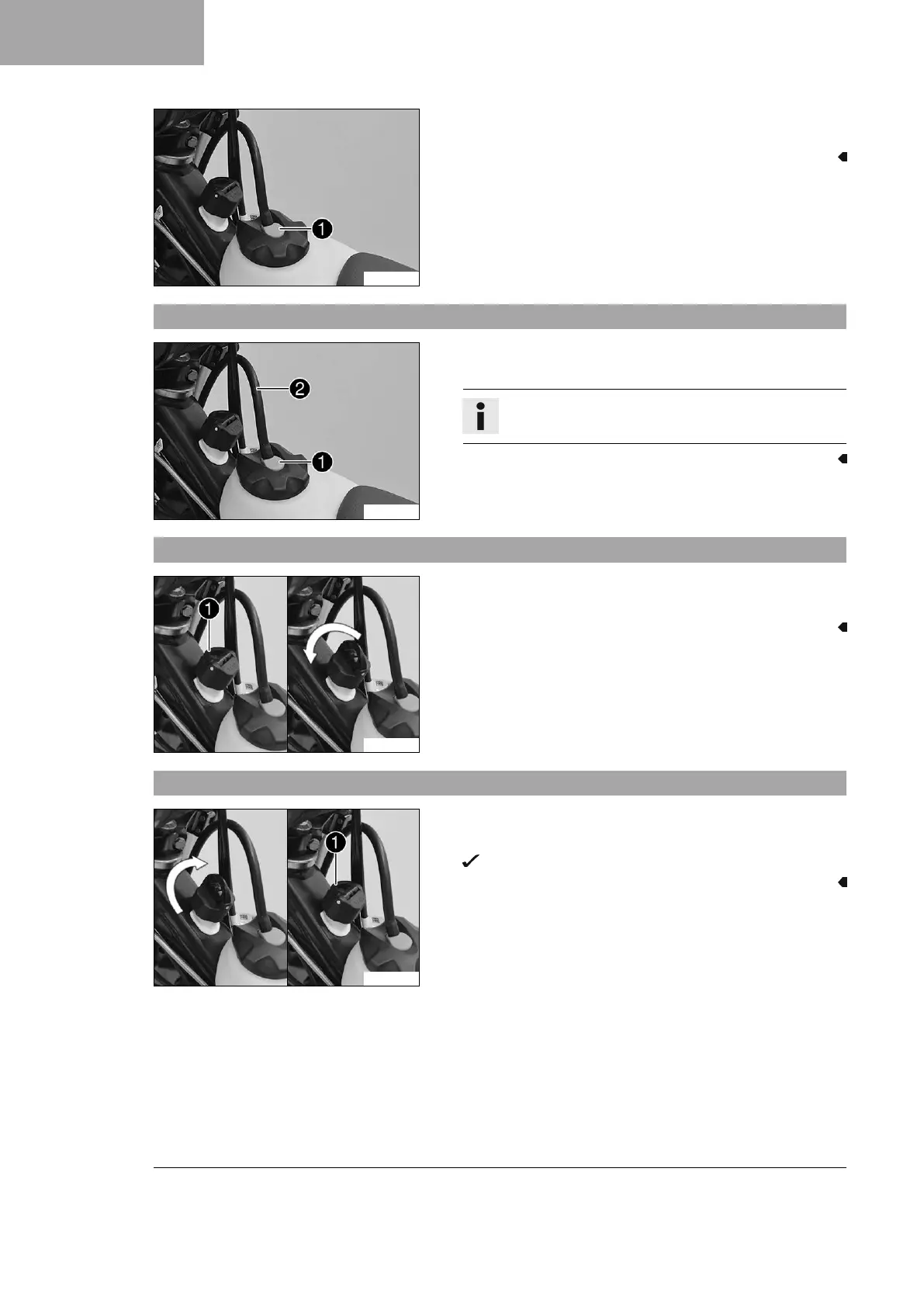

6 CONTROLS
16
V01646-10
–
Press release button
1
, turn the fuel tank filler cap counter-
clockwise, and lift it off.
6.8 Closing the fuel tank filler cap
V01646-11
–
Mount filler cap
1
and turn it clockwise until the release but-
ton engages.
Info
Route fuel tank breather hose
2
without kinks.
6.9 Opening 2-stroke oil tank cap
V01647-10
–
Fold loop
1
upward.
– Turn the 2-stroke oil tank cap counterclockwise and pull it up.
6.10 Closing 2-stroke oil tank cap
V01648-10
– Put the 2-stroke oil tank cap on and turn it clockwise.
–
Fold loop
1
down.
The 2-stroke oil tank cap engages.
