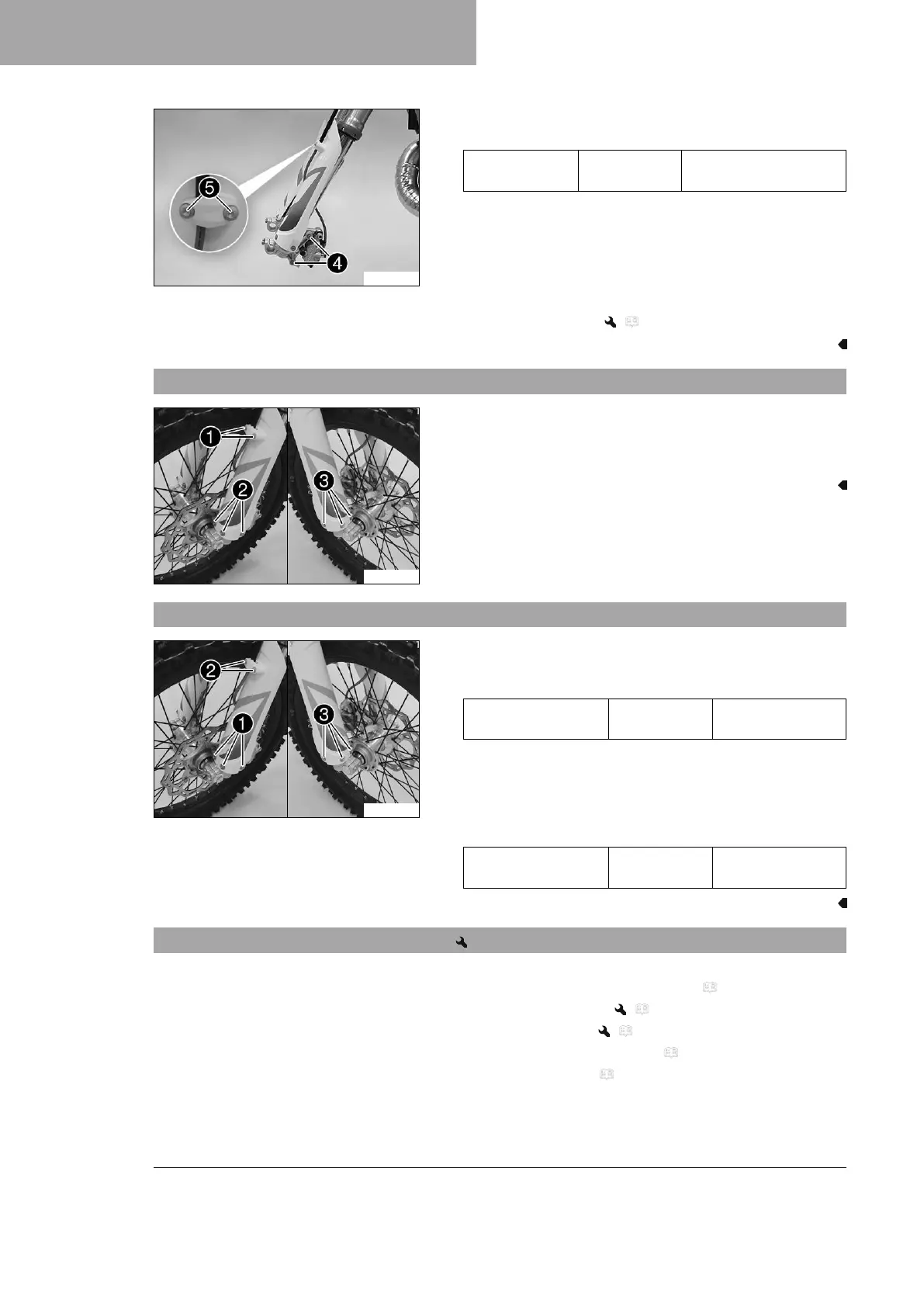

KTM 250 XC TPI User Manual

11 SERVICE WORK ON THE CHASSIS
50
V01693-11
–
Position the brake caliper. Mount and tighten screws
4
.
Guideline
Screw, front
brake caliper
M8 25 Nm (18.4 lbf ft)
Loctite
®
243™
– Position the brake line and the clamp. Mount and tighten
screws
5
.
Finishing work
– Install the front wheel. ( p. 91)
11.7 Removing the fork protector
V01656-10
–
Remove screws
1
. Remove the clamp.
–
Remove screws
2
. Take off the left fork protector.
–
Remove screws
3
. Take off the right fork protector.
11.8 Installing the fork protector
V01656-11
– Position the fork protection on the left fork leg. Mount and
tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
– Position the brake line and clamp. Mount and tighten
screws
2
.
– Position the fork protector on the right fork leg. Mount and
tighten screws
3
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
11.9 Removing the lower triple clamp
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 47)
– Remove the front wheel. ( p. 90)
– Remove the fork legs. ( p. 49)
– Remove the start number plate. ( p. 55)
– Remove front fender. ( p. 55)
– Remove the handlebar cushion.
