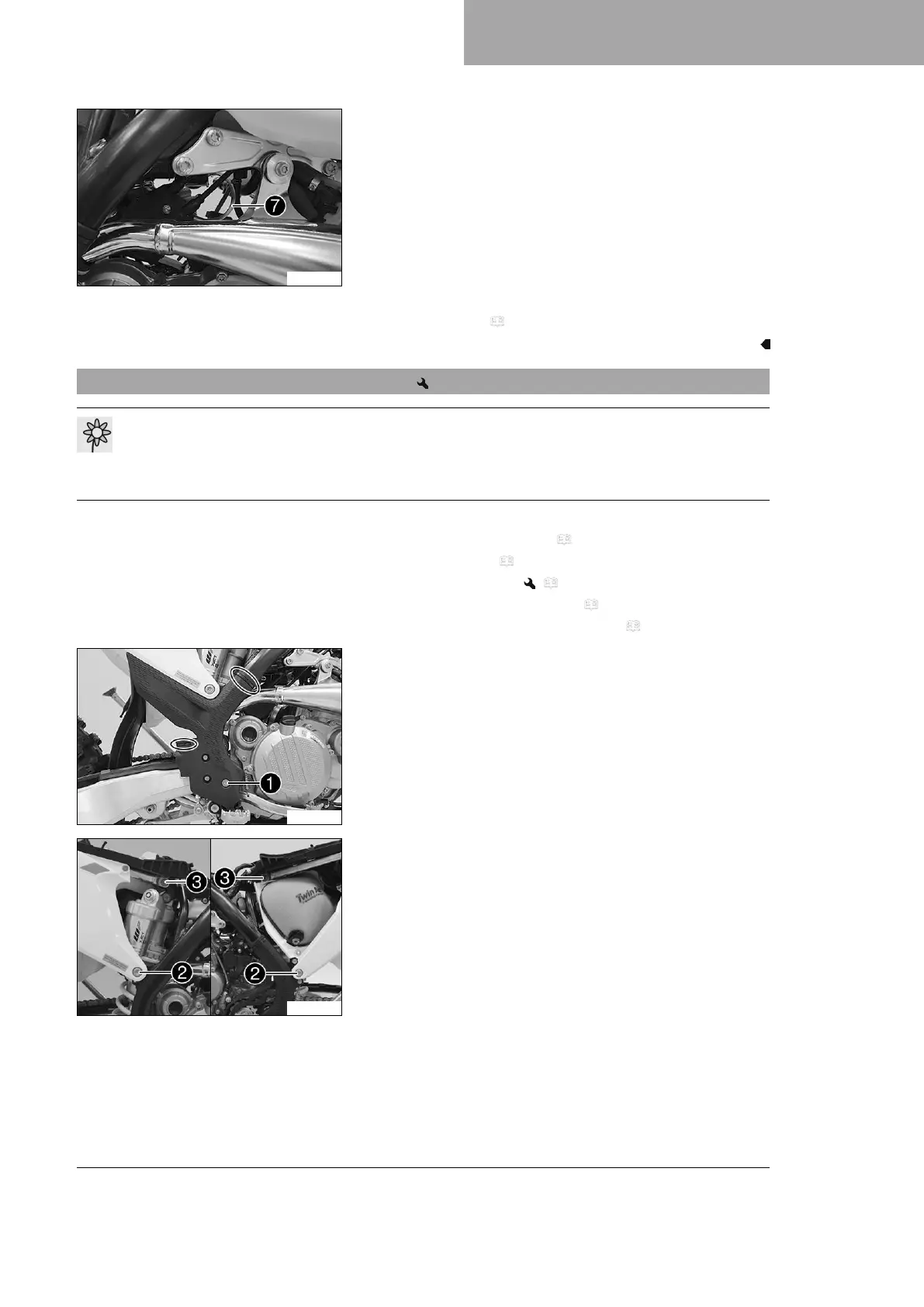

SERVICE WORK ON THE ENGINE 17
115
V01690-10
–
Check whether air bubbles are visible in the hose
7
.
» If air bubbles are visible:
– Repeat the entire procedure until air bubbles are no
longer visible.
– Mount protection cap on the diagnostics connector.
–
Mount the EFI control unit on the rubber lugs.
Finishing work
– Mount the seat. ( p. 59)
17.4 Cleaning the oil screen in the oil tank
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with
the applicable regulations.
Preparatory work
– Remove the main silencer. ( p. 63)
– Remove the seat. ( p. 59)
– Remove the fuel tank. ( p. 65)
– Remove the air filter box cover. ( p. 60)
– Raise the motorcycle with a lift stand. ( p. 47)
V01721-10
Main work
–
Remove screw
1
with the washer.
– Remove the cable ties and take off the frame protector.
V01722-10
–
Remove screws
2
.
–
Loosen screws
3
.

KTM 250 XC TPI Specifications

General

Displacement	249 cc
Bore x Stroke	66.4 mm x 72 mm
Transmission	6-speed
Starter	Electric starter
Front Brake	Disc brake, 260 mm
Rear Brake	Disc brake, 220 mm
Engine Type	2-stroke
Fuel System	TPI (Transfer Port Injection)
Frame	Central Tube Frame, Made of Chrome Molybdenum Steel
Front Suspension	WP Xplor 48, USD fork
Rear Suspension	WP XPLOR Shock with Linkage
Fuel Capacity	8.5 liters
