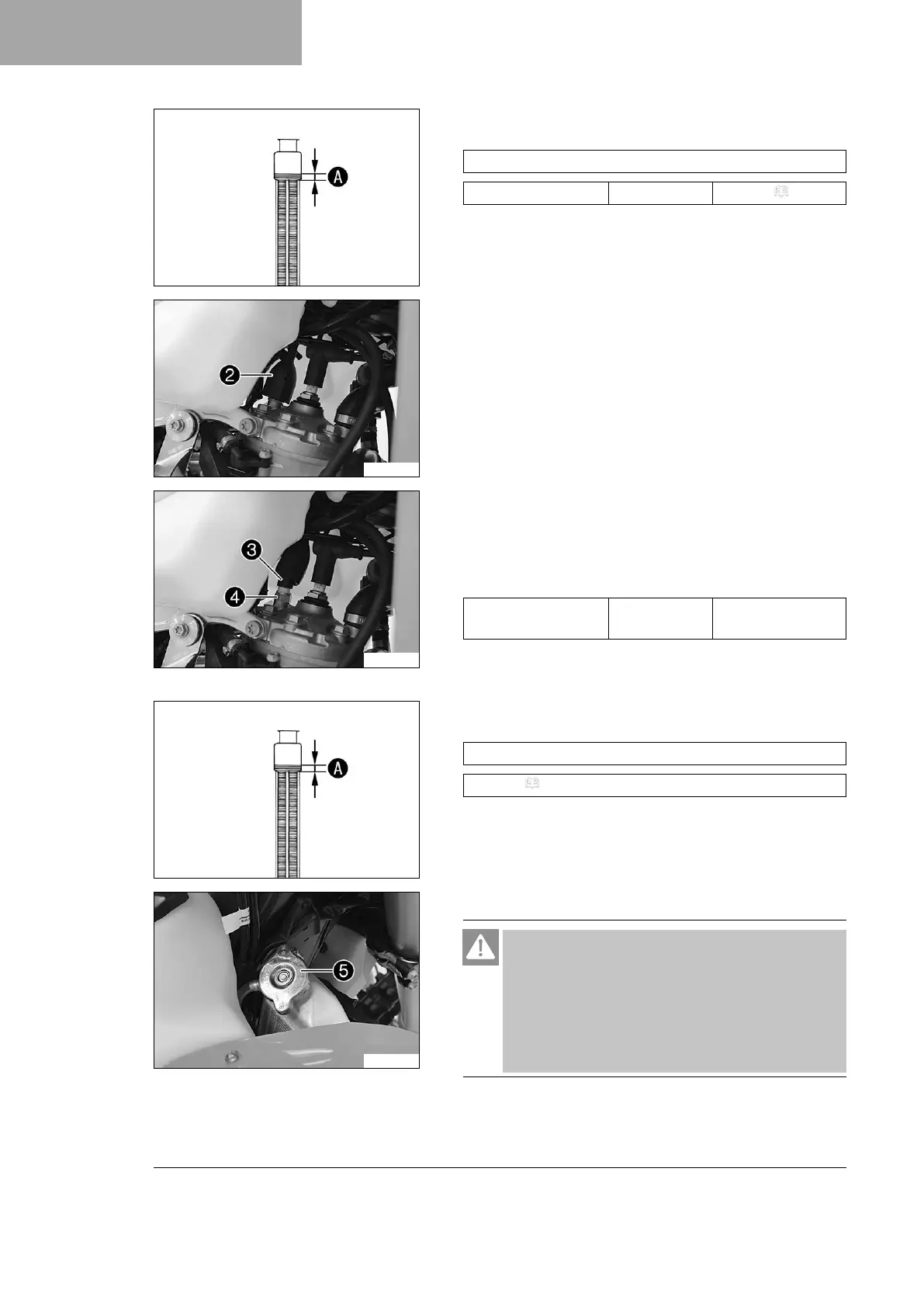

KTM 250 XC TPI User Manual

15 COOLING SYSTEM
104
400243-10
–
Pour coolant in up to measurement
A
above the radiator fins.
Guideline
10 mm (0.39 in)
Coolant 1.2 l (1.3 qt.) Coolant ( p. 134)
V01681-10
–
Push protection cap
2
upward over the thermostat.
V01682-10
–
Unplug connector
3
.
–
Remove thermostat
4
with O-ring and wait until the coolant
escapes without bubbles.
–
Mount thermostat
4
with the O-ring and tighten.
Guideline
Screw, cylinder head
temperature sensor
M10x1.25 12 Nm (8.9 lbf ft)
–
Plug in connector
3
.
–
Position protection cap
2
.
400243-10
–
Pour coolant in up to measurement
A
above the radiator fins.
Guideline
10 mm (0.39 in)
Coolant ( p. 134)
V01683-10
–
Mount radiator cap
5
.
Danger
Danger of poisoning Exhaust gases are toxic and inhal-
ing them may result in unconsciousness and death.
– Always make sure there is sufficient ventilation
when running the engine.
– Use effective exhaust extraction when starting or
running the engine in an enclosed space.
– Allow the engine to warm up and cool down again.

KTM 250 XC TPI Specifications

General

Displacement	249 cc
Bore x Stroke	66.4 mm x 72 mm
Transmission	6-speed
Starter	Electric starter
Front Brake	Disc brake, 260 mm
Rear Brake	Disc brake, 220 mm
Engine Type	2-stroke
Fuel System	TPI (Transfer Port Injection)
Frame	Central Tube Frame, Made of Chrome Molybdenum Steel
Front Suspension	WP Xplor 48, USD fork
Rear Suspension	WP XPLOR Shock with Linkage
Fuel Capacity	8.5 liters
