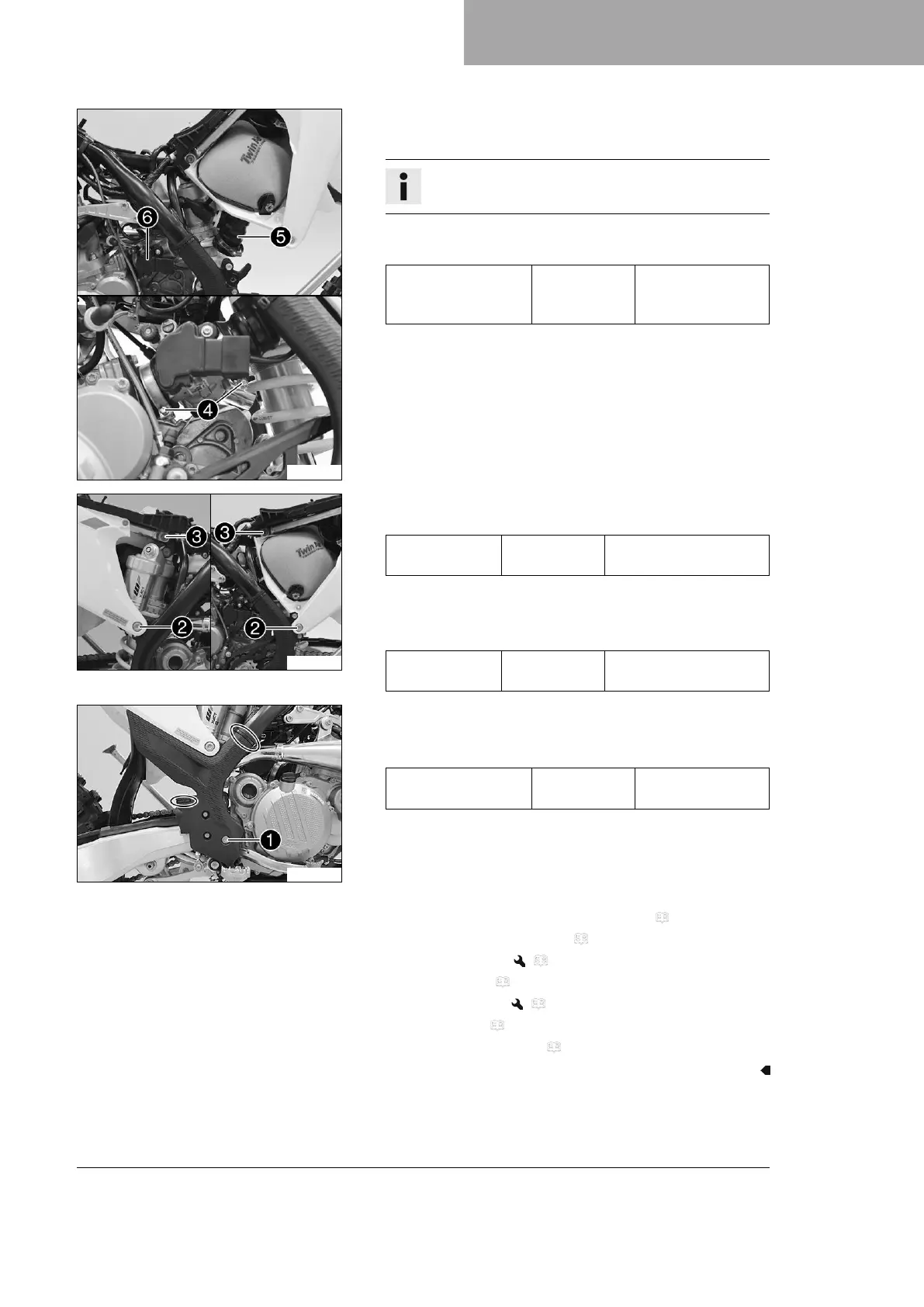

SERVICE WORK ON THE ENGINE 17
117
V01726-10
–
Mount throttle valve body
6
.
– Remove the locking piece and position the subframe.
Info
Pay attention to intake flange
5
.
–
Position and tighten clamps
4
of the throttle valve body.
Guideline
Screw, intake
flange/reed valve
housing
M6 6 Nm (4.4 lbf ft)
V01722-10
–
Mount and tighten screws
2
.
Guideline
Screw, sub-
frame bottom
M8x18 30 Nm (22.1 lbf ft)
Loctite
®
2701™
–
Remove screws
3
.
–
Mount and tighten screws
3
.
Guideline
Screw, sub-
frame top
M8x20 35 Nm (25.8 lbf ft)
Loctite
®
2701™
V01721-10
– Position the frame protector.
–
Mount and tighten screw
1
with the washer.
Guideline
Remaining screws,
chassis
M5 5 Nm (3.7 lbf ft)
– Mount the cable ties.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 47)
– Install the air filter box cover. ( p. 61)
– Install the fuel tank. ( p. 67)
– Add 2-stroke oil. ( p. 31)
– Prime the oil pump. ( p. 113)
– Mount the seat. ( p. 59)
– Install the main silencer. ( p. 64)
