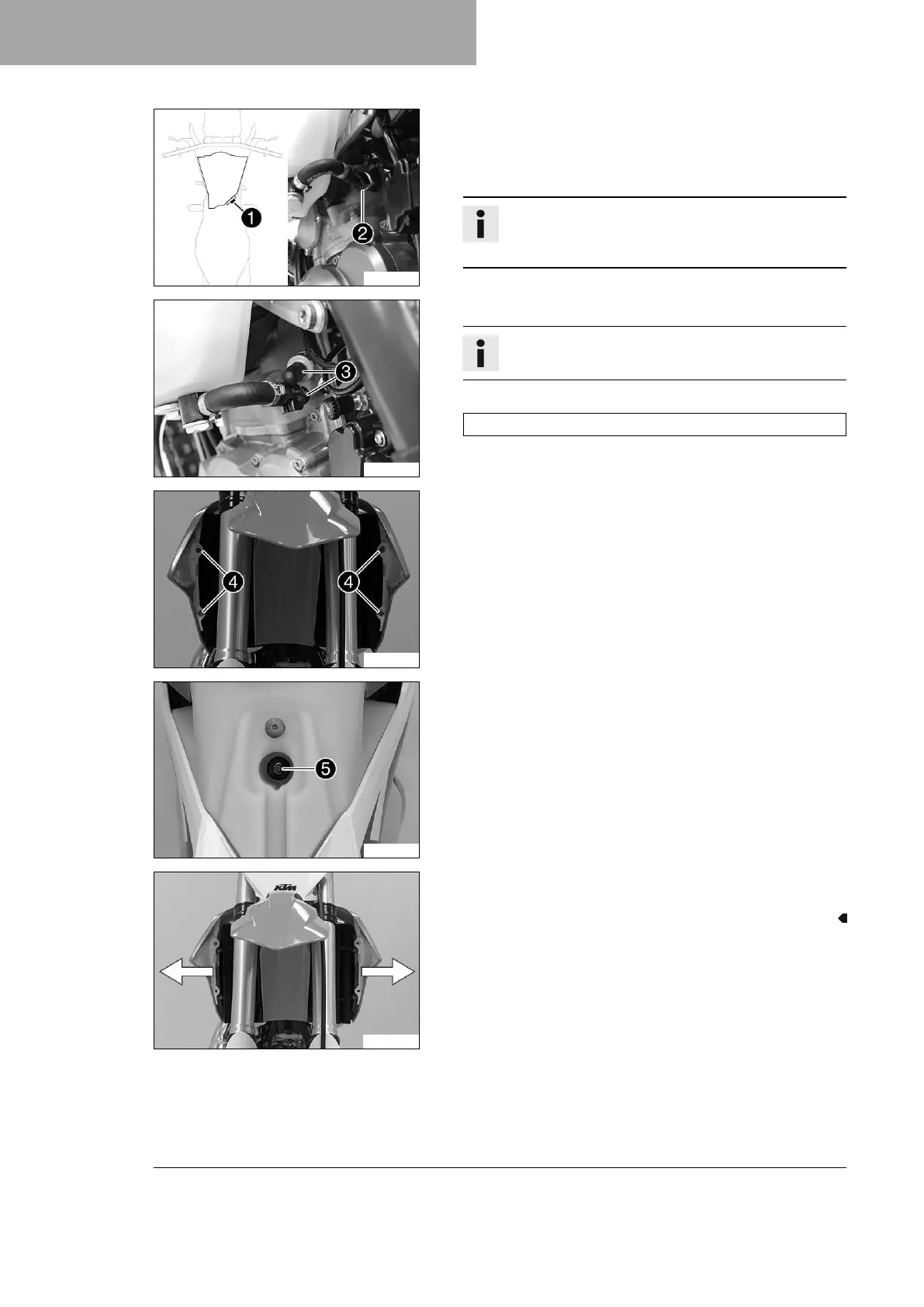

11 SERVICE WORK ON THE CHASSIS
66
V01590-10
Main work
–
Unplug connector
1
of the fuel pump.
–
Clean plug-in connection
2
of the fuel line thoroughly with
compressed air.
Info
Under no circumstances should dirt enter into the fuel
line. Dirt in the fuel line clogs the injection valve!
V01661-10
– Disconnect the plug-in connection of the fuel line.
Info
Remaining fuel may flow out of the fuel hose.
–
Mount wash cap set
3
.
Wash cap set (81212016100)
V01732-10
–
Remove screws
4
.
V01733-10
–
Remove screw
5
with the rubber bushing.
– Remove the hose from the fuel tank breather.
K01191-01
– Pull both spoilers laterally off the radiator and lift off the fuel
tank.

KTM 250 XC TPI Specifications

General

Displacement	249 cc
Bore x Stroke	66.4 mm x 72 mm
Transmission	6-speed
Starter	Electric starter
Front Brake	Disc brake, 260 mm
Rear Brake	Disc brake, 220 mm
Engine Type	2-stroke
Fuel System	TPI (Transfer Port Injection)
Frame	Central Tube Frame, Made of Chrome Molybdenum Steel
Front Suspension	WP Xplor 48, USD fork
Rear Suspension	WP XPLOR Shock with Linkage
Fuel Capacity	8.5 liters
