MAINTENANCE WORK ON CHASSIS AND ENGINE 22
ಥ Turn back counterclockwise the number of turns corresponding to the shock ab-
sorber type.
Specification
Compression damping, high-speed
Standard 1.5turns
Info
Turn clockwise to increase damping, turn counterclockwise to reduce sus-
pension damping.

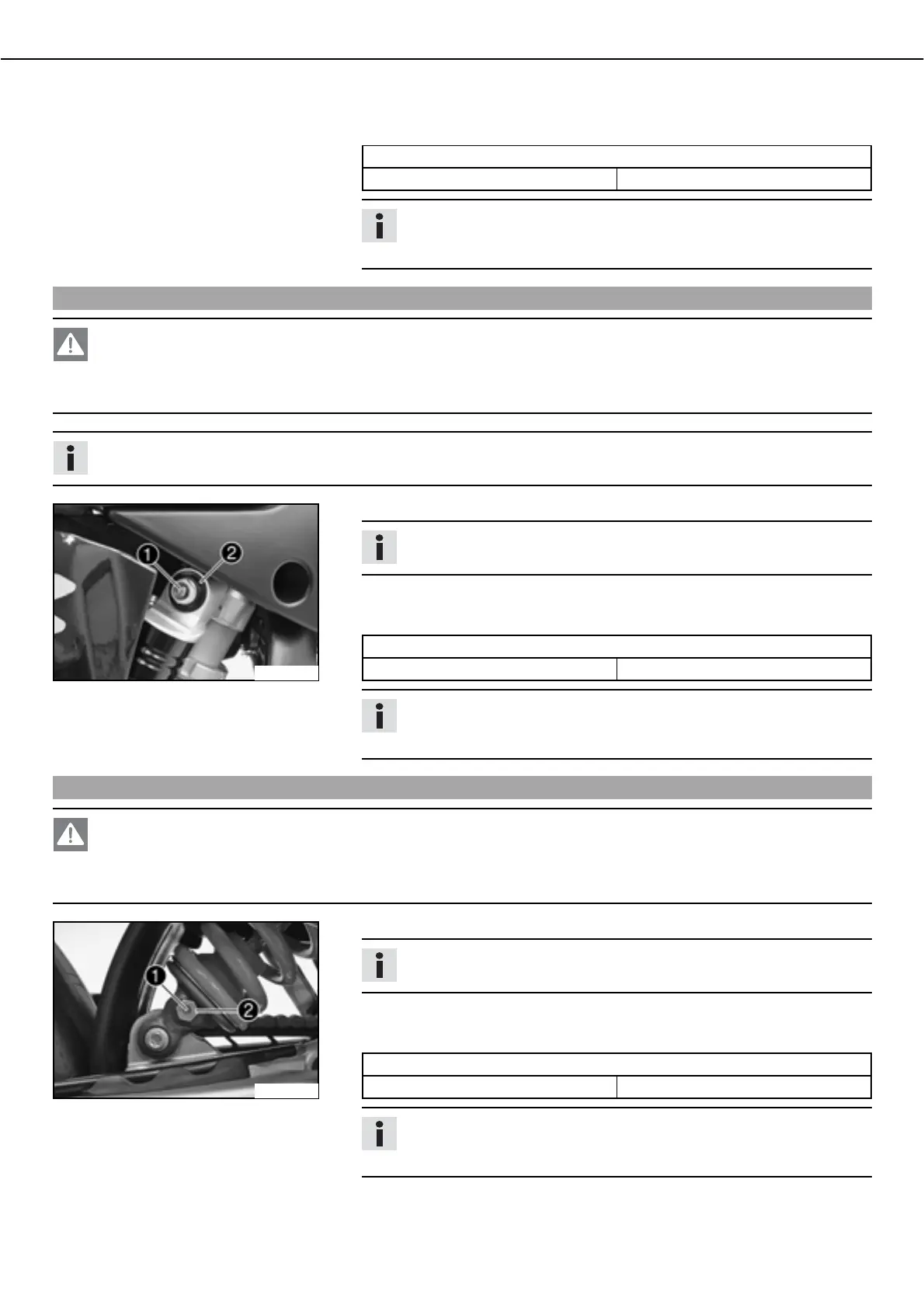

Adjusting the low-speed compression damping of the shock absorber
Danger
Danger of accidentsಗThe shock absorber is under high pressure.
ಥ The shock absorber is filled with highly compressed nitrogen, so never dismantle the shock absorber or carry out any main-
tenance on it yourself.
Info
The low-speed setting can be seen during the slow to normal compression of the shock absorber.
500184-11
ಥ Turn the adjusting screw clockwise with a screwdriver until it stops.
Info
Do not loosen nut!
ಥ Turn back counterclockwise the number of clicks corresponding to the shock ab-
sorber type.
Specification
Compression damping, low-speed
Standard 10clicks
Info
Turn clockwise to increase damping, turn counterclockwise to reduce sus-
pension damping.
Adjusting rebound damping of the shock absorber
Danger
Danger of accidentsಗThe shock absorber is under high pressure.
ಥ The shock absorber is filled with highly compressed nitrogen, so never dismantle the shock absorber or carry out any main-
tenance on it yourself.
500185-10
ಥ Turn the adjusting screw clockwise until it stops.
Info
Do not loosen nut!
ಥ Turn back counterclockwise the number of clicks corresponding to the shock ab-
sorber type.
Specification
Rebound damping
Standard 20clicks
Info
Turn clockwise to increase damping, turn counterclockwise to reduce sus-
pension damping.
