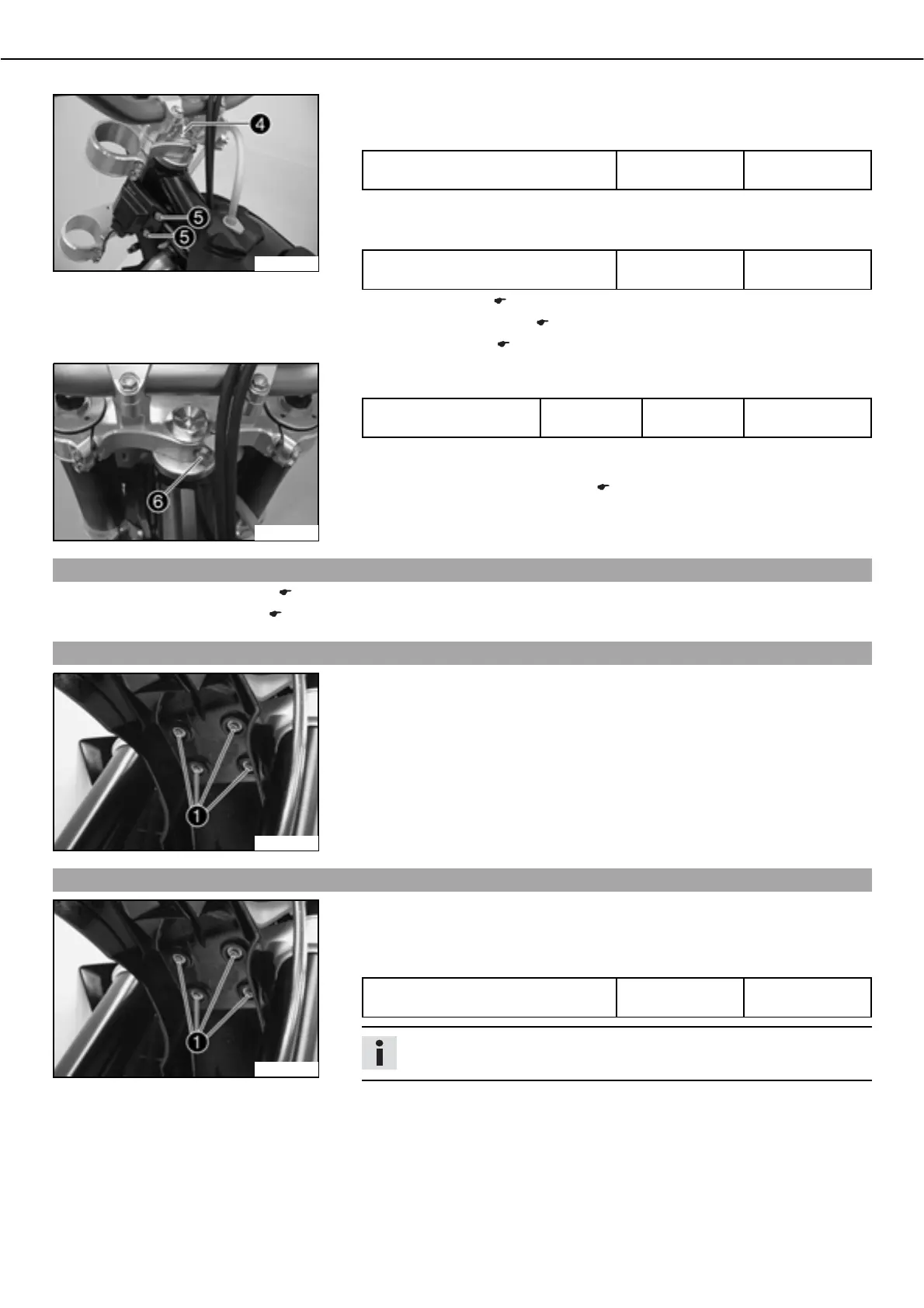

KTM 450 SMR 2008 User Manual

MAINTENANCE WORK ON CHASSIS AND ENGINE 31
500099-11
ಥ Position the upper triple clamp with the steering.
ಥ Mount and tighten screw
.
Specification
Screw, top steering head M20x1,5 10Nm
(7.38lbfft)
ಥ Position the clutch line, wiring harness and CDI control unit. Mount and tighten
screws
.
Specification
Remaining screws, chassis M6 10Nm
(7.38lbfft)
ಥ Install front fender. ( P. 31)
ಥ Fit the start number plate. ( P. 32)
ಥ Install the fork legs. ( P. 29)
500103-10
ಥ Mount and tighten screw.
Specification
Screw, top steering stem M8 17Nm
(12.54lbfft)
Loctite
®
243™
ಥ Check the cable harness, cable, brake and clutch line for free movement and free
laying.
ಥ Check play of steering head bearing. ( P. 27)
Greasing the steering head bearingx
ಥ Remove the lower triple clamp. ( P. 30)
ಥ Install the lower triple clamp. ( P. 30)
Dismounting the front fender
500190-10
ಥ Remove screws. Remove the front fender.
ಥ Make sure that the distance bushings remain in place.
Installing the front fender
500190-10
ಥ Check parts for damage and wear. Replace damaged or worn parts.
ಥ Make sure that the spacing sleeves are mounted in the fender.
ಥ Position the front fender. Mount and tighten screws
.
Specification
Remaining screws, chassis M6 10Nm
(7.38lbfft)
Info
Take care with the contact of the holding lugs to the start number plate.
