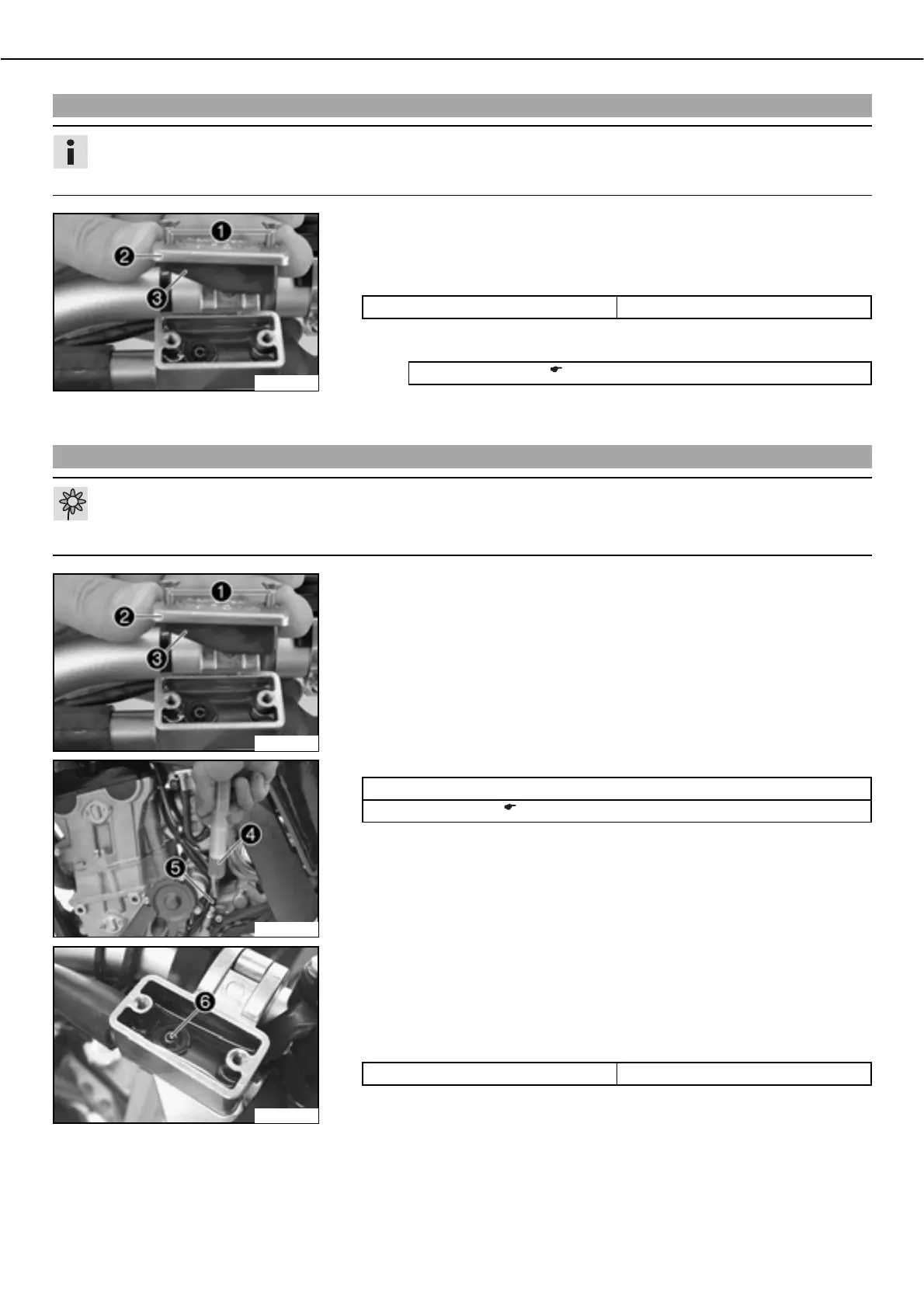

MAINTENANCE WORK ON CHASSIS AND ENGINE 60
Checking fluid level of hydraulic clutch
Info
The fluid level rises with increasing wear of the clutch lining disc.
Do not use brake fluid.
400245-10
ಥ Move the clutch fluid reservoir mounted on the handlebar to a horizontal position.
ಥ Remove screws
.
ಥ Remove the cover
with membrane.
ಥ Check the fluid level.
Fluid level under top level of container. 4mm (0.16in)
» If the level of the cooling liquid does not meet specifications:
ಥ Correct the fluid level of the hydraulic clutch.
Hydraulic fluid (15) ( P. 82)
ಥ Check parts for damage and wear. Replace damaged or worn parts.
ಥ Position the cover with the membrane. Mount and tighten screws.
Changing fluid level of hydraulic clutchx
Warning
Environmental hazardಗProblem materials cause environmental damage.
ಥ Dispose of oil, grease, filters, fuel, cleaning substances, brake fluid, batteries, etc. according to regulations.
400245-10
ಥ Move the clutch fluid reservoir mounted on the handlebar to a horizontal position.
ಥ Remove screws
.
ಥ Remove the cover
with membrane.
500224-10
ಥ Fill the bleeding syringe with the appropriate hydraulic fluid.
Bleed syringe (50329050000)
Hydraulic fluid (15) ( P. 82)
ಥ On the slave cylinder, remove the bleeder screw
and fit the bleeding syringe.
400247-10
ಥ Inject the liquid into the system until it escapes from the bore hole of the mas-
ter cylinder without bubbles.
ಥ To prevent overflow, drain fluid occasionally from the master cylinder reservoir.
ಥ Remove the bleeding syringe. Mount and tighten screws bleeder screw.
ಥ Correct the fluid level of the hydraulic clutch.
Specification
Fluid level under top level of container. 4mm (0.16in)
ಥ Check parts for damage and wear. Replace damaged or worn parts.
ಥ Position the cover with the membrane. Mount and tighten screws.
