KTM 450 SMR 2008 User Manual

MAINTENANCE WORK ON CHASSIS AND ENGINE 29

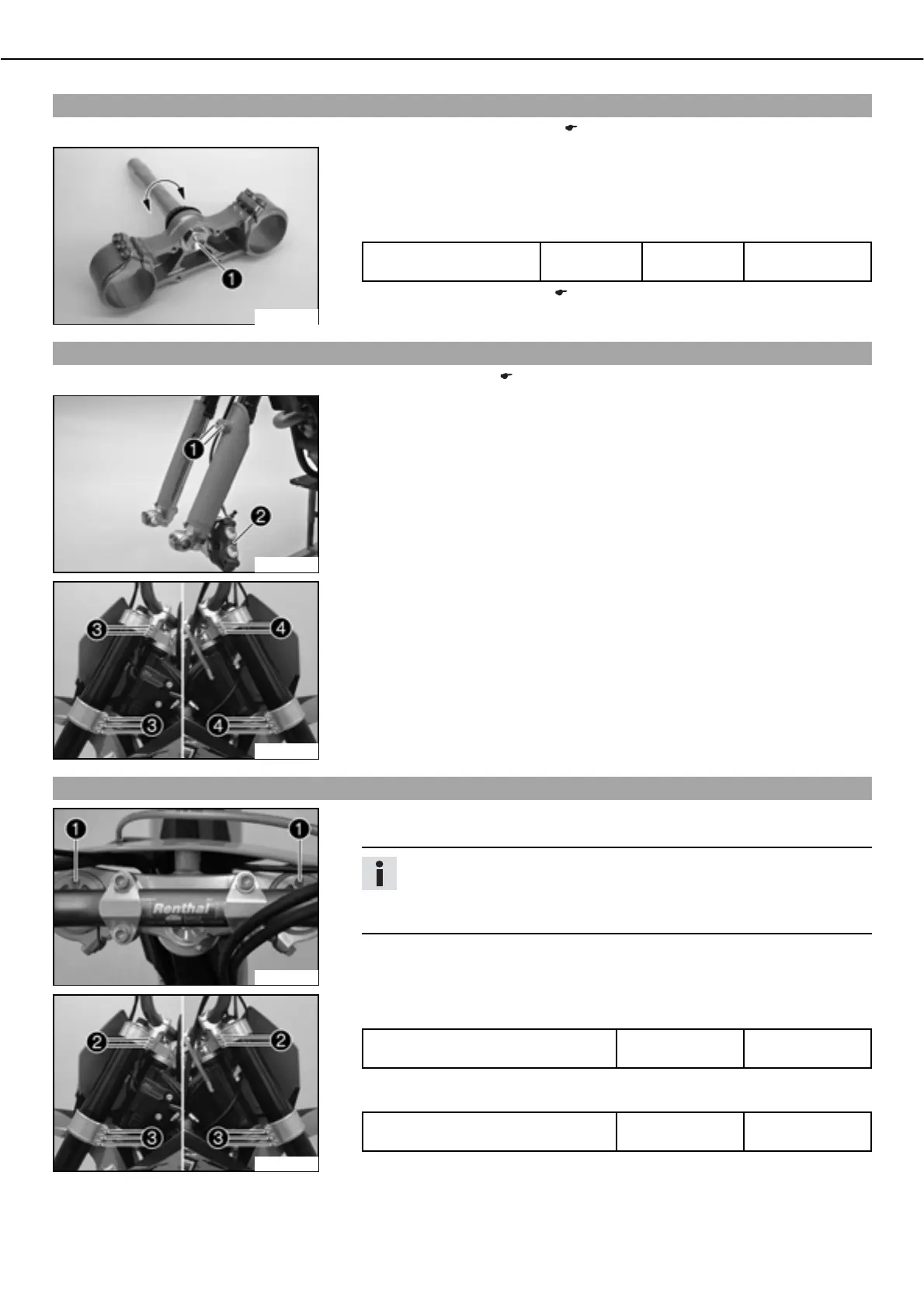

Setting the fork offsetx
ಥ Remove the lower triple clamp. ( P. 30)
500104-10
ಥ Remove screw. Remove the steering stem.
ಥ Clean the parts and check for damage.
ಥ Rotate the steering stem 180° and insert into the triple clamp. Mount and tighten
screw
.
Specification
Screw, bottom steering
head
M20x1,5 60Nm
(44.26lbfft)
Loctite
®
243™
ಥ Install the lower triple clamp. ( P. 30)
Removing the fork legsx
ಥ Remove front wheel. ( P. 46)
500200-12
ಥ Remove screws and take off clamp.
ಥ Hang the brake caliper
 and the brake line loosely to the side.
500094-12
ಥ Loosen screw. Remove the fork leg on the left.
ಥ Loosen screw
. Remove the fork leg on the right.
Installing the fork legsx
400248-10
ಥ Check parts for damage and wear. Replace damaged or worn parts.
ಥ Position the fork legs.
Info
The topmost sunk nut in the fork leg must be flush to the upper edge of the
upper triple clamp.
Position the bleeder screw
 to the front.
500094-11
ಥ Fully tighten screw.
Specification
Screw, top triple clamp M8 17Nm
(12.54lbfft)
ಥ Fully tighten screw
.
Specification
Screw, bottom triple clamp M8 12Nm
(8.85lbfft)
