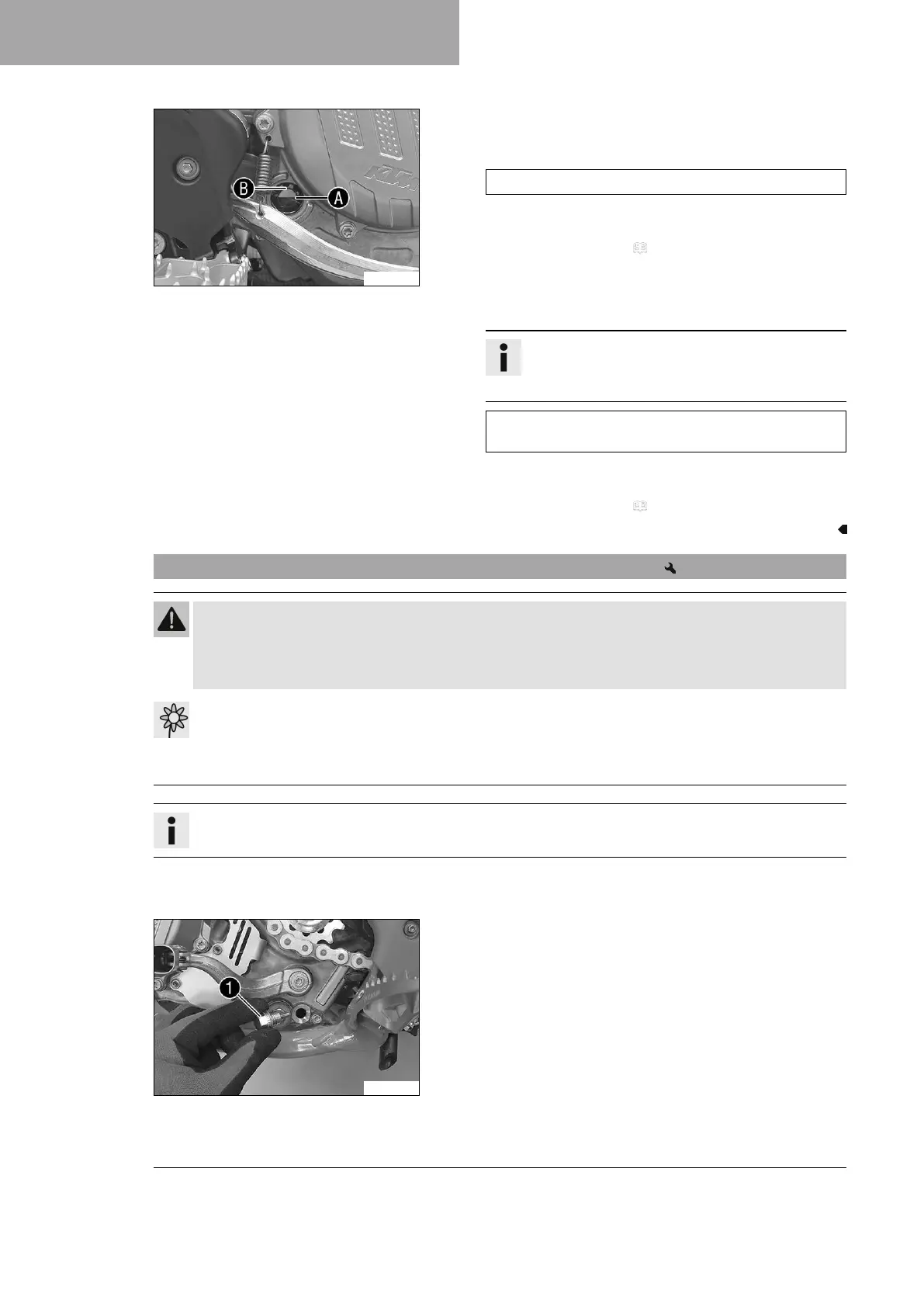

17 SERVICE WORK ON THE ENGINE
116
F01552-10
Condition
The engine is cold.
– Check the engine oil level.
The engine oil reaches the middle of level viewer
A
.
» If the engine oil does not reach the middle of the level
viewer:
– Add engine oil. ( p. 119)
Condition
The engine is at operating temperature.
– Check the engine oil level.
Info
After switching off the engine, wait one minute
before checking the level.
The engine oil level is between the middle of the level
viewer
A
and the upper edge of the level viewer
B
.
» If the engine oil does not reach the middle of level
viewer
A
:
– Add engine oil. ( p. 119)
17.3 Changing the engine oil and oil filter, cleaning the oil screens
Warning
Danger of scalding Engine and gear oil get very hot when the motorcycle is ridden.
– Wear suitable protective clothing and safety gloves.
– In the event of scalding, rinse the area affected immediately with lukewarm water.
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with
the applicable regulations.
Info
Drain the engine oil while the engine is at operating temperature.
Preparatory work
– Park the motorcycle on a level surface.
S02287-10
Main work
– Place an appropriate container under the engine.
–
Remove oil drain plug
1
with the magnet and seal ring.
