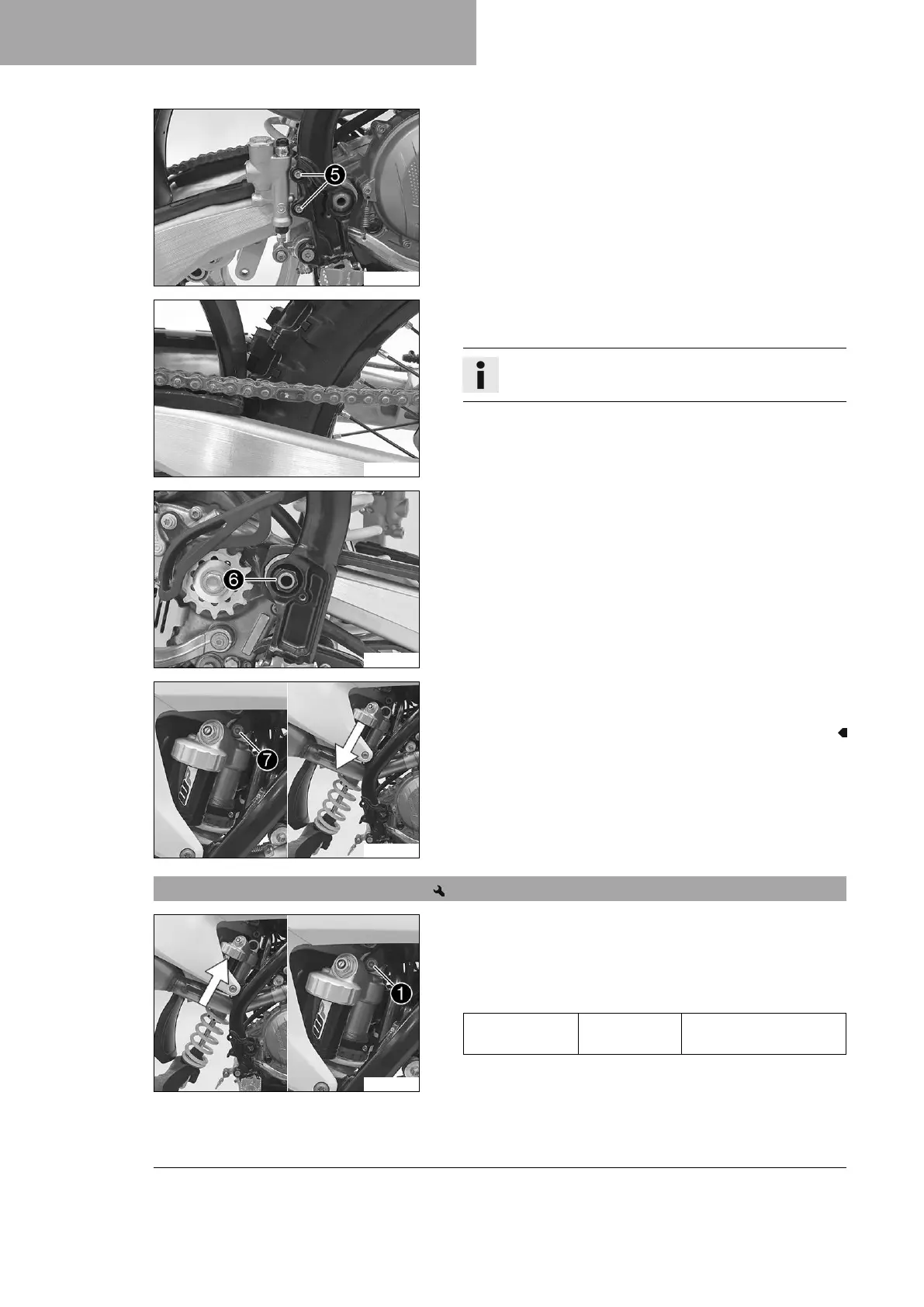

11 SERVICE WORK ON THE CHASSIS
60
F01554-10
–
Remove screws
5
.
– Pull off foot brake cylinder from the push rod.
S01222-10
– Remove the connecting link of the chain.
– Take off the chain.
Info
Cover the components to protect them against damage.
F01529-10
–
Remove nut
6
and the swingarm pivot.
– Push the link fork back and secure it against falling over.
F01530-10
–
Hold the shock absorber and remove screw
7
.
– Remove the shock absorber carefully at the bottom.
11.19 Installing the shock absorber
F01531-10
Main work
– Carefully position the shock absorber into the vehicle from the
bottom.
–
Mount and tighten screw
1
.
Guideline
Screw, top
shock absorber
M10 60 Nm (44.3 lbf ft)
Loctite
®
2701™
