SERVICE WORK ON THE CHASSIS 11
53

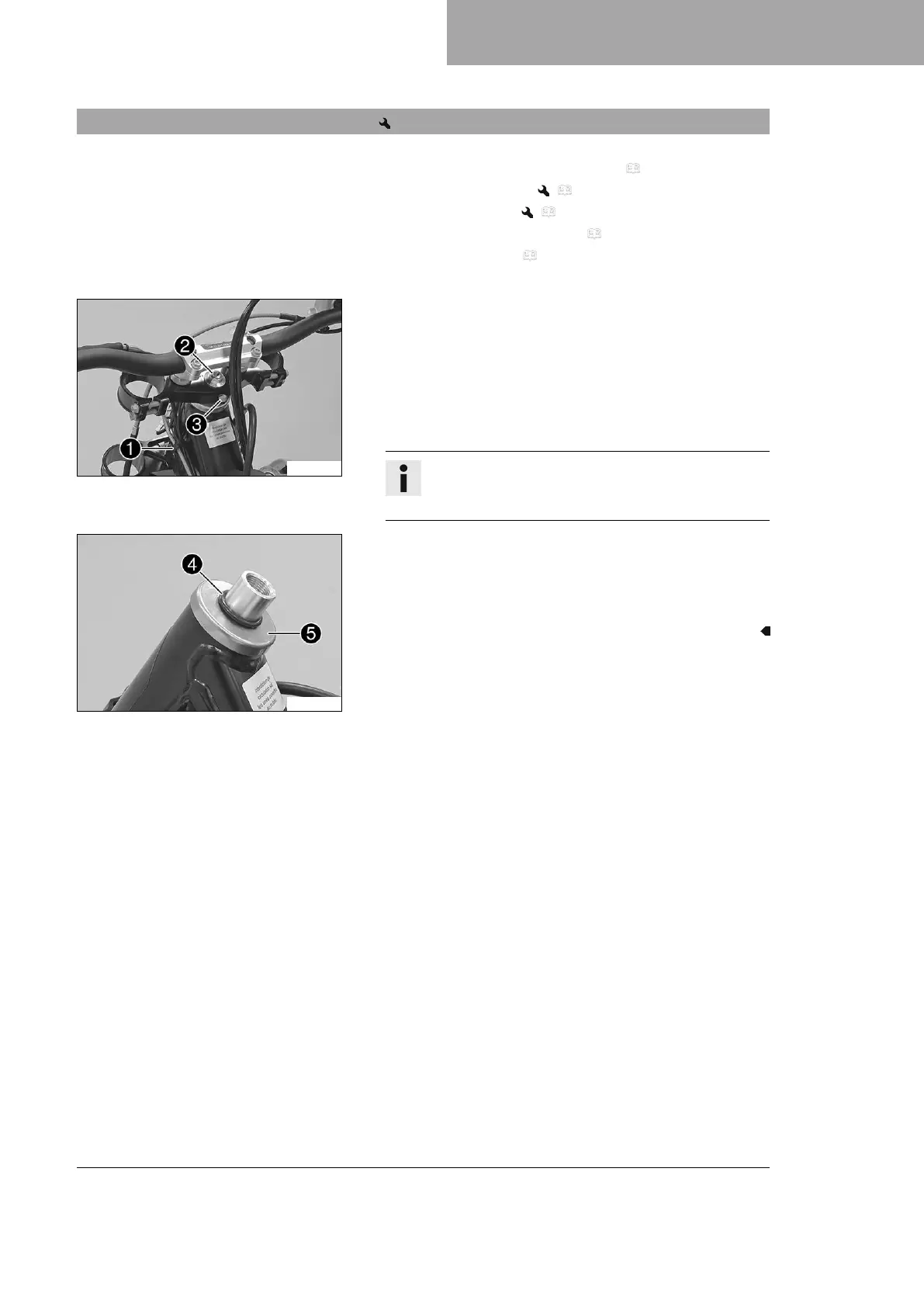

11.9 Removing the lower triple clamp
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 49)
– Remove the front wheel. ( p. 94)
– Remove the fork legs. ( p. 51)
– Remove the start number plate. ( p. 57)
– Remove front fender. ( p. 58)
– Remove the handlebar cushion.
F01561-10
Main work
–
Open cable holder
1
on the left and detach the wiring har-
ness.
–
Remove screw
2
.
–
Remove screw
3
.
– Remove the upper triple clamp with the handlebar and set
aside.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
F01560-10
–
Remove O-ring
4
.
–
Remove protective ring
5
.
– Remove the lower triple clamp with the steering stem.
– Remove the upper steering head bearing.
