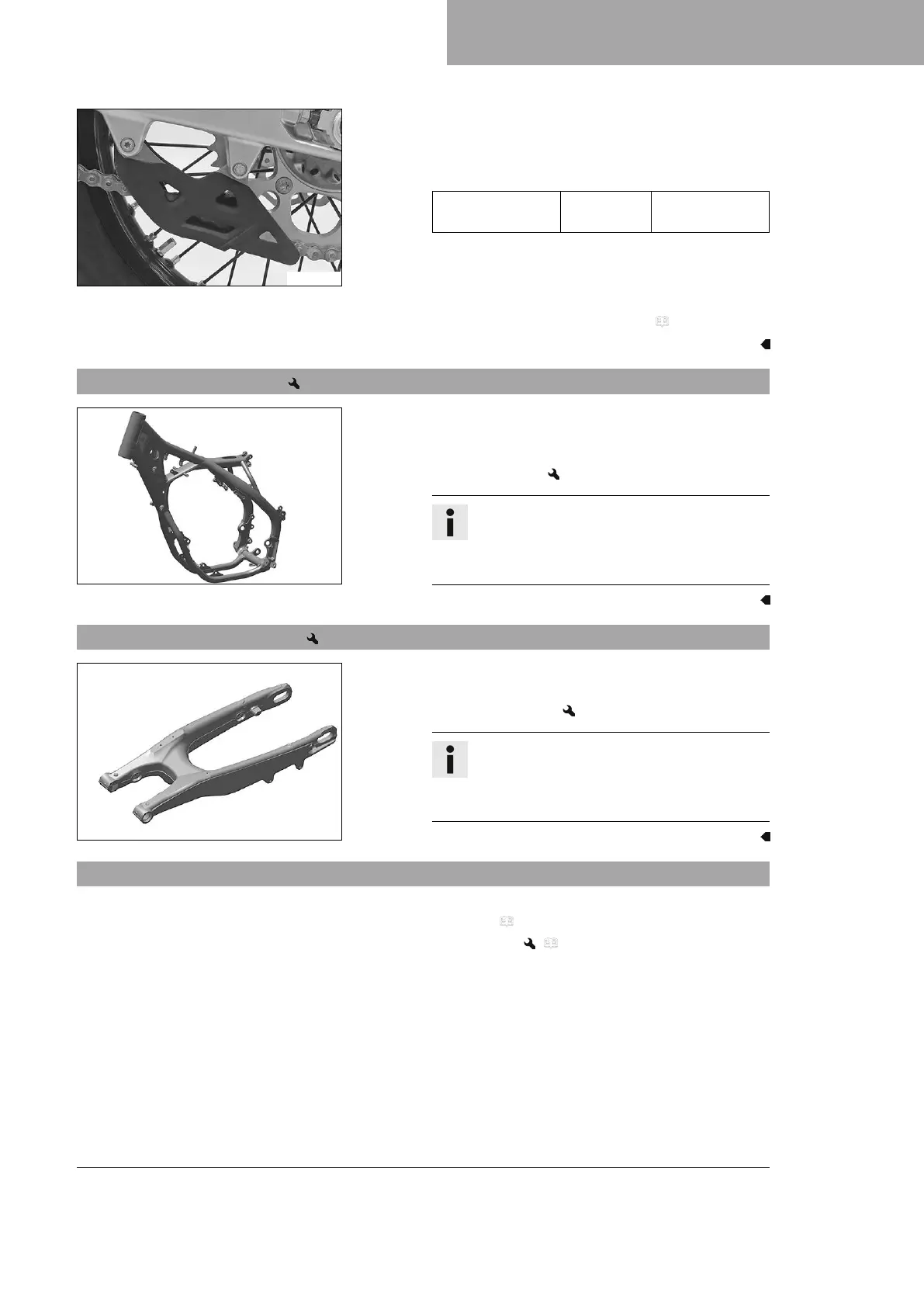

SERVICE WORK ON THE CHASSIS 11
77
F01553-01
– Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the screws on the chain guide.
Guideline
Remaining screws,
chassis
M6 10 Nm
(7.4 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 49)
11.38 Checking the frame
S02306-01
– Check the frame for cracks and deformation.
» If the frame exhibits cracks or deformation due to a
mechanical impact:
– Change the frame.
Info
Always replace a frame that has been dam-
aged due to a mechanical impact. Repair of the
frame is not authorized by KTM.
11.39 Checking the link fork
S02305-01
– Check the link fork for damage, cracking, and deformation.
» If the link fork exhibits damage, cracking, or deformation:
– Change the link fork.
Info
Always replace a damaged link fork. Repair-
ing the link fork is not authorized by Husqvarna
Motorcycles.
11.40 Checking throttle cable routing
Preparatory work
– Remove the seat. ( p. 62)
– Remove the fuel tank. ( p. 68)
