11 SERVICE WORK ON THE CHASSIS
68
311691-10

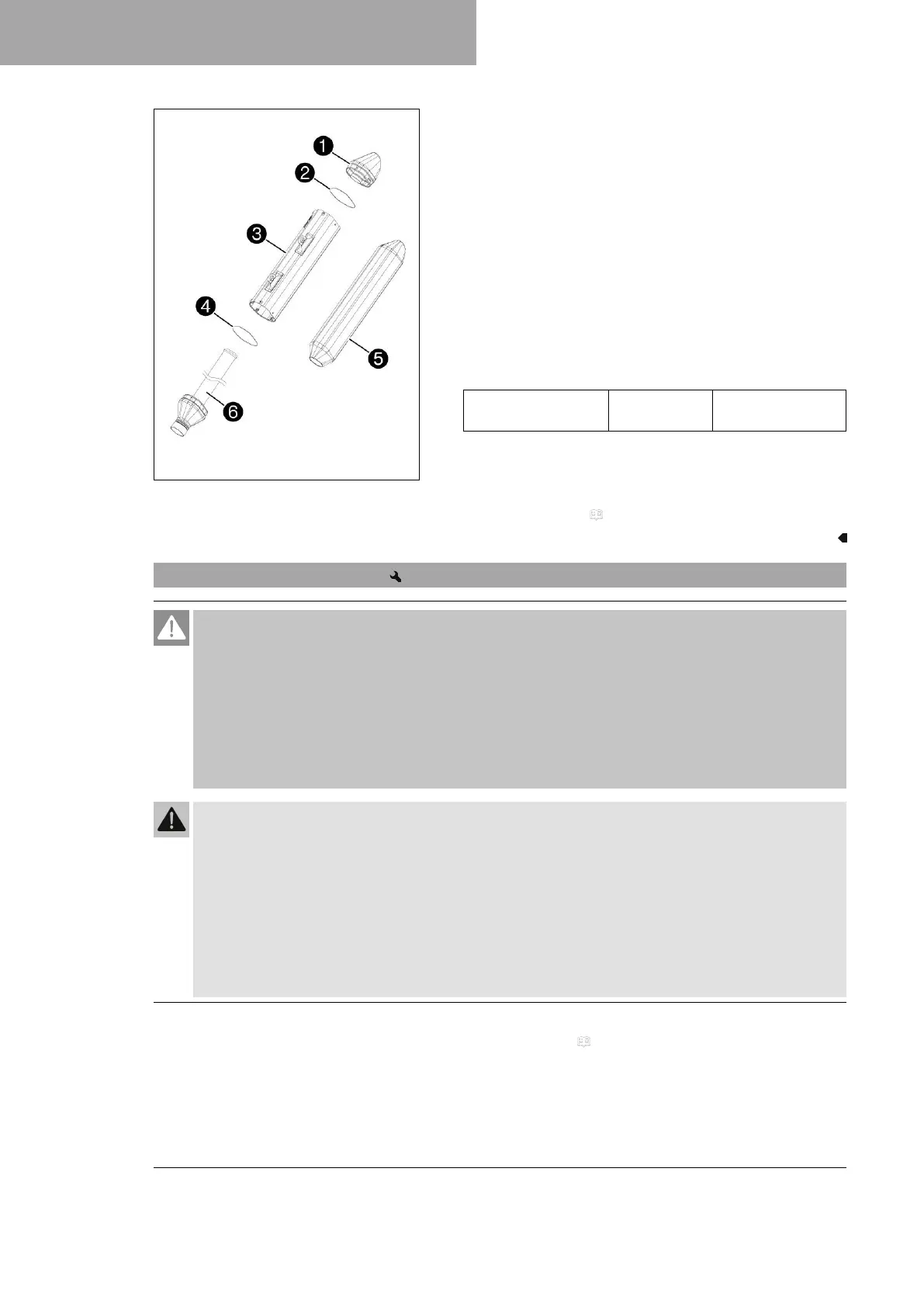

Main work
– Remove all the screws on the main silencer.
–
Take off silencer cap
1
and O-ring
2
.
–
Take off outer tube
3
and O-ring
4
.
–
Pull glass fiber yarn filling
5
off of inner tube
6
.
– Clean the parts that need to be reinstalled and check for dam-
age.
–
Mount new glass fiber yarn filling
5
on inner tube
6
.
–
Slide O-ring
4
and outer tube
3
over glass fiber yarn fill-
ing
5
.
–
Insert O-ring
2
and silencer cap
1
into outer tube
3
.
– Mount and tighten all of the screws.
Guideline
Screws on main
silencer
M5 7 Nm (5.2 lbf ft)
Finishing work
– Install the silencer. ( p. 67)
11.31 Removing the fuel tank
Danger
Fire hazard Fuel is highly flammable.
The fuel in the fuel tank expands when warm and can escape if overfilled.
– Do not refuel the vehicle in the vicinity of open flames or lit cigarettes.
– Switch off the engine for refueling.
– Make sure that no fuel is spilled; particularly not on hot parts of the vehicle.
– If any fuel is spilled, wipe it off immediately.
– Observe the specifications for refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Avoid skin, eye and clothing contact with fuel.
– Immediately consult a doctor if you swallow fuel.
– Do not inhale fuel vapors.
– In case of skin contact, rinse the affected area with plenty of water.
– Rinse the eyes thoroughly with water, and consult a doctor in case of fuel contact with the eyes.
– Change your clothing in case of fuel spills on them.
– Keep fuels correctly in a suitable canister, and out of the reach of children.
Preparatory work
– Remove the seat. ( p. 62)
Main work
– Pull the fuel tank breather hose off the fuel tank lid.
