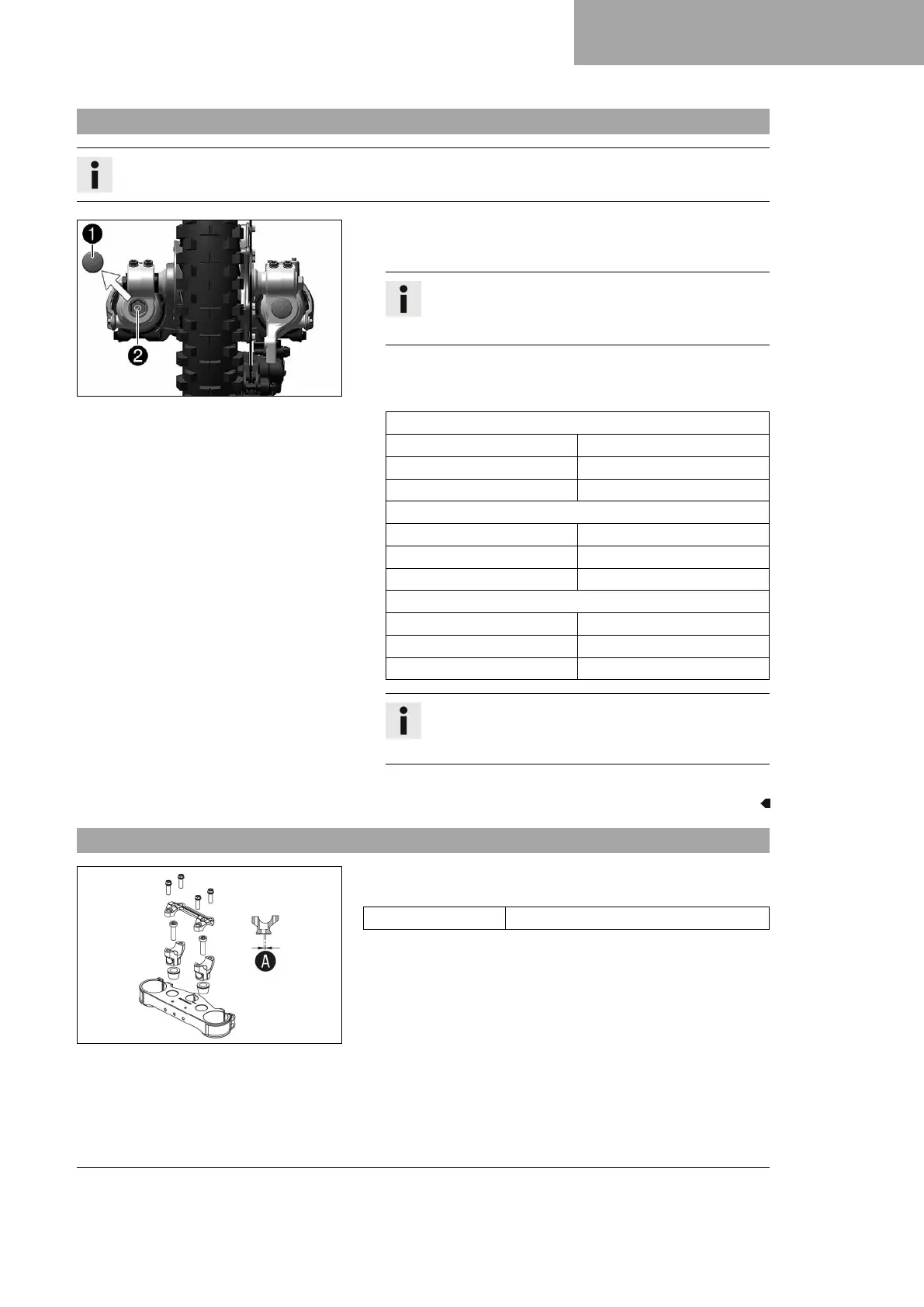

TUNING THE CHASSIS 10
47
10.15 Adjusting the rebound damping of the fork
Info
The hydraulic rebound damping determines the fork suspension behavior.
M01100-10
Remove protection cap
1
.
Turn adjusting screw
2
clockwise all the way.
Info
Adjusting screw
2
is located at the lower end of the
right fork leg.
Turn counterclockwise by the number of clicks corresponding
to the fork type.
Guideline
Rebound damping (SXF EU)
Comfort 17 clicks
Standard 12 clicks
Sport 7 clicks
Rebound damping (SXF US)
Comfort 23 clicks
Standard 18 clicks
Sport 13 clicks
Rebound damping (XCF US)
Comfort 17 clicks
Standard 12 clicks
Sport 7 clicks
Info
Turn clockwise to increase the damping; turn counter-
clockwise to reduce the damping.
Mount protection cap
1
.
10.16 Handlebar position
H01188-10
The holes on the handlebar supports are placed at a distance
of
A
from the center.
Hole distance A 3.5 mm (0.138 in)
The handlebar can be mounted in 2 different positions. In this
way, the handlebar can be mounted in the most comfortable posi-
tion for the rider.
