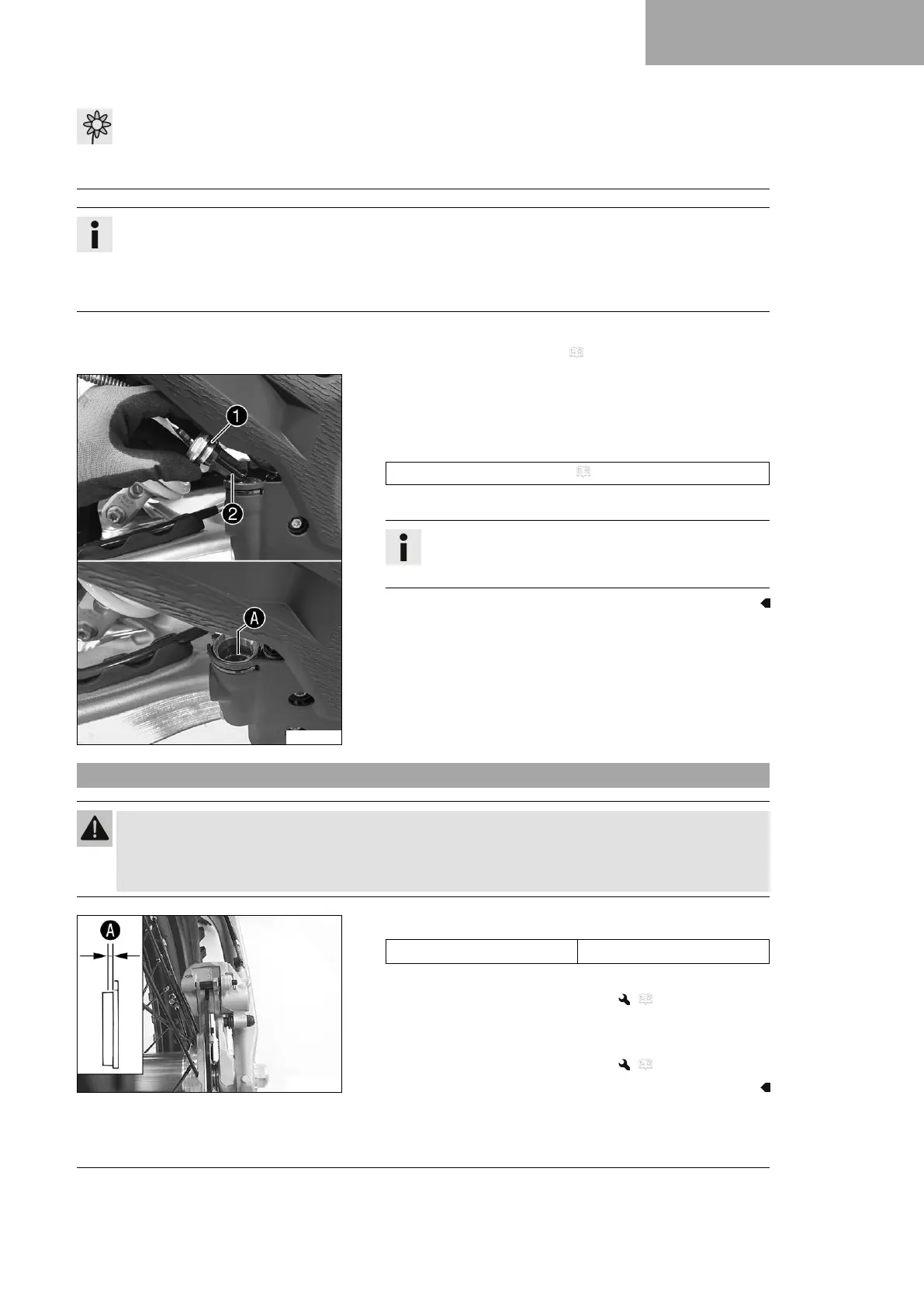

BRAKE SYSTEM 13
109
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with
the applicable regulations.
Info
Never use DOT 5 brake fluid. It is silicone-based and purple in color. Oil seals and brake lines are not
designed for DOT 5 brake fluid.
Avoid contact between brake fluid and painted parts. Brake fluid attacks paint.
Only use clean brake fluid from a sealed container.
Preparatory work
– Check the rear brake linings. ( p. 109)
K01347-10
Main work
– Stand the vehicle upright.
–
Remove screw cap
1
with membrane
2
and the O-ring.
–
Add brake fluid to level
A
.
Brake fluid DOT 4 / DOT 5.1 ( p. 164)
– Mount the screw cap with the membrane and the O-ring.
Info
Clean up overflowed or spilled brake fluid immediately
with water.
13.11 Checking the rear brake linings
Warning
Danger of accidents Worn-out brake linings reduce the braking effect.
– Ensure that worn-out brake linings are replaced immediately. (Your authorized KTM workshop will be
glad to help.)
E00349-10
–
Check the brake linings for minimum thickness
A
.
Minimum thickness
A
≥ 1 mm (≥ 0.04 in)
» If the minimum thickness is less than specified:
– Change the rear brake linings. ( p. 110)
– Check the brake linings for damage and cracking.
» If damage or cracking is visible:
– Change the rear brake linings. ( p. 110)
