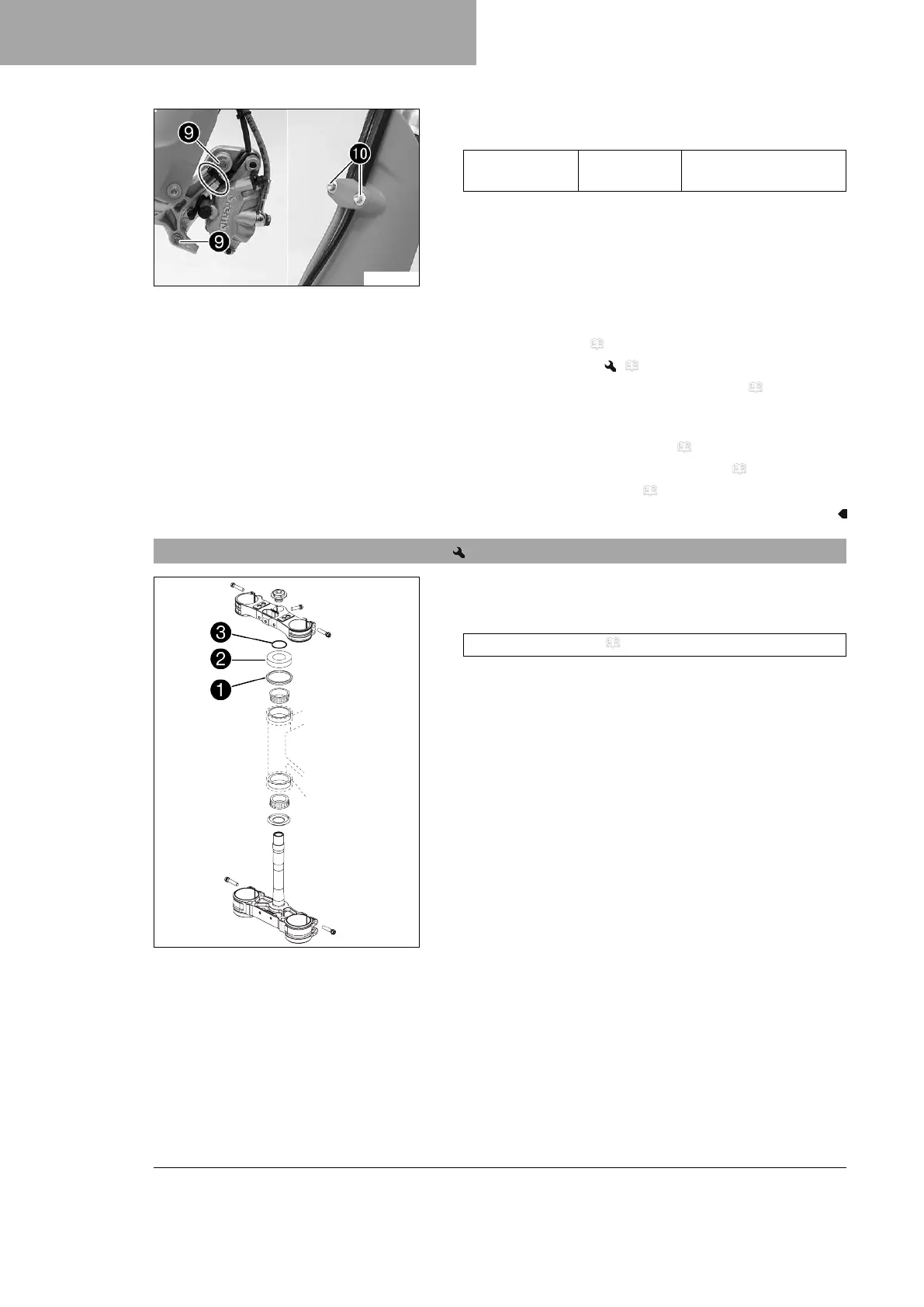

12 SERVICE WORK ON THE CHASSIS
70
V01792-10
–
Position the brake caliper, and mount and tighten screws
9
.
Guideline
Screw, front
brake caliper
M8 25 Nm (18.4 lbf ft)
Loctite
®
243™
– Mount the cable ties.
– Position the brake line, the wiring harness, and the clamp.
Mount and tighten screws
bk
.
Finishing work
– Mount the handlebar cushion.
– Install front fender. ( p. 75)
– Install the front wheel. ( p. 114)
– Install the headlight mask with the headlight. ( p. 126)
– Check that the wiring harness, throttle cables, and brake and
clutch lines can move freely and are routed correctly.
– Check steering head bearing play. ( p. 72)
– Remove the motorcycle from the lift stand. ( p. 63)
– Check the headlight setting. ( p. 127)
12.12 Installing the lower triple clamp (EXC‑F SIX DAYS EU)
B01604-10
Main work
– Clean the bearing and sealing elements, check for damage,
and grease.
High viscosity grease ( p. 166)
– Position the lower triple clamp with the steering stem. Mount
upper steering head bearing.
–
Check whether upper steering head seal
1
is correctly posi-
tioned.
–
Mount protective ring
2
and O-ring
3
.
