ELECTRICAL SYSTEM 15
125
Warning
Fire hazard Incorrect fuses overload the electrical sys-
tem.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
– Insert the spare fuse with the correct rating.
Fuse (75011088010) ( p. 160)
Fuse (75011088005) ( p. 160)
Tip
Put a spare fuse in the fuse box so that it is available if
needed.
– Check the function of the electrical power consumer.
– Close the fuse box cover.
Finishing work
– Mount the seat. ( p. 77)

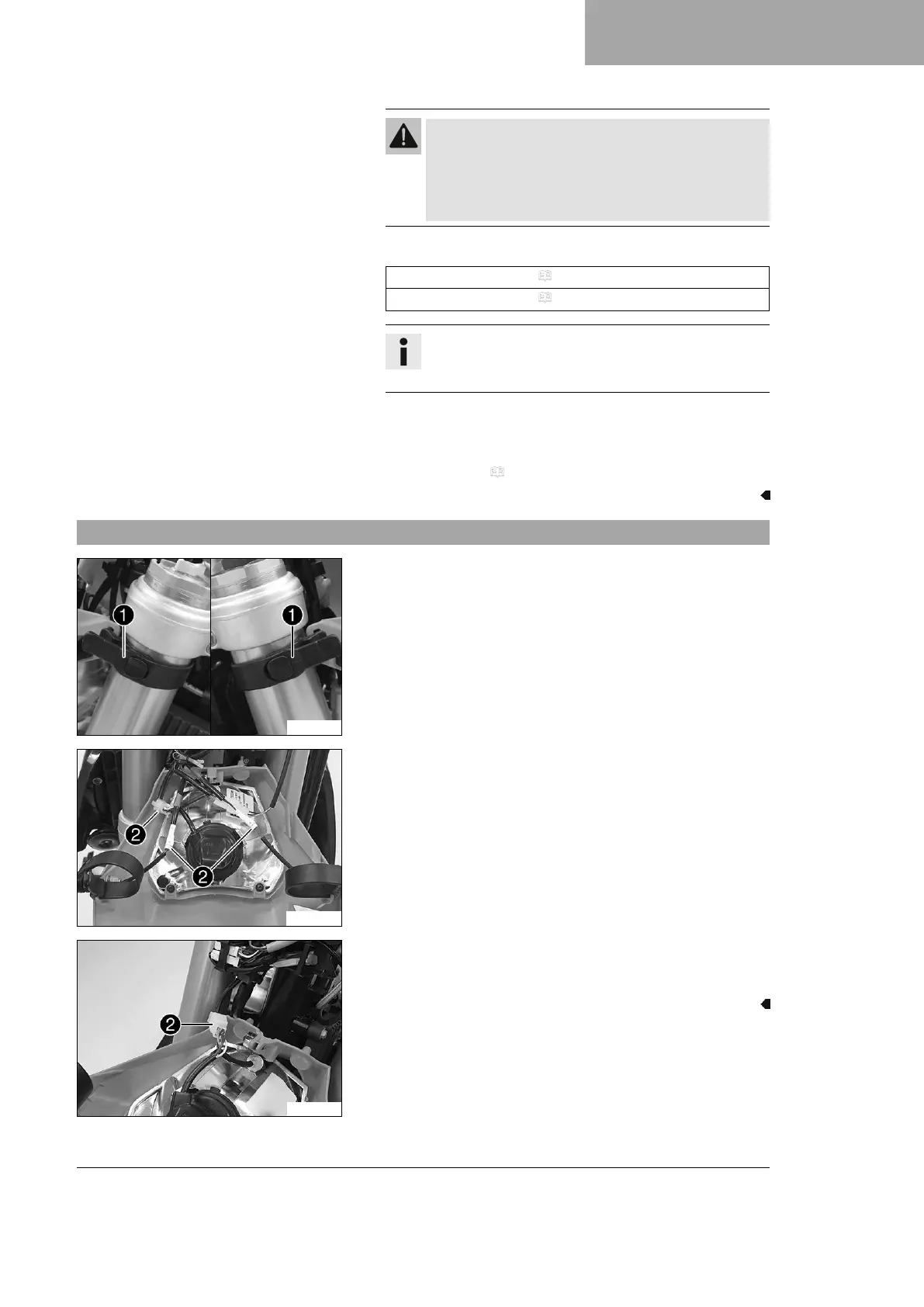

15.6 Removing the headlight mask with the headlight
V01782-10
– Detach the brake line and wiring harness from the headlight
mask.
–
Loosen rubber straps
1
. Slide the headlight mask up and
swing it forward.
S01328-10
(All EU models)
–
Detach plug-in connectors
2
and take off the headlight
mask with the headlight.
V01802-10
(XCF‑W)
–
Disconnect plug-in connector
2
and take off the head-
light mask together with the headlight.
