17 TUNING THE ENGINE
138
102246-10
–
Remove guide plate
4
from handle tube
5
.

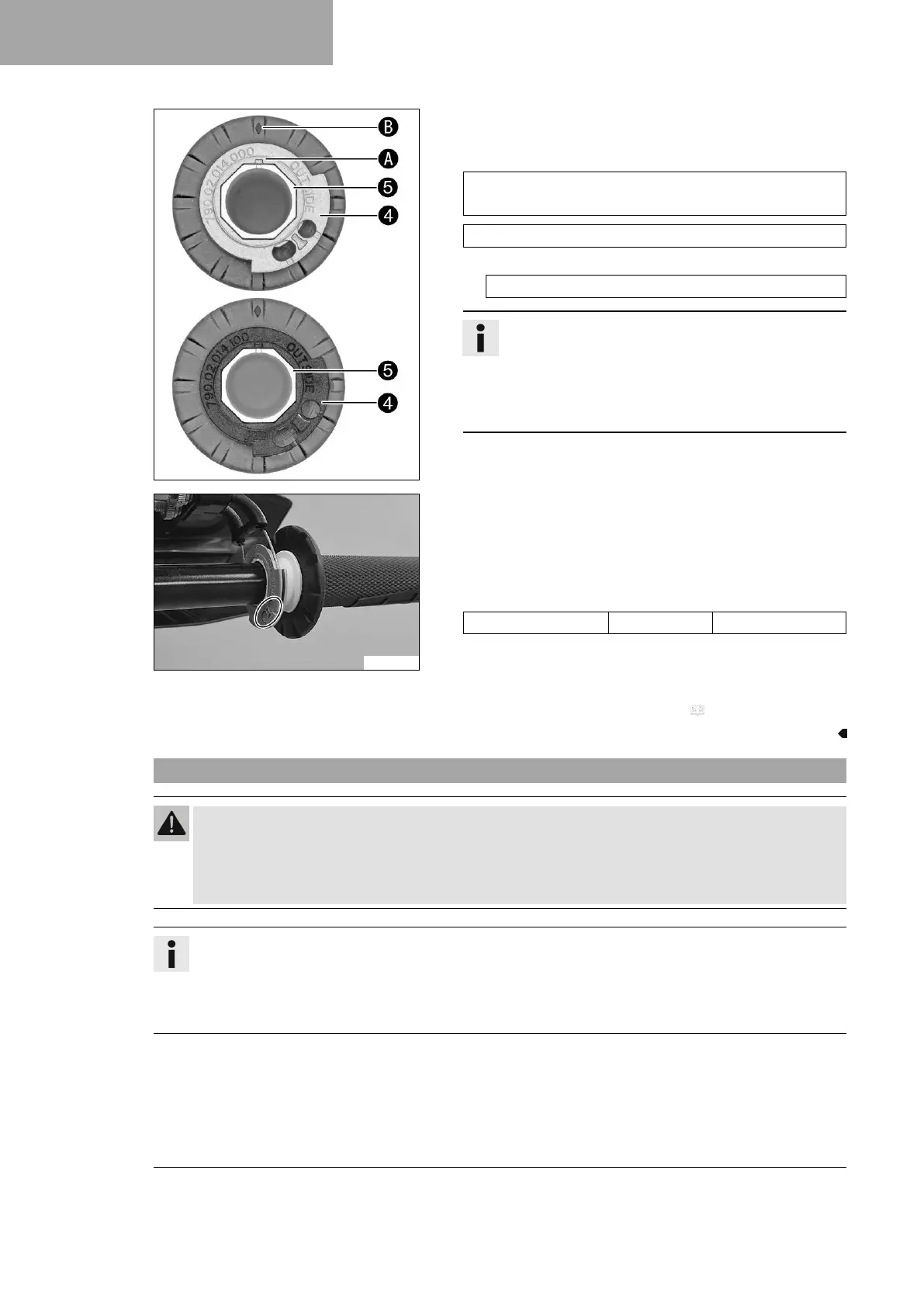

– Position the required guide plate on the grip tube.
Guideline
The label OUTSIDE must be visible. Marking
A
must be
positioned at marking
B
.
Grey guide plate (79002014000)
Alternative 1
Black guide plate (79002014100)
Info
The gray guide plate opens the throttle valve more
slowly.
The black guide plate opens the throttle valve more
quickly.
The gray guide plate is mounted upon delivery.
V01803-10
– Clean the outside of the handlebar and the inside of the grip
tube. Mount the grip tube on the handlebar.
– Attach the throttle cables to the guide plate and route cor-
rectly.
–
Position half-shells
3
, mount and tighten screws
2
.
Guideline
Screw, throttle grip M6 5 Nm (3.7 lbf ft)
–
Slide on sleeve
1
and check the throttle grip for ease of
movement.
Finishing work
– Check the play in the throttle cable. ( p. 136)
17.4 Changing the mapping (EXC-F SIX DAYS, XCF-W)
Warning
Voiding of the government approval for road use and the insurance coverage If the combination switch is
mounted, the vehicle’s road permit, if any, expires.
– Only operate the vehicle in closed-off areas remote from public road traffic if the combination switch
is installed.
Info
The desired engine characteristic can be activated via the MAP button on the combination switch.
The setting most recently selected is activated again when restarting.
The traction control can also be activated in each mapping using the TC button.
The mapping can also be changed during the ride.
