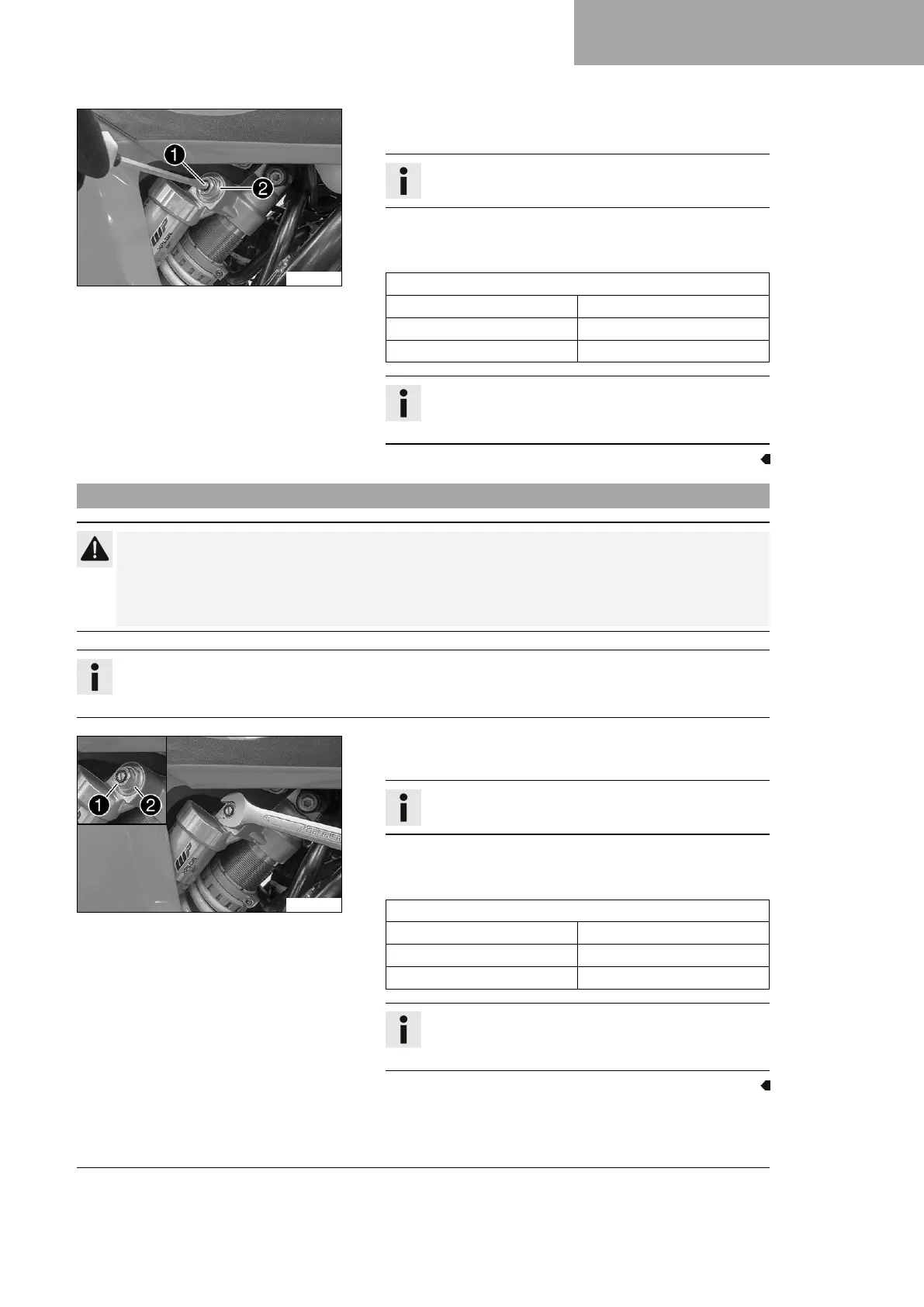

KTM 450 XCF-W 2023 User Manual

TUNING THE CHASSIS 11
53
K01335-10
–
Turn adjusting screw
1
clockwise with a screwdriver as far as
the last perceptible click.
Info
Do not loosen fitting
2
!
– Turn counterclockwise by the number of clicks corresponding
to the shock absorber type.
Guideline
Low-speed compression damping
Comfort 18 clicks
Standard 15 clicks
Sport 12 clicks
Info
Turn clockwise to increase damping; turn counterclock-
wise to reduce damping.
11.4 Adjusting the high-speed compression damping of the shock absorber
Caution
Risk of injury Parts of the shock absorber will move around if the shock absorber is detached incorrectly.
The shock absorber is filled with highly compressed nitrogen.
– Please follow the description provided. (Your authorized KTM workshop will be glad to help.)
Info
The effect of the high speed compression adjuster can be seen in the fast compression of the shock
absorber.
K01341-10
–
Using an open end wrench, turn adjusting screw
1
clockwise
all the way.
Info
Do not loosen fitting
2
!
– Turn counterclockwise by the number of turns corresponding
to the shock absorber type.
Guideline
High-speed compression damping
Comfort 2.5 turns
Standard 2 turns
Sport 1 turn
Info
Turn clockwise to increase damping; turn counterclock-
wise to reduce damping during compression.

KTM 450 XCF-W 2023 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	449.9 cc
Bore x Stroke	95 mm x 63.4 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP XPLOR PDS shock absorber
Seat Height	960 mm
Fuel Tank Capacity	8.5 liters
ABS	No
Ground Clearance	370 mm
Fuel System	Keihin EFI
Frame	Central Tube Frame, Chrome Moly Steel
Front Brake	Disc brake 260 mm
Rear Brake	Disc brake 220 mm
