ELECTRICAL SYSTEM 15
121
V01780-10

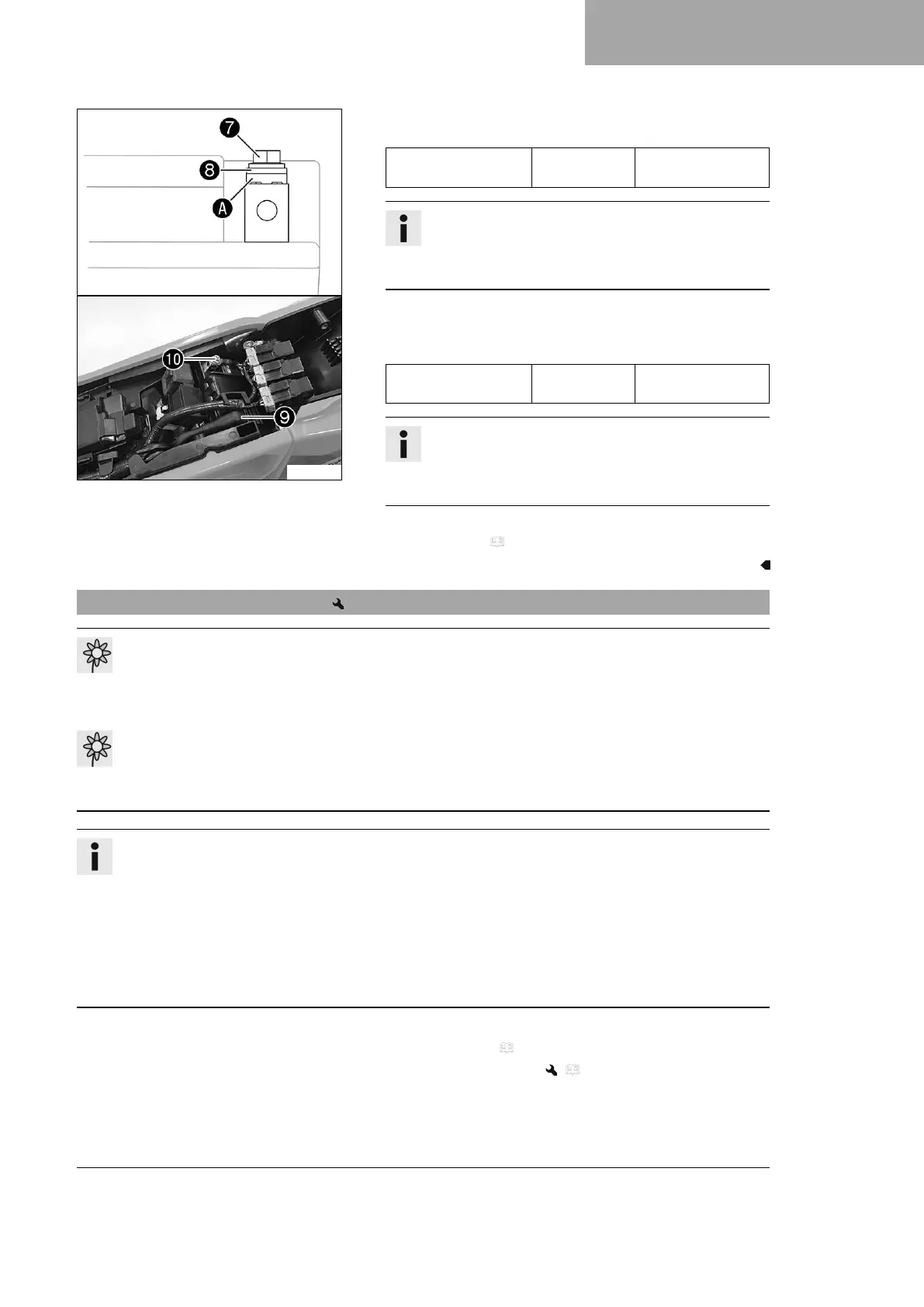

– Connect the positive cable to the 12-V battery.
Guideline
Screw, battery termi-
nal
M5 2.5 Nm
(1.84 lbf ft)
Info
Contact disk
A
must be mounted under screw
7
and
cable lug
8
with the claws toward the battery termi-
nal.
–
Slide positive terminal cover
9
over the positive terminal.
–
Connect negative cable
bk
to the 12-V battery.
Guideline
Screw, battery termi-
nal
M5 2.5 Nm
(1.84 lbf ft)
Info
Contact disk
A
must be mounted under screw
7
and
cable lug
8
with the claws toward the battery termi-
nal.
Finishing work
– Mount the seat. ( p. 77)
15.3 Charging the 12-V battery
Note
Environmental hazard 12 V batteries contain environmentally hazardous materials.
– Do not dispose of 12 V batteries as household waste.
– Dispose of 12 V batteries at a collection point for used batteries.
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with
the applicable regulations.
Info
Even if there is no load on the 12-V battery, it discharges each day.
The charging level and the method of charging are very important for the service life of the 12-V battery.
Rapid recharging with a high charging current shortens the service life of the battery.
If the charging current, charging voltage, or charging time is exceeded, the 12 V battery will be destroyed.
If the 12-V battery is depleted by repeated starting, the 12-V battery must be charged immediately.
If the 12-V battery is left in a discharged state for an extended period, it will become deeply discharged
and suffer a loss of capacity, destroying the battery.
The 12-V battery is maintenance-free.
Preparatory work
– Remove the seat. ( p. 77)
– Remove the 12-V battery. ( p. 119)
