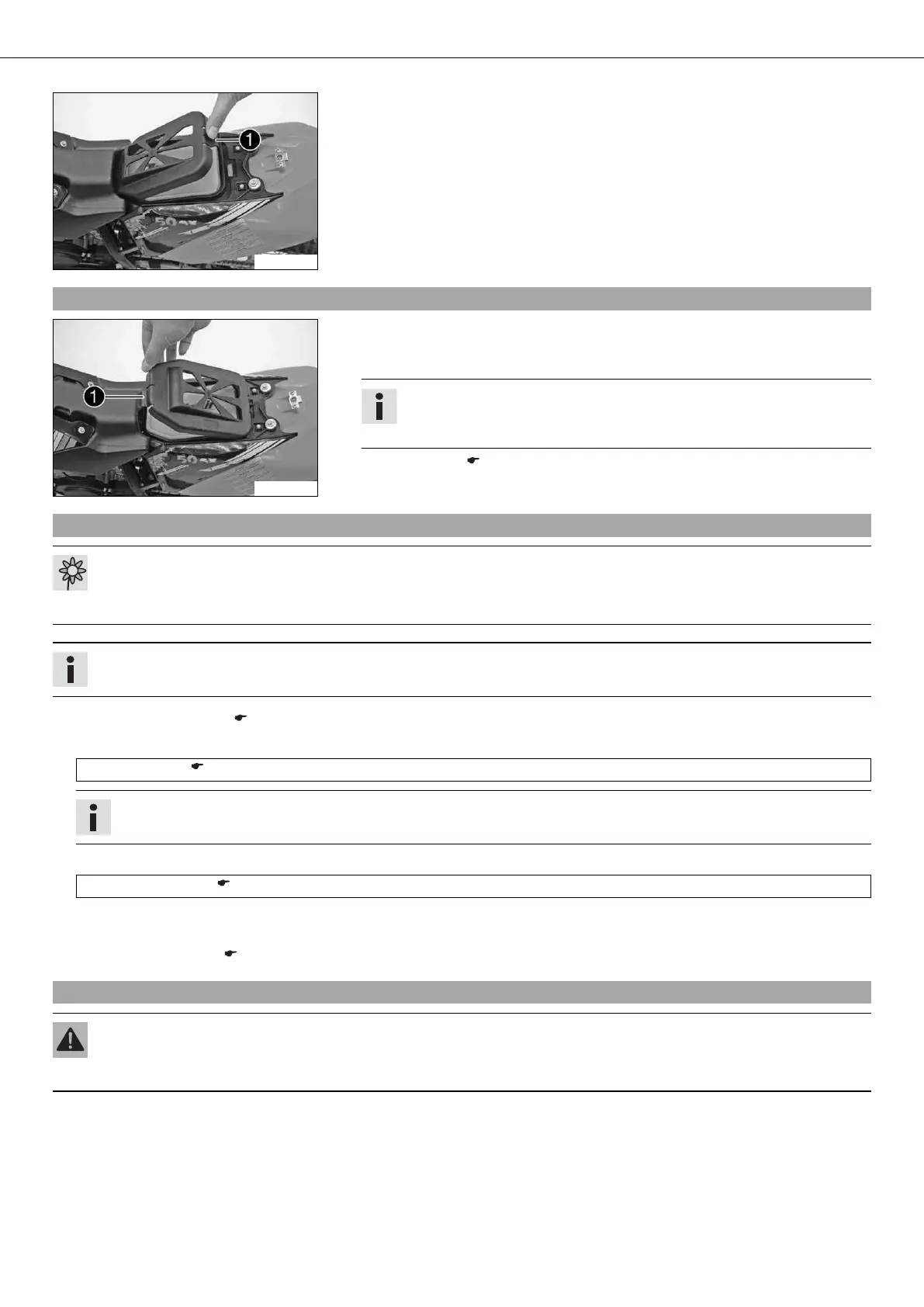

MAINTENANCE WORK ON THE CHASSIS 34
700504-01
– Press the rear holding lugs together slightly and swing the air filer cover upward.
Pull out the front holding lug and take off the air filter cover.
– Take off the air filter.
10.20Installing the air filter x
700505-01
– Position the clean air filter.
– Position the rear holding lug. Lower the air filter cover and allow the front holding
lug to snap in.
Info
If the air filter is not correctly mounted, dust and dirt can penetrate into the
engine and can cause damage.
– Mount the seat. ( p. 33)
10.21Cleaning the air filter and air filter box x
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Do not clean the air filter with fuel or petroleum since these substances attack the foam.
–
Remove the air filter. x ( p. 33)
– Wash the air filter thoroughly in special cleaning liquid and allow it to dry properly.
Air filter cleaner ( p. 82)
Info
Only press the air filter to dry it, never wring it out.
– Oil the dry air filter with a high/quality filter oil.
Oil for foam air filter ( p. 82)
– Clean the air filter box.
– Check carburetor connection boot for damage and tightness.
–
Install the air filter. x ( p. 34)
10.22Removing main silencer
Warning
Danger of burns The exhaust system gets very hot when the vehicle is driven.
– Allow the exhaust system to cool down. Do not touch hot components.
