KTM 50 SX Mini User Manual

TUNING THE ENGINE 61

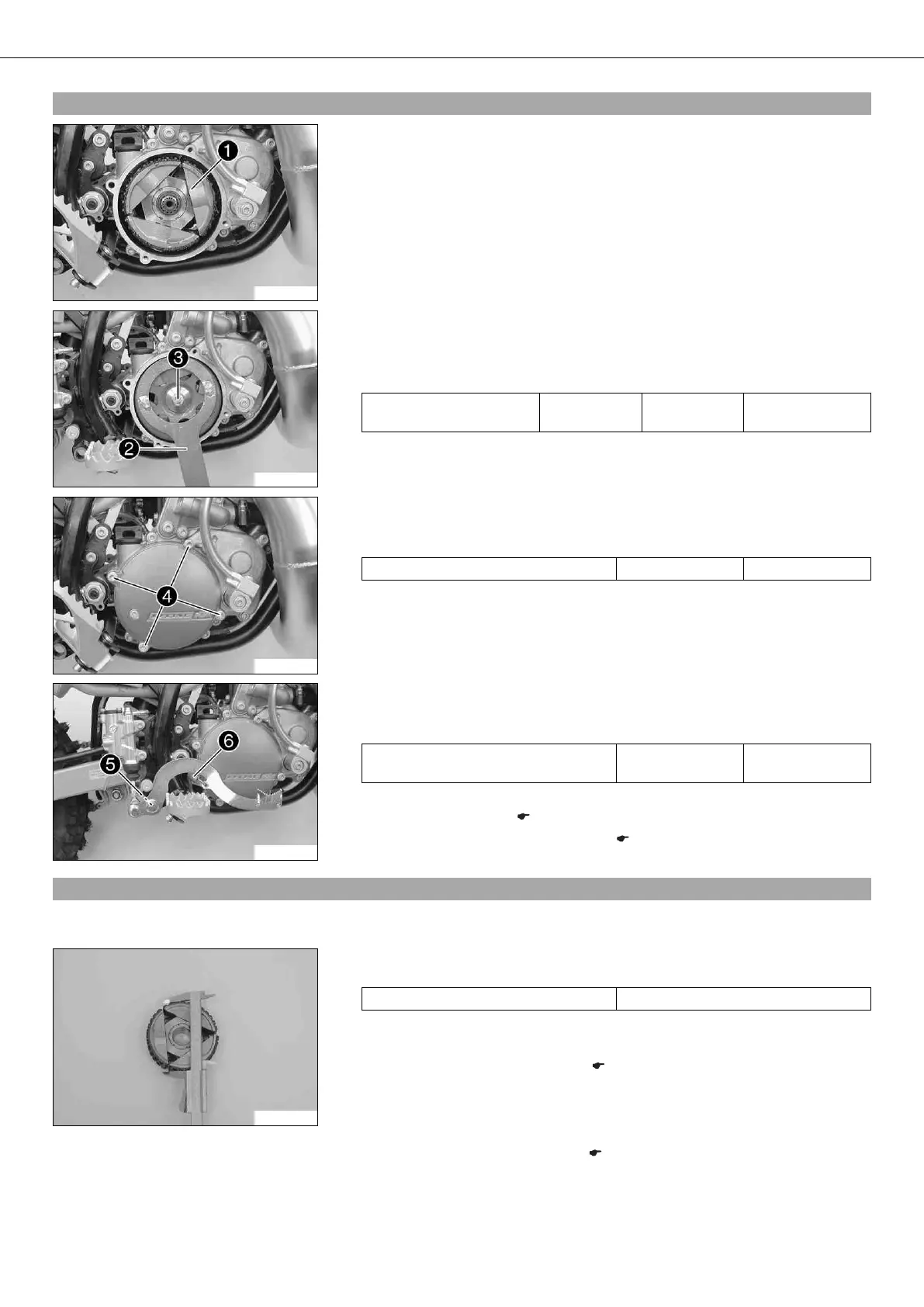

14.10Installing the centrifugal force clutch x
300657-11
– Position the centrifugal force clutch .
300656-11
– Position the clutch drum.
– Hold the clutch drum with special tool .
– Mount and tighten screw .
Guideline
Screw, clutch drum M8 30 Nm
(22.1 lbf ft)
Loctite
®
243™
300655-11
– Position the clutch cover with the gasket.
– Mount and tighten screws .
Guideline
Screw, clutch cover M6 10 Nm (7.4 lbf ft)
300654-11
– Position the foot brake lever.
– Mount and tighten nut .
Guideline
Remaining nuts, chassis M8 30 Nm
(22.1 lbf ft)
– Mount spring .
– Check the gear oil level. ( p. 65)
–
Check the clutch engagement speed. x ( p. 59)
14.11Checking the centrifugal force clutch x
Condition
The centrifugal clutch has been removed.
300610-10
– Measure the centrifugal force clutch.
Guideline
Clutch shoe height ≥ 98.00 mm (≥ 3.8583 in)
» If the specified value is not reached:
– Replace the clutch linings.
–
Dismantle the centrifugal clutch. x ( p. 62)
– Check clutch linings for damage.
» If the clutch linings are damaged:
– Replace the clutch linings.
–
Assemble the centrifugal clutch. x ( p. 62)
