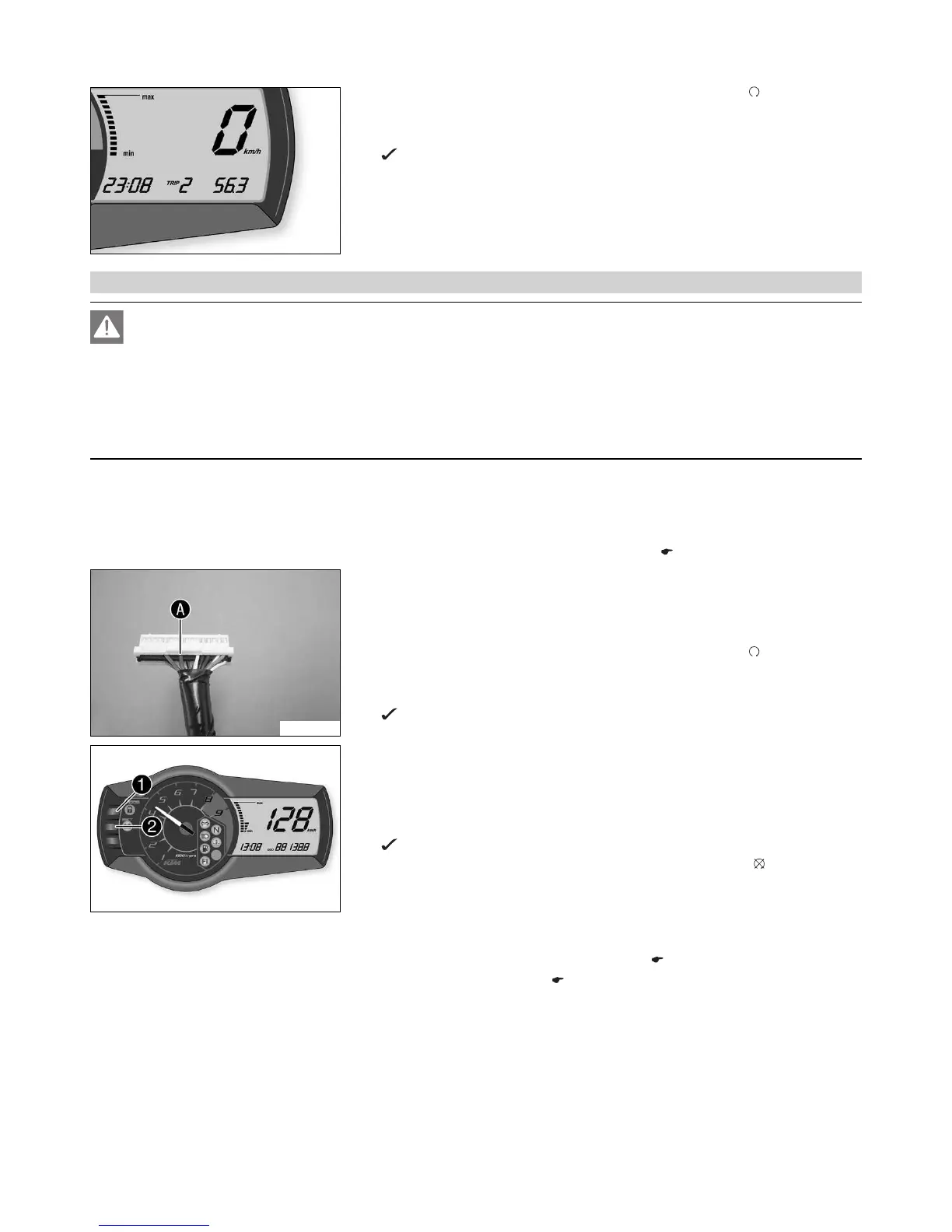

16 LIGHTING SYSTEM, INSTRUMENTS 99
400841-01
– Switch on the ignition by turning the ignition key to position ON .
– Press the MODE button repeatedly until the TRIP 2 mode is active.
– Keep the SET button pressed.
The TRIP 2 display is set to 0.0.
16.1.5 Setting the wheel circumference
Danger
Voiding of the government approval for road use and the insurance coverage The vehicle is only authorized for operation on pub-
lic roads in the homologated version.
– If the vehicle is modified in any way, it may only be used on designated tracks away from public roads. Advise the vehicle
owner and rider of this.
– If you undertake any modifications, please insist on receiving a signed workshop order from your customer in which you
inform the customer in writing that these modifications are performed at the customer's own risk and that the vehicle will
no longer be approved for use on public roads once modified.
Condition
The motorcycle is stationary.
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the headlight mask with the headlight. ( p. 100)
302064-10
Main work
– Unplug connector ED from the combination instrument.
– Unlock pin 18 A and remove it from connector ED.
– Plug connector ED into the combination instrument.
– Switch on the ignition by turning the ignition key to position ON .
– Press the MODE button repeatedly until the TRIP 1 display mode is active.
– Press and hold the MODE button for 10 seconds.
The wheel circumference is displayed in millimeters.
202058-10
Increasing the wheel circumference
– Press the MODE button 1.
Reducing the wheel circumference
– Press the SET button 2.
– Keep the MODE button and the SET button pressed simultaneously.
The settings are saved and the Setup menu is closed.
– Switch off the ignition by turning the ignition key to position OFF .
– Unplug connector ED from the combination instrument.
– Connect pin 18 to connector ED.
– Plug connector ED into the combination instrument.
Finishing work
– Install the headlight mask with the headlight. ( p. 101)
– Check the headlight setting. ( p. 100)
