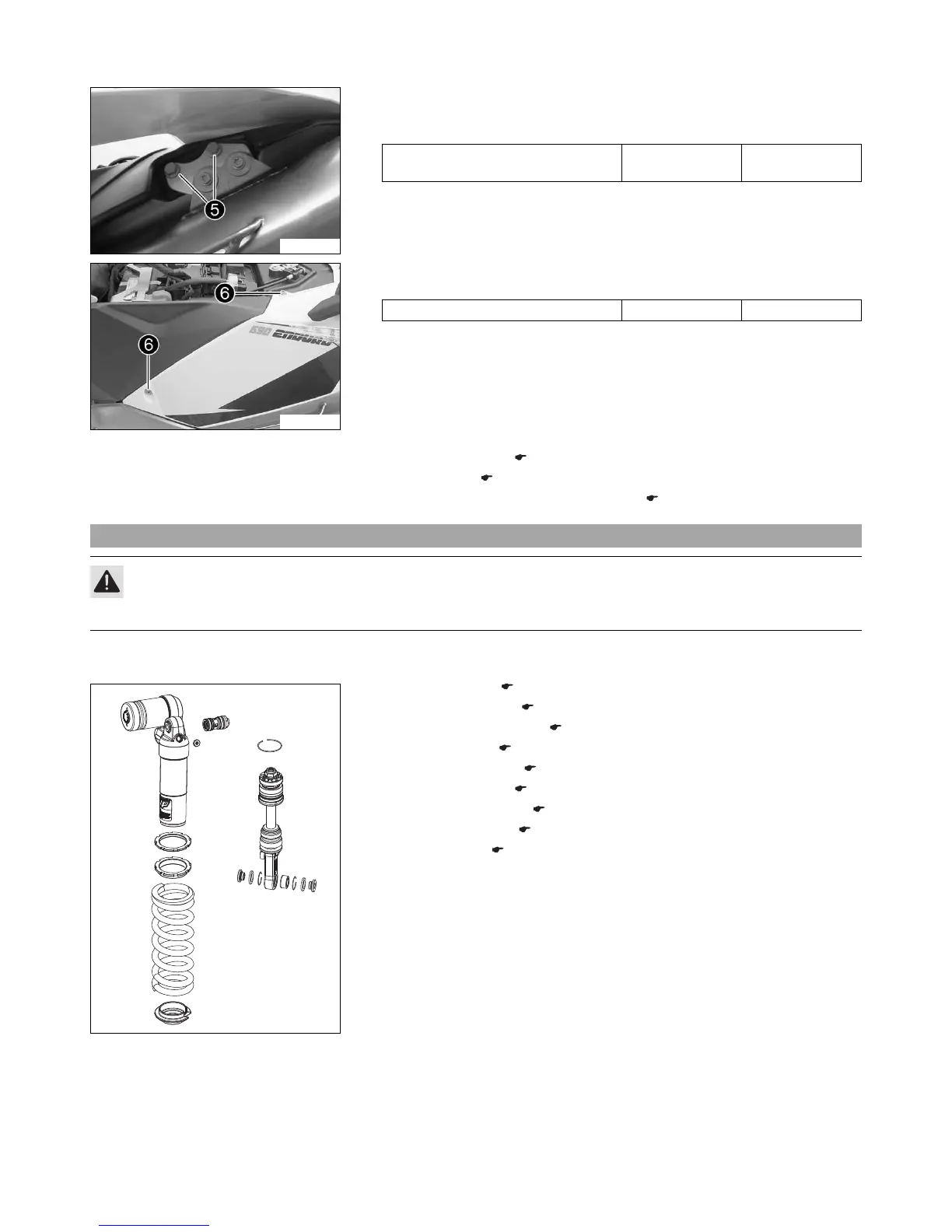

9 SHOCK ABSORBER, SWINGARM 42
202037-13
– Lift the rear fairing.
– Mount and tighten screws 5.
Guideline
Screw, main silencer holder on fuel
tank
M8 25 Nm
(18.4 lbf ft)
202036-13
– Mount and tighten screws 6.
Guideline
Screw, side cover M6 5 Nm (3.7 lbf ft)
Finishing work
– Mount the side cover. ( p. 63)
– Mount the seat. ( p. 63)
– Remove the motorcycle from the work stand. ( p. 11)
9.11 Servicing the shock absorber
Caution
Danger of accidents Disassembly of pressurized parts can lead to injury.
– The shock absorber is filled with high density nitrogen. Adhere to the description provided.
Condition
The shock absorber has been removed.
201289-01
– Remove the spring. ( p. 43)
– Dismantle the damper. ( p. 43)
– Disassemble the piston rod. ( p. 44)
– Check the damper. ( p. 45)
– Remove the heim joint. ( p. 46)
– Install the heim joint. ( p. 47)
– Assemble the piston rod. ( p. 48)
– Assemble the damper. ( p. 49)
– Install the spring. ( p. 54)
